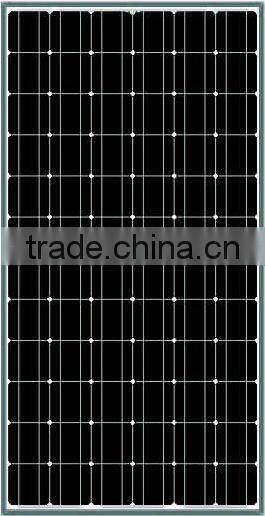

36V Monocrystalline Solar Panel (170W~200W)
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2008
Factory Size:
30,000-50,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
150WSolar Poly 18V, Poly Crystalline, Flexibile Dimension is Acceptable, Ningbo Ring Solar CO., LTDNegotiableMOQ: 200 Pieces -
230W Poly Solar PanelNegotiableMOQ: 10 Pieces
-
240W Poly Solar PanelNegotiableMOQ: 10 Pieces
-
90W Poly Solar PanelNegotiableMOQ: 10 Pieces
-
185W POLY Solar PanelNegotiableMOQ: 10 Pieces
PRODUCT OVERVIEW
- RING's modules are optimally manufactured and adjusted to meet the needs of the current market;scientifically designed module dimension makes the installation simple and easy.
- Our continuous efforts in quality assurance and customer requirements guarantee a long life-time and high earnings.
MODULE CHARACTERISTICS
- High efficiency crystalline silicon solar cells.
- High transmission low iron tempered glass, strong mechanical resistance.
- Standard waterproof junction box, with bypass diode.
- High endurance to different atrocious weather.
- Custom designed modules according to clients' requirement.
PERFORMANCE GUARANTEE
We give a power guarantee of 90% of norminal power output for 10 years and 80% for 25 years.
ELECTRONICAL DATA:
| Type | RLM170M | RLM175M | RLM180M | RLM185M | RLM190M | RLM195M | RLM200M |
| Max-Power Pm (W) | 170 | 175 | 180 | 185 | 190 | 195 | 200 |
| Module Power Range (W) | 175>Pm ≥170 |
180>Pm ≥175 |
185>Pm≥180 | 190>Pm ≥185 |
195>Pm ≥190 |
200>Pm ≥195 |
Pm ≥200 |
| Power Tolerance (W) | +0-+5 | +0-+5 | +0-+5 | +0-+5 | +0-+5 | +0-+5 | +0-+5 |
| Max-Power Voltage Vm(V) | 35.6 | 35.8 | 36.1 | 36.4 | 36.6 | 37.0 | 37.4 |
| Max-Power Current Im(A) | 4.78 | 4.89 | 4.99 | 5.09 | 5.19 | 5.27 | 5.35 |
| Short-Circuit Current Isc(A) | 5.12 | 5.23 | 5.34 | 5.46 | 5.52 | 5.62 | 5.71 |
| Open-Circuit Vlotage Voc(V) | 44.1 | 44.2 | 44.4 | 44.4 | 44.6 | 44.8 | 45.1 |
| Max-System Voltage (VDC) | 1000V | (IEC) | 600V | (UL) | |||
| Cell Efficiency(%) | 16.0/15.3 | 16.4/15.8 | 16.9/16.2 | 17.4/16.7 | 17.8/17.1 | 18.3/17.5 | 18.8/18.0 |
| Module Efficeiency(%) | 13.3 | 13.7 | 14.1 | 14.5 | 14.9 | 15.3 | 15.7 |

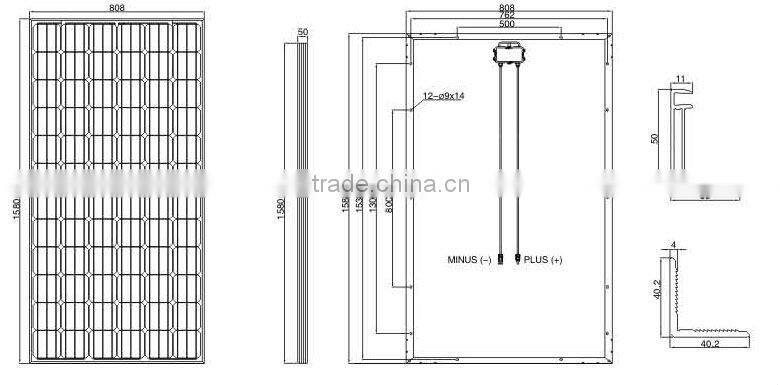

Design Paper:
