High Efficiency Low Price Chinese18V70W Poly Solar Panel Ningbo Ring Electronics Co., Ltd

High Efficiency Low Price Chinese18V70W Poly Solar Panel Ningbo Ring Electronics Co., Ltd photo-1

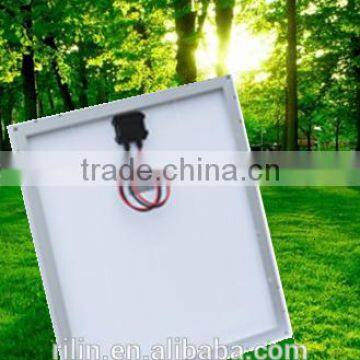

High Efficiency Low Price Chinese18V70W Poly Solar Panel Ningbo Ring Electronics Co., Ltd photo-2
US$ 0.48 - 0.52 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RING SOLAR
Model Number:
RL-P070/18
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name RING SOLAR
Model Number RL-P070/18
Material Polycrystalline Silicon
Size 775*676*35
Number of Cells 36
Max. Power 70W

1. Product Specification

Place of Origin

Zhejiang China (Mainland)

Material

Poly-crystalline Silicon

Brand Name

RING SOLAR

Cell Size

156*156

Model Number

RL-P070/18

Module Power (w)

70W

Module Dimension (mm)

775*676*35



2. Electrical Data

Model Number

RL-P070/18

Rated Maximum Power (w)

70

Maximum Power Voltage (V)

17.8

Maximum Power Current (A)

3.93

Open Circuit Voltage (V)

22.1

Short Circuit Current (A)

4.22

Power Tolerance (%)

±3

Module Efficiency (%)

13.5



3. Mechanical Parameter

Module Dimension (mm)

775*676*35

Packaging (pcs/carton)

5

Carton Volume (m3/carton)

0.11



4. Limits

Operating temperature

-40°c--- + 85°c

 Maximum system voltage

715V DC

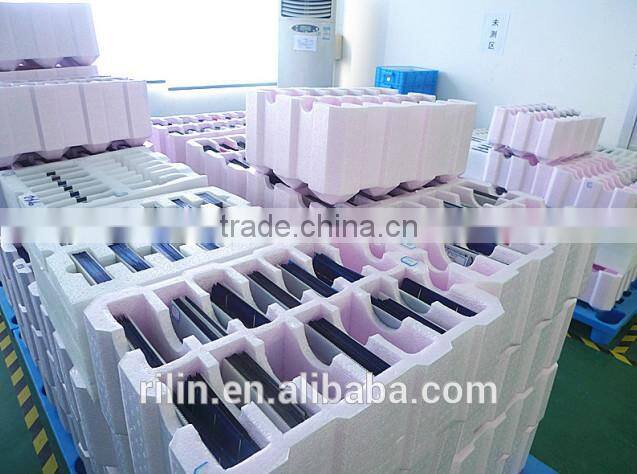

5. Packaging & Delivery

Packaging Detail:

CTN/wooden box

Delivery Detail:

Normally, about 15days after receive the down payment, meanwhile take the order quantity into consideration.



6. Temperature Coefficient

Current temperature coefficient

%/°C

0.065±0.015

Voltage temperature coefficient

mV/°C

-(2.23±0.1)

Power temperature coefficient

%/°C

-(0.5±0.05)



7. Guarantee Data

Guaranteed power output

10 years:90% of its nominal power
25 years: 80% of its nominal power

Standard conditions: AM1.5 Irradiation 1000W/m²;25°c

Warranty

3 years for material warranty



20 years for performance warranty



8. FAQ



1. Q: Are you a factory or trading company?



A: We are a factory.



2. Q: Where is your factory located? How can I visit there?



A: Our factory is located in Ningbo, Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!



3. Q: Does the size can be adjusted according to our request?



A: Yes, please tell us the detail of size and using, then we will design a specific production for you.



4. Q: Can the price be cheaper?



A: Of course, you will be offered a good discount for big amount.

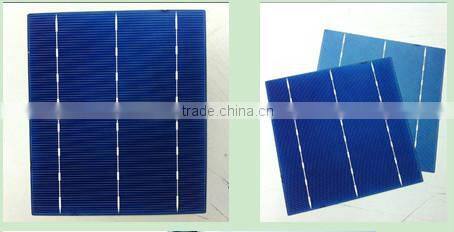

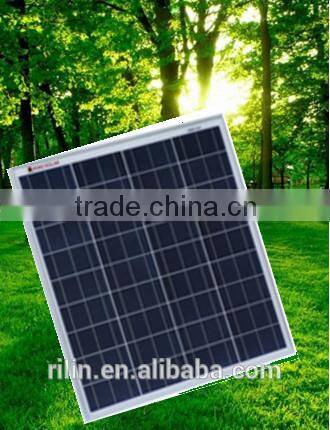

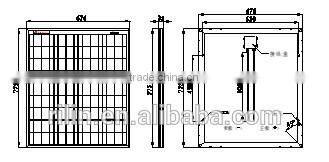

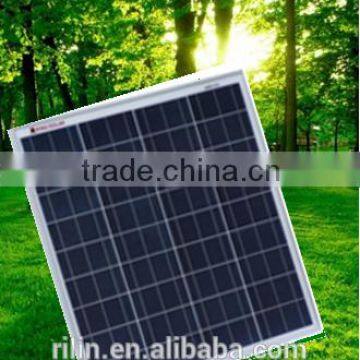

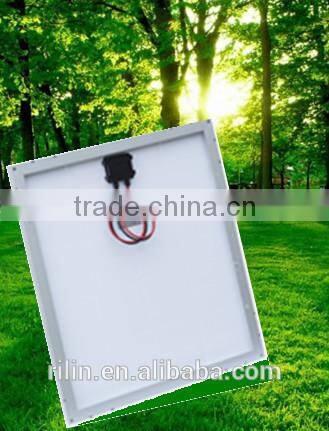

9. Picture & Drawing



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltdhigh efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltdhigh efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd

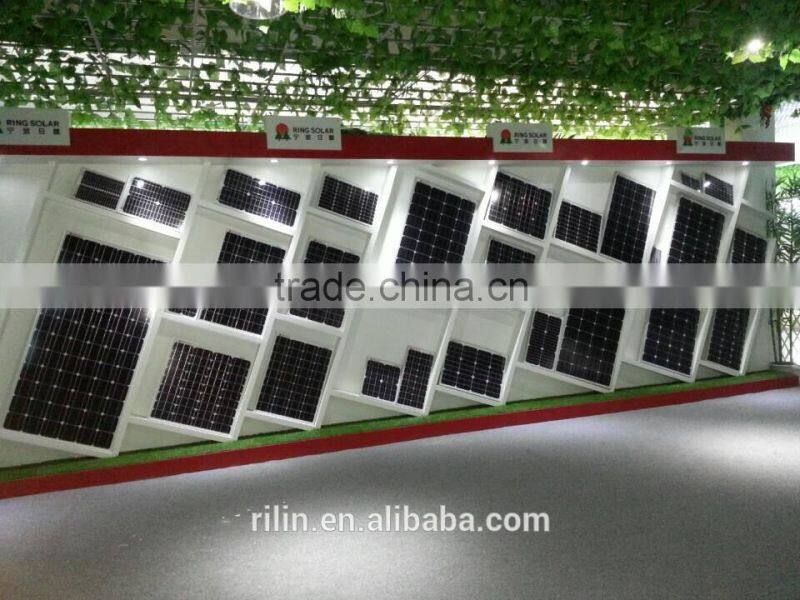

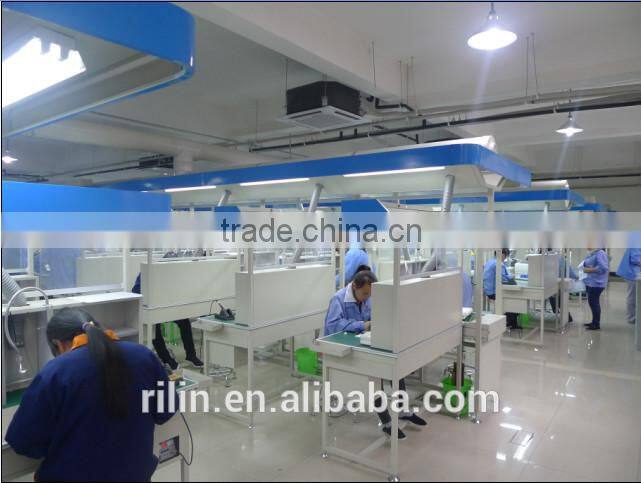

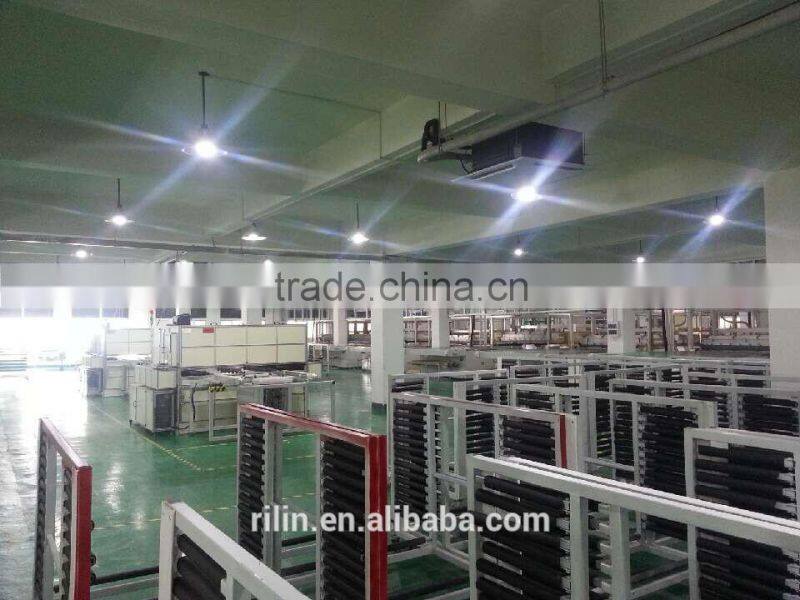

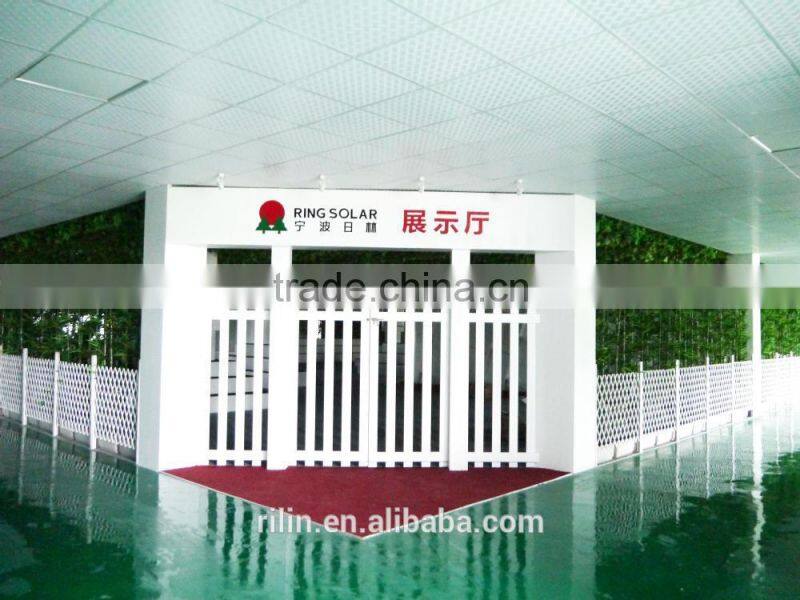

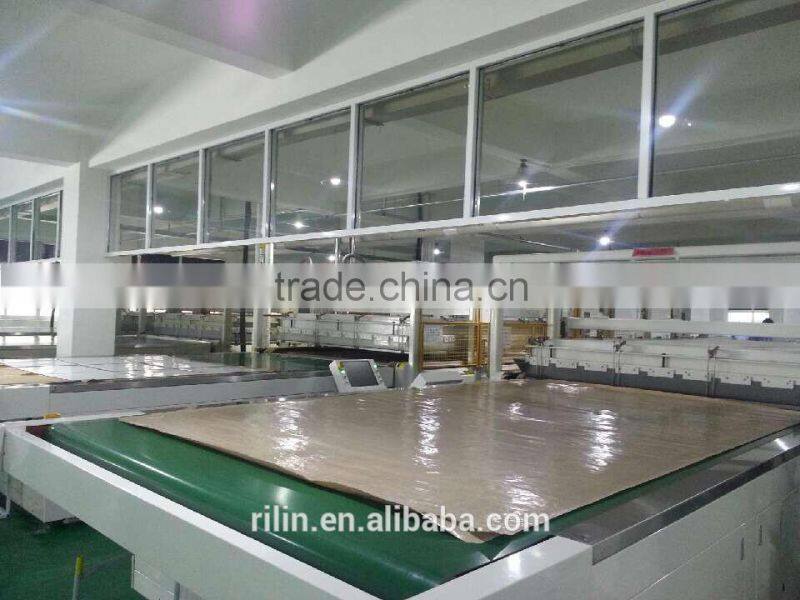

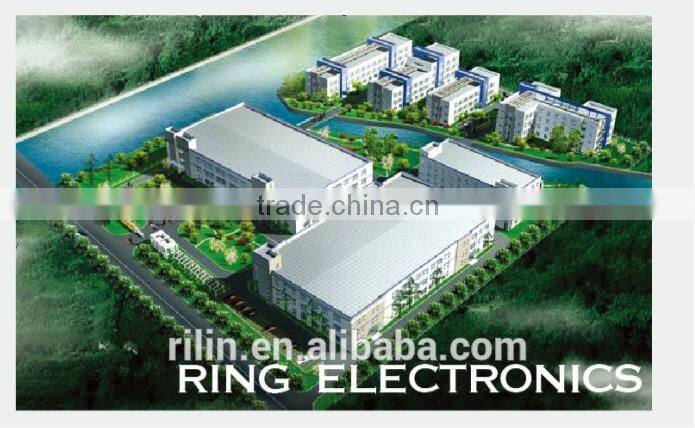

10. Company Info



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd





high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd











































high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd



high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltdhigh efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltdhigh efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd



 high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd

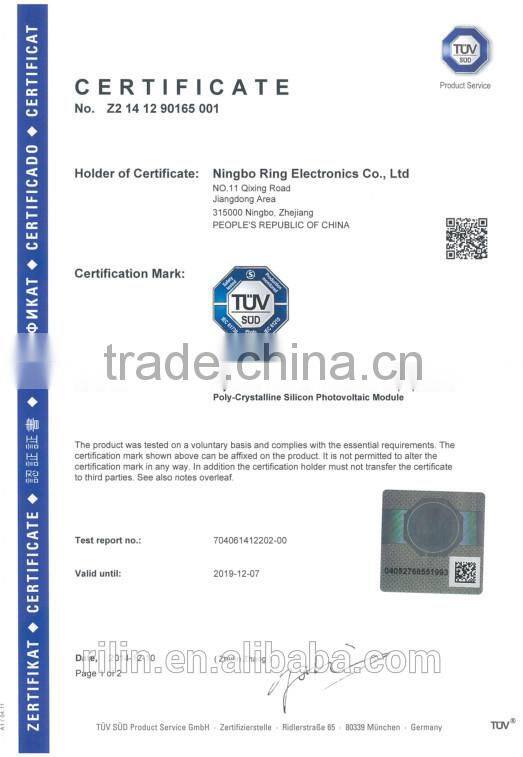

11. Certificate







high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd

high efficiency low price Chinese18V70W poly solar panel Ningbo Ring Electronics Co., Ltd





There are more solar panels for your reference: ( Mono/ Poly )



10W / 15W / 25W / 30W / 35 W / 40W / 45W / 50W / 55W / 60W / 65W / 70W / 75W / 80W / 85W / 90W / 100W / 120W - 140W / 145W - 175W / 170W - 200W / 190W - 225W / 215W - 265W / 260W - 320W
