Help Center155W Poly Solar Panel18V, Ningbo Ring Solar CO., LTD
Related Products
1. Feature:
1) High module conversion efficiency, through superior manufacturing technology.
2) 0 to +5W positive tolerance for mainstream products.
3) Certified to withstand high wind loads and snow loads.
4) Anti-reflective, highly transparent, low iron tempered glass.
5) Excellent performance under low light environment.
2. Electrical Characteristics:
Model Number |
Unit |
RL-P155/18 |
Solar Cell |
mm |
156*156 |
Number or Cell |
pcs |
4*9 |
Size of Module |
mm |
1640*676*35 |
Rated Maximum Power(Pmax) |
W |
155 |
Maximum Power Voltage(Vmp) |
V |
18.0 |
Maximum Power Current(Imp) |
A |
8.76 |
Open Circuit Voltage(Voc) |
V |
22.2 |
Short Circuit Current(ISC) |
A |
9.39 |
Power Tolerance |
% |
+/-3 |
Module Efficiency |
% |
17 |
Operating Temperature |
°C |
-40~ +85 |
NOCT |
°C |
45+/-2 |

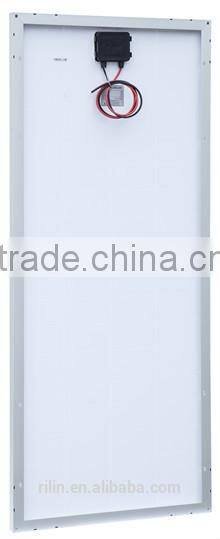

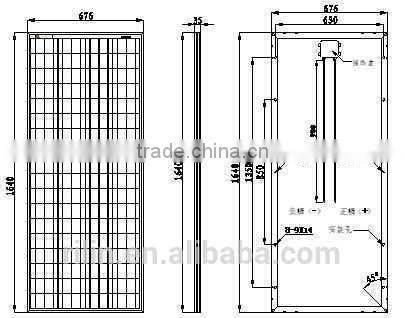

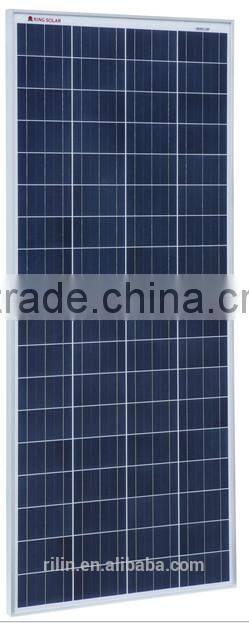

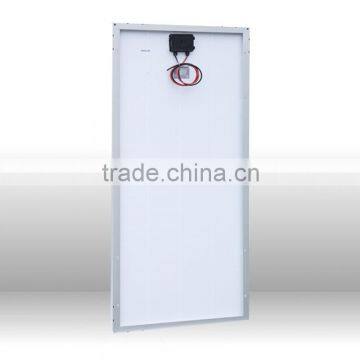

3. Product Details:

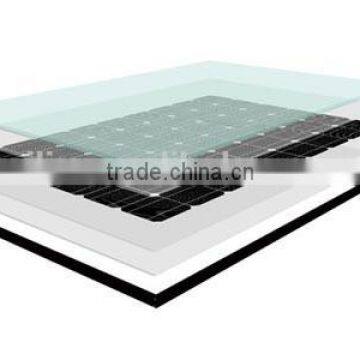

4. Materials of solar panel :
1) Solar cell------conversion efficency of solar cells: 17%-24%
2) Front glass------3.2mm, high transmission, low iron, tempered glass
3) EVA------excellent anti-aging EVA
4) TPT-------TPT hot seal made of flame resistance.
5) Frame------reinfored anodixed alumium frame.
6) Junction box------Ip65 rated, high quality, with diode protection.
5. Company Imformation:
Ningbo Ring Solar Electronics CO,.Ltd, known as Ring Solar, is a high-tech company specialized in researching, developing, manufacturing and selling PV products. Established in March 2008, Ring Solar now already has the annual module production capacity of more than 400MW
6. Quality Certification:
7. Payment Terms:
Trade terms |
EXW,FOB,CNF(CFR),CIF |
||
|
Payment terms
|
TT |
30% in advance production, remains 70% before shipment |
|
LC |
LC amount below US$30,000.00 ,We need charge US $500.00 for LC fee. |
||
DP |
DP at sight: We need charge 1.1% interests based on contract amount. |
||
Delivery time |
15 days for container quantity |
||
8. Solar panel applications:
1) Any large or small on-grid or off-grid solar power stations.
2) Commercial and industrial building roof-top systems
3) Residential roof-top systems
4) Any commercial or industrial ground mounting systems
5) Solar lights, highway solar street lamp, solar car / electric vehicles, any field of environmental protection.
9. Solar panel quality and warranty:
1) We can supply the solar panel from 5W to more than 300W.
2) Warranty: 3-5 Years products warranty, and 90% of its nominal power after 10 years, 80% of its nominal power after 25 years
3) We do OEM or ODM .
