High Strength ASTM F136 Titanium Bar Grade 5 EIL
Item Name |
Titanium Bar Grade 5 EIL |
|
Grade |
Gr1, Gr2, Gr4, Gr5, Ti-6AL4V ELI, Gr7, Gr9, Gr12 |
|
Specification(mm) |
Dia |
Length |
6.0-14 |
3000 |
|
15-60 |
6000 |
|
61-200 |
4000 |
|
Standard |
ASTM B348, ASTM F136, ASTM F67,AMS4928 |
|
Application |
Offshore, chemical processing, medical instruments, etc |
|
Tensile requirements:
Grade |
Tensile strength(min) |
Yield strength(min) |
Elongation(%) |
||
ksi |
MPa |
ksi |
MPa |
||
1 |
35 |
240 |
20 |
138 |
24 |
2 |
50 |
345 |
40 |
275 |
20 |
5 |
130 |
895 |
120 |
828 |
10 |
7 |
50 |
345 |
40 |
275 |
20 |
9 |
90 |
620 |
70 |
438 |
15 |
12 |
70 |
438 |
50 |
345 |
18 |
Chemical requirement:
| element | N | C | H | Fe | O | Al | V | Ti |
| composition≤% | 0.05 | 0.08 | 0.012 | 0.25 | 0.13 | 5.5~6.5 | 3.5~4.5 | Blance |
Quality guarantee:
(1)Main quality indicators: titanium substrate, precious metal ratio, accelerated life,
coating binding force to the titanium substrate;
(2)With advanced technology & equipment, abundant experiences and skilled workers,
during the production of Titanium Anode, each process must be strictly supervised
and tested, including the surface treatment of titanium material, coating quality, coating
evenness, coating binding force to the titanium substrate and so on;
(3)We have own R&D, Production and Sales department, we always struggling to supply
the product with the most excellent quality and the most favorable price and supply the
most efficient service;
(4)Strict Pre-delivery inspection for each order, the original Mill Test Certificate available
to attach to the delivery;
Packing details:
We will suggest you the packing by plywood cases or cartons. Because we must consider
about the safe and freight cost.
Inside of the Plywood cases,we usually keep the products inside a plastic bag to prevent
the products from being scratched.
Shipping terms:
By sea:
1.Conditions:
Your ordering weight is high, you want to pay less freight.
You don’t want the products urgently.
2.Features: Longer shipping time(About 15-30 days), low shipping cost, Safe.
By air:
1.Conditions: Your ordering weight is low, you want a sample.
You want the products urgently.
You want the products shipped door to door(By Express).
2.Features: Fast delivery (About 4-10 days), Higher shipping cost, Safe.
Most importantly,the products will be shipped according to customers’ demands.
Payment:
By Western Union, T/T or L/C, etc.we will offer the payment according to the Total amount
or our customers’ favorite and most
convenient payment terms.

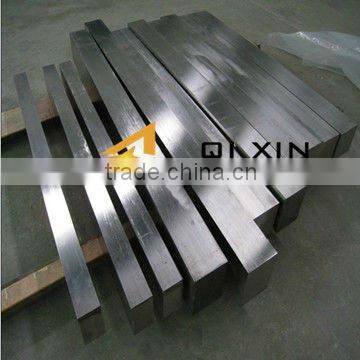

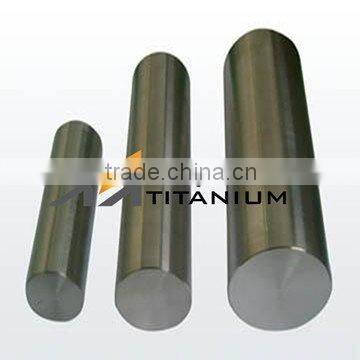

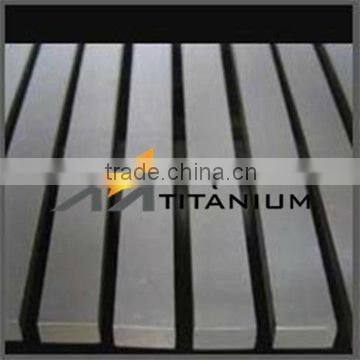

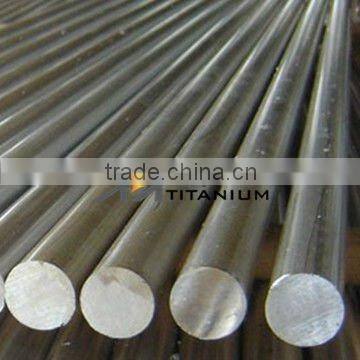

Products Showcase:
Packing:
Equipment showcase:
If you are interested in our products, please feel free to contact me. Your enquiry and visiting are welcomed at any time.
