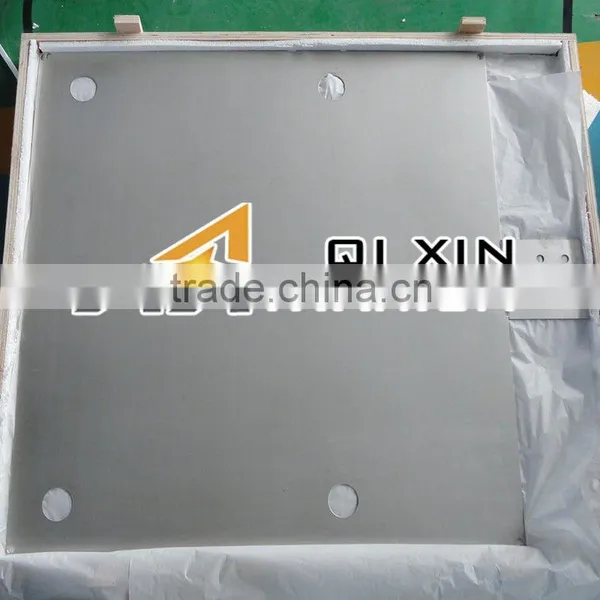

Platinum Coated Titanium Plate Anode for Electroplating Quality Choice

Name: Platinum Coated Titanium Plate Anode for Electroplating Quality Choice
Brand: Qixin
SKU: 105104987

US$ 50 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Qixin

Model Number:

QX-A

Baoji Qixin Titanium Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name Qixin

Model Number QX-A

Technique Brush Painting

Dimensions customied, Customizable

Grade Pure Titanium

Powder Or Not Not Powder

Ti Content (%) 99.5%

Application Ionized Water Machine

Titanium Plate Anode
Material	Gr1 titanium as substrate, platinum as coating
Parameter	l Current density<20000A/M2 l Temperature<85°C l PH 0.1~14 l Max content of Fluoride ion is 200PPM
Coating Thickness	0.5~5um
Dimension & Shape	Plate/Tubular/Rod/Mesh shape Different dimension is available or according to client's drawing
Advantages	Insoluble and Stable in acidic or alkaline electrolyte High oxygen evoution voltage High current density bearing capacity Long lifetime Suitable to reverse polarity Keep the operating voltage stable Small size & light weight Recoatable & Repetitive titanium substrate etc..
Applications	Two major fields (1)Electroplating Industries a. Gold plating b. Electro Dyalysis c. Electrolytic Cells d. Rhodium Plating e. Sensing Elements f. Electrogalvanizing g. Electrochlorination h. Hard Chrome Plating i. Waste water treatment j. Precious Metal Recovery k. Rotogravure printing (2)Cathodic Protection Applications a. Sea water intakes b. Heat exchanger & Condensers c. Jetties & Tanks d. Water Heaters
Packing	Palstic or paper as inside,plywood case or carton as outside,or according to client's demand
