AMR Class D Water Meter Flow Meters
SCL-61H series DN15mm~DN25mm

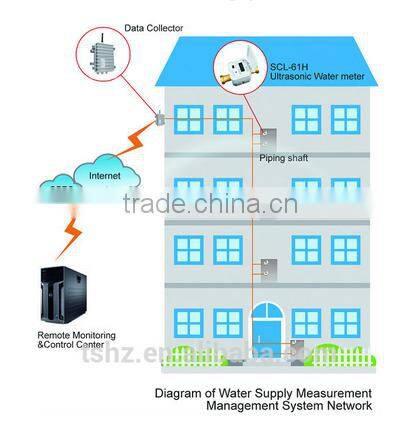

Application: Automatic Meter Reading
The ultrasonic water flow meter is suitable for use in residential,buildings and at district water supply sub-stations.
Features:
1. Large dynamic range is 250. Metrological properties better than class D.
2. Protection class is IP68.
3. SCL-H ultrasonic water meter is working with micro-power consumption technology.
4. A flowrate as low as 1.5L/h can be precisely measured.
5. The ultrasonic water meter has no mechanical moving parts.
6. The ultrasonic water meter is small in size, high in stability and anti-interference.
7. Can be mounted at any angles without being affected in measuring accuracy.
8. It supports phoyoelectric ,RS-485 and M-BUS output interfaces and provides Radio Frequency and remote meter data reading functions.
Technical data:
| Item | Parameter | ||||||
| Nominal Diameter.mm | DN15 | DN20 | DN25 | ||||
| Dynamic Range | 250 | ||||||
| Permanent Flow rate, Q3(m3/h) | 1.6 | 2.5 | 1.6 | 2.5 | 4.0 | 4.0 | 6.3 |
| Overload Flow rate, Q4(m3/h) | 2.0 | 3.125 | 2.0 | 3.125 | 5.0 | 5.0 | 7.87 |
| Boundary Flow rate, Q2(L/h) | 10.24 | 16.0 | 10.24 | 16.0 | 25.6 | 25.6 | 40.32 |
| Minimum Flow rate, Q1(L/h) | 6.4 | 10.0 | 6.4 | 10.0 | 16.0 | 16.0 | 25.2 |
| Starting Flow rate (L/h) | 1.5 | 1.5 | 2.5 | 2.5 | 2.5 | 4.0 | 4.0 |
| Range of Pressure Loss | 25 | 63 | 10 | 25 | 63 | 25 | 63 |
| Medium | Water and other homogeneous fluids in full pipe flow |
||||||
| Accuracy | Class 2 | ||||||
| Max. Permissible working Pressure | 1.6Mpa | ||||||
| Working Environment | -25℃~+55℃,≤100%RH(If the range is exceeded, please specify on ordering) | ||||||
| Temperature class | T30,T50,T70, default: T30 | ||||||
| Upstream Flow Field Sensitivity | U10 | ||||||
| Downstream Flow Field Sensitivity | D5 |
||||||
| Climate &Mechanical Environmental Conditions Class | C | ||||||
| Electromagnetic Compatibility | E1 | ||||||
| Pushbutton | Photosensitive Key | ||||||
| Display | Liquid Crystal8- digit +Prompting Characters | ||||||
| Content of Display | Cumulative flowrate: m³/h, Instantaneous flowrate: m³/h, Water Temperature, ℃, Cumulative effective running time, h, Date: y/m/d, Clock: h/m/s, Software version, Screen test | ||||||
| Display Resolution | Cumulative flowrate: 0.001m³/h Water temperature: 0.01℃ |
||||||
| Display Range | Cumulative flowrate: 0 m³ ~+99999.999m³ | ||||||
| Type of Communication | Photoelectric Interface | Baudrate: 2400bps Protocol: EN13757 |
|||||
| RS-485/M-BUS |
Baudrate: 2400bps, 4800bps, 9600bps (Selectable) Default: 2400bps Transmission distance: ≤1200m Protocol: GJ/T188, Huizhong, Modbus, EN13757(selectable), Default: EN13757 |
||||||
| Radio Frequency |
Transmission distance: 300m(open space) Frequency range:470MHz~510MHz |
||||||
| Data Storage | Storage of Cumulative flow rate in EMPROM on a month by month basis. Data can be kept within 100 years after the power failure. The data of past 24 months can be automatically stored. | ||||||
| Power Supply | Battery Powered DC3.6V(Service life >10 years) | ||||||
| Power Consumption | <0.2mW | ||||||
| Protection Class | IP68 | ||||||
| Storage Temperature | -25℃~+55℃ | ||||||
| Power Cable length | 1.3m | ||||||
| Meter Mounting Position | On Water Supply Pipe | ||||||
10 sets in one box.
Our company provides OEM service, design and manufacture, buyer's label service.
