2015 Hot Sale Ultrasonic Water Meter For Commercial & Industrial
For Commercial & Industrial
Applications:

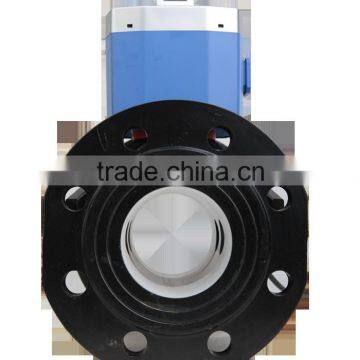

SCL-61D2 is used for Commercial & Industrial with Nominal Diameter from 50mm to 300mm.
Advantages:
1. Highest measuring accuracy under various pipe flow conditions with multi-channel design and doule-section measurement.
2. The meter has no mechanical moving parts so that there is no pressure loss and avoid impeller from wearing away. Therefore, the service life will be longer, operating and maintenance cost of water supply companies are drastically reduced.
3. A flow rate as low as 0.002m/s can be precisely measured.
4. Battery powered with micro-power consumption technology. Service life of battery more than10 years.
5. The meter is anti-magnetic interference, high in reliability and keep long-term working at any flow point.
6. The meter provids multi-output function and can link up with GSM for wireless data transmission. A monitoring system of meter and pipe network can be formed up.
7. The Protection class is IP68.

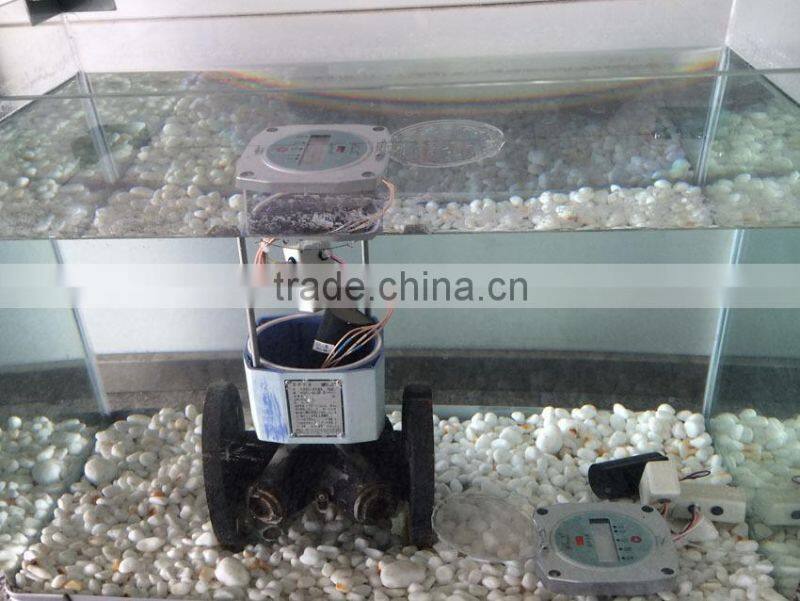

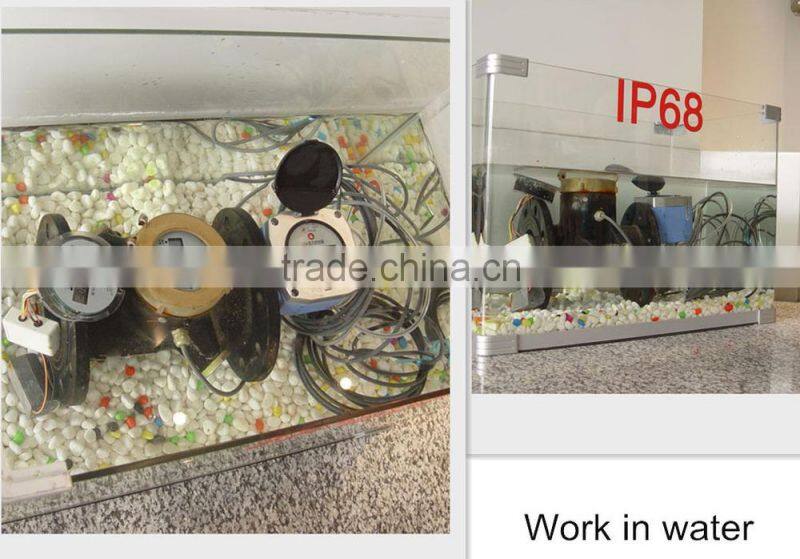

Each part is IP68 protected:
Technical data:
| Item | Parameter | |||
|
SCL-61D2 | ||||
| Accuracy Class | 2 | |||
| Nominal Diameter,mm | DN50~DN300 | |||
| Medium | Full pipe flow of water, Sewage or other homoheneous fluids | |||
|
Range of Pressure loss |
Δp25 | Δp10 | Δp10 | |
| Max. Permissible working Pressure | 1.6Mpa (DN200: standard value 1.0Mpa) | |||
| Working Environment | Temperature: -25℃~+55℃; RH ≤100% (If the limit is exceeded, please specify when ordering) |
|||
| Temperature range | T30, T50, T70, default:T30 | |||
| Sensitivity Class of Upstream Flow Field | U10 | U10 | U5 | |
| Sensitivity Class of Downstream Flow Field | D5 | D5 | D3 | |
| Climate & Mechanical Environment Conditions | C |
|||
| Class of Electromagnetic Compatibility | E2 | |||
| Keyboard | Magnetic induction keys | |||

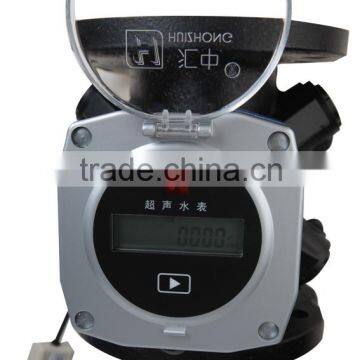

| Display | Liquid crystal display: 8-digit +prompting characters, Word height: 8.5mm | |||
| Content of display | Instantaneous flow ate: m³/h; Cumulative flow rate: m³; Total effective running time: h; Date: y/m/d; Clock: h/m/s | |||
| Range of display |
Cumulative flow rate: -9999999.9m³~+99999.999m³ Instantaneous flow ate: -999999.99m³/h~+999999.99m³/h |
|||
| Type of Communication | Photoelectric Interface | Baud rate: 2400bps, Protocol: EN13757 |
||
| RS-485 |
Baud rate: 2400bps, 4800bps, 9600bps (Selectable) Default: 2400bps Transmission distance: ≤1200m Protocol: Huizhong , Modbus, EN13757(selectable), Default: Huizhong |
|||
| Data storage(EEPROM) | Storage of cumulative flow rate and effective running time.( Data can be saved for a period of 100 years after power failure). The above mentioned data can be automatic stored within 24 months. | |||
| Working Power | Battery DC 3.6V ( The service life of battery >10 years) | |||
| Measuring Cycle | Once per second | |||
| Protection Class | IP68 | |||
| Power consumption | <0.5mW | |||
OEM service. Design. Buyer label.
If any interest or requirements, don't hesitate to contact us at any time.
