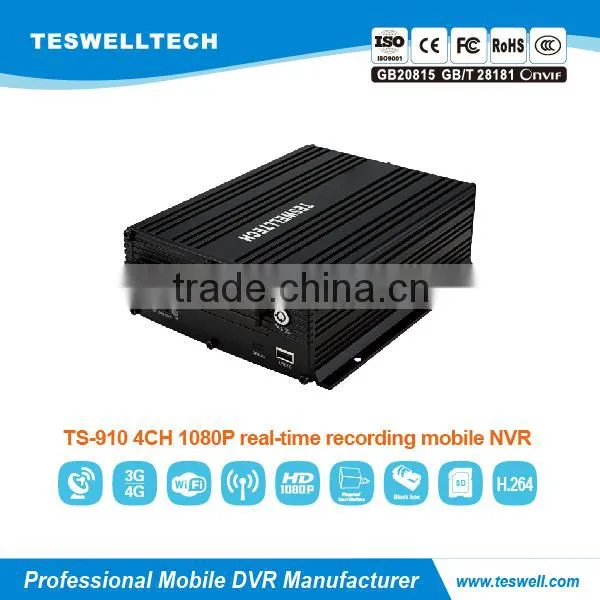

4 CH G-Sensor Car Camera 3G WIFI GPS Mobile DVR Shockproof MDVR
Features:
- 2.5 inch SATA HDD max 2TB, support HDD & 128GB SD card dual storage
- 4ch AHD 720P real-time recording
- More attractive menu interface, more detailed items
- 4-CH A/V in, 1CH A/V out. Audio and video synchronous processing

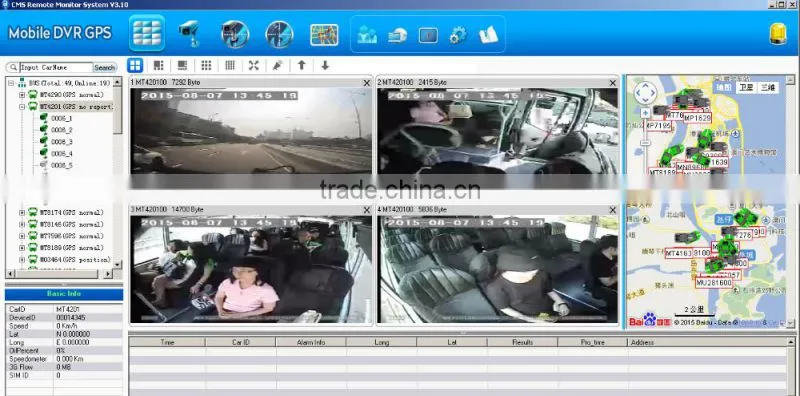

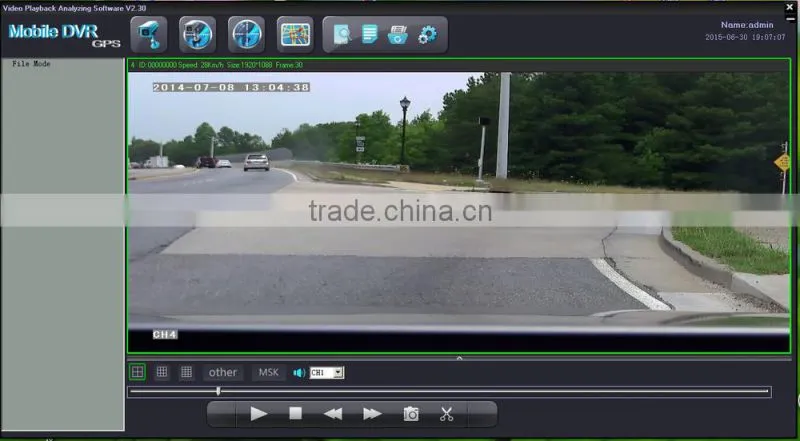

- support remote download and playback, video can be accurate to seconds
- Motion detection, pre-alarm record and alarm linkage
- Built in 3G/4G,WIFI,GPS,G-sensor module to be optional
- can record speed, GPS position, acceleration, emergent brake, video rearview, swerve view, alarm etc
- TES correction encrypted file management system, no video loss and protect data in 2s before power sudden off
- Support outer extend, such as LED screen, ID reader, schedule monitor, passenger statistic
- DC 8 -36V wide voltage applicable for various types of vehicle
- Dual shockproof- best product structure design
Items |
Device parameters |
Performance index |
Name |
Product Name |
4 Channel AHD 720P Mobile DVR( 2TB HDD Storage) |
System |
Operation System |
Linux |
Operation Interface |
Graphical Interfaces, Chinese/English optional |
|
File System |
Proprietary Format |
|
System Privileges |
User Password |
|
Video |
Video Input |
4 CH AHD input |
VGA Output |
1 channel 1920*1080/ 1280*720 |
|
CVBS output |
1ch outpout: 1.0Vp-p,75Ω. Composite video signal |
|
Video Display |
1 Or 4Screen Display |
|
Video standard |
PAL: 25 FPS NTSC 30FPS |
|
System Resources |
PAL: 100FPS NTSC: 120FPS |
|
Audio |
Audio Input |
4 Channels |
Audio Output |
1 Channel |
|
Record format |
Synchronized video & audio recording |
|
Audio compression |
G711U |
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
Image Format |
4*720P 1280*720 |
|
Video Stream |
1.0M-6.0Mbit/s |
|
Playback Resolution |
4*720p |
|
Audio Bit-rate |
4KByte / s / channel |
|
Audio Taking Up Of Hard Disk |
85-900MByte / hour / channel |
|
HDD Storage |
Support Max 2TB |
|
Image Quality |
Eight Grades to Choose |
|
Alarm |
Alarm input |
8 Channels Independent Input. High Voltage Trigger |
Alarm out |
2 Channels Independent output |
|
Move Detect |
available |
|
USB Interface |
Host Access |
Can Expand One For USB Disk Backup |
GPS Interface |
GPS |

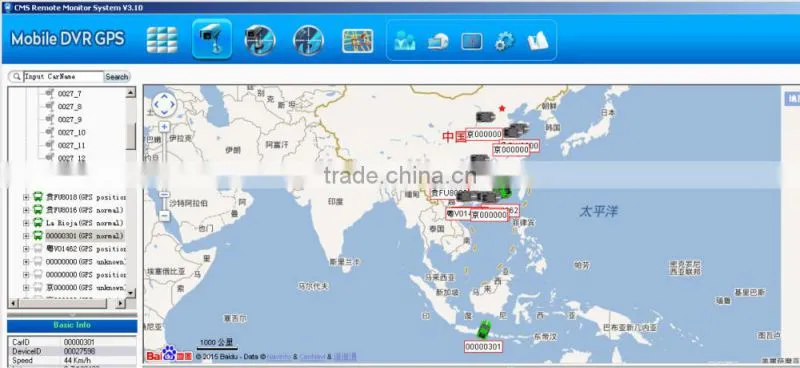

can show the driving route on the GOOGLE MAP. |
Extend Interface |
RS232 |
Extensible, it is convenient to connect with other vehicle equipment |
RS485 |
Extensible, it is convenient to connect with other vehicle equipment and PTZ Camera |
|
Intercom |
support |
|
G-Sensor |
support |
|
Others |
Power Consumption |
DC8-36V 5% ≤12W |
Working Temperature |
-20℃ ~ +85℃ ≤80% |
|
Clock |
Built-In Clock, Calendar |
|
Packaging |
Product Size |
245(L)*190(W)*71(H)mm(with Holder) |
Product Weight |
3.0KG(without HDD) |
|
Package |
Each In a Box, 5 set/Canton |
|
Box Size |
245(L)*190(W)* 71(H)mm |
|
Carton Size |
650(L)*375(W)* 255(H)mm |
|
Carton Weight |
14kgs/ 18kgs (without HDD) |
Call or Email us for further details!
- Skype: teswell_sales5
- QQ: 632941129
- Waht's up: +86 134 288 44210
