mini electric cable hoist
- 1000 Box / Boxes per Month
- tianjin
- T/T Credit Card
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | Yunxiang |
Model Number: | PA100-1000KG | Usage: | Mining Hoist | Power Source: | Electric |
Sling Type: | Wire Rope | Maximum Lifting Weight: | 1000kg | Maximum Lifting Height: | 30m |
Lift Speed: | 8m/min | Certification: | ISO9001:2008 | Warranty: | 12 Months |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Electric Power Source and Wire Rope Sling Type mini electric hoist 100kg
It has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device.
Min-Electric hoist Technical Parameters:
Specification | Method | Rated | Input | Rated | Lifting | Lifting | Quantity/CTN | Packing | G.W/N.W(kg) |
PA200 | Single-hook | 220/230 | 510 | 100 | 10 | 12 | 2 | 47*37*16 | 24/22 |
Double-hook | 200 | 5 | 6 | ||||||
PA250 | Single-hook | 220/230 | 510 | 125 | 10 | 12 | 2 | 47*37*16 | 25/23 |
Double-hook | 250 | 5 | 6 | ||||||
PA300 | Single-hook | 220/230 | 600 | 150 | 10 | 12 | 2 | 47*37*16 | 26/24 |
Double-hook | 300 | 5 | 6 | ||||||
PA400 | Single-hook | 220/230 | 980 | 200 | 10 | 12 | 2 | 52*45*17.5 | 35/33 |
Double-hook | 400 | 5 | 6 | ||||||
PA500 | Single-hook | 220/230 | 1020 | 250 | 10 | 12 | 2 | 52*45*17.5 | 36/34 |
Double-hook | 500 | 5 | 6 | ||||||
PA600 | Single-hook | 220/230 | 1200 | 300 | 10 | 12 | 2 | 53*45*19 | 41/38 |
Double-hook | 600 | 5 | 6 |

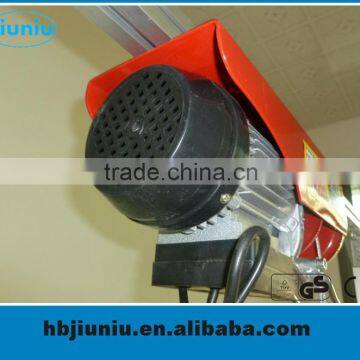

Electric hoist
with pulley reeving system. Single phase electric motor,
230 V~50 Hz. Protection class: IP 44. Pressurized cast aluminium alloy casing. Plastic ventilator cover.
Twisted steel wire cable with rubber stop and mounted spring hook. Cable pull-in speed: 10 m/min (simple) - 5 m/min
(double); for 1600W, 8 m/min (simple) - 4 m/min (double).

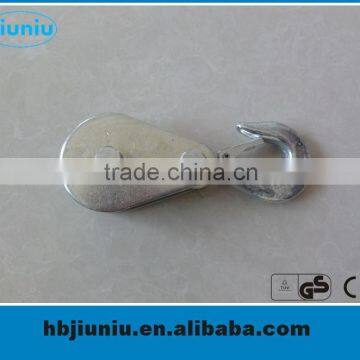

Delivered with a spring hook on bearings (to double load capacity) and an attachment system for tubes or a hoist frame (2 pads + bolts).
- 480 W - 100 kg : 18 m - 200 kg : 12 m
- 540 W - 125 kg : 18 m - 250 kg : 12m
- 950 W - 200 kg : 18 m - 400 kg : 12 m
- 1020 W - 250 kg : 18 m - 500 kg : 12m
- 1200 W - 300 kg : 18 m - 600 kg : 12m
- 1600 W - 495 kg : 12 m - 990 kg : 12m
Hebei Jiuniu Hoist Machinery Manufacturing CO.,LTD is an electric hoist, mini electric hoist , CD1 electric hoist , chain electric hoist , two -phase hoist, electric cars, mini electric hoist frame, pallet truck, hydraulic jack, screw jack and other professional production and processing company , has a complete , scientific quality management system. Hebei Jiuniu Hoist Machinery Manufacturing CO.,LTD integrity , strength and quality of products recognized by the industry . Welcome friends to visit, advising and business negotiation.
1. If you want inquiry, please provide us this information:
which product,which size, quantity,port,and with tax or not.
2. About sample?
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
3. About payment?
L/C or 100% TT as deposite, if amount more than 5000usd or 30%TT as deposite, balance after B / L copy.
4. How long does it take to receive my order?
About 25 Days from we get the down payment, 10 days for sample order or as per your requirement.
5. The Mini Order?
We can accept one piece order.
If you have any question please contact with us without heistation, your positive comment will be highly appreciated.Thanks for your visiting and looking forward to sincere cooperation with you.
