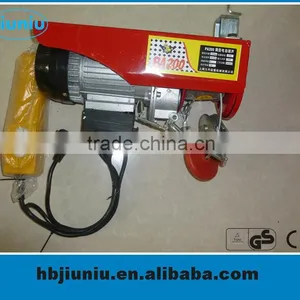

one speed single-phase electric hoist

 Electric Power Source and Wire Rope Sling Type mini electric hoist 100kg

It has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device.

Min-Electric hoist Technical Parameters:

Electric hoist
with pulley reeving system. Single phase electric motor,
230 V~50 Hz. Protection class: IP 44. Pressurized cast aluminium alloy casing. Plastic ventilator cover.

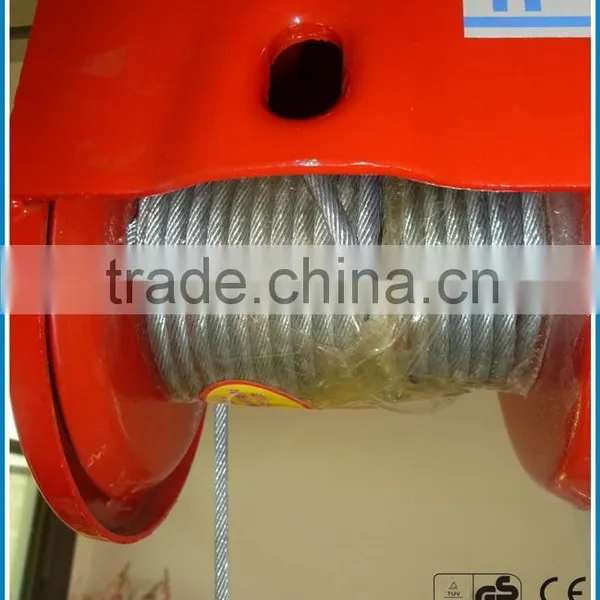

Twisted steel wire cable with rubber stop and mounted spring hook. Cable pull-in speed: 10 m/min (simple) - 5 m/min
(double); for 1600W, 8 m/min (simple) - 4 m/min (double).
Delivered with a spring hook on bearings (to double load capacity) and an attachment system for tubes or a hoist frame (2 pads + bolts).

- 480 W - 100 kg : 18 m - 200 kg : 12 m
- 540 W - 125 kg : 18 m - 250 kg : 12m
- 950 W - 200 kg : 18 m - 400 kg : 12 m
- 1020 W - 250 kg : 18 m - 500 kg : 12m
- 1200 W - 300 kg : 18 m - 600 kg : 12m
- 1600 W - 495 kg : 12 m - 990 kg : 12m
