SUK-1.5 phoenix contact type terminal block din rail connector Quality Choice
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SIPUN | |
| Model Number | SUK-1.5 | Number of Contacts | 1 - 10 | |
| Conductor Size | 11 - 20 AWG | Type | Screw |
Product Description

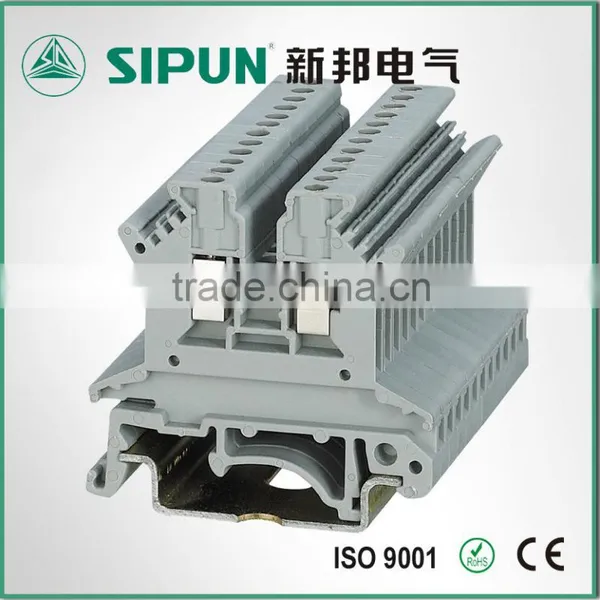

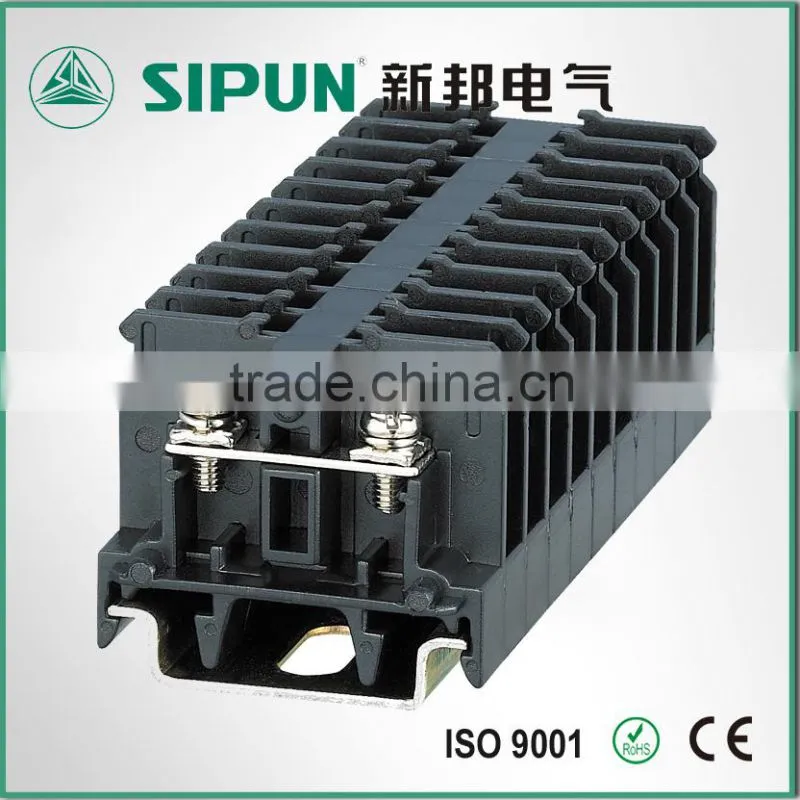

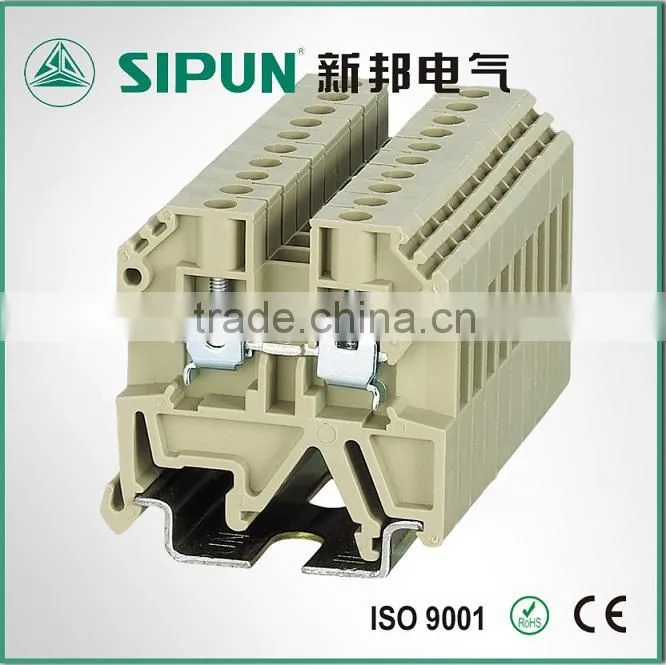

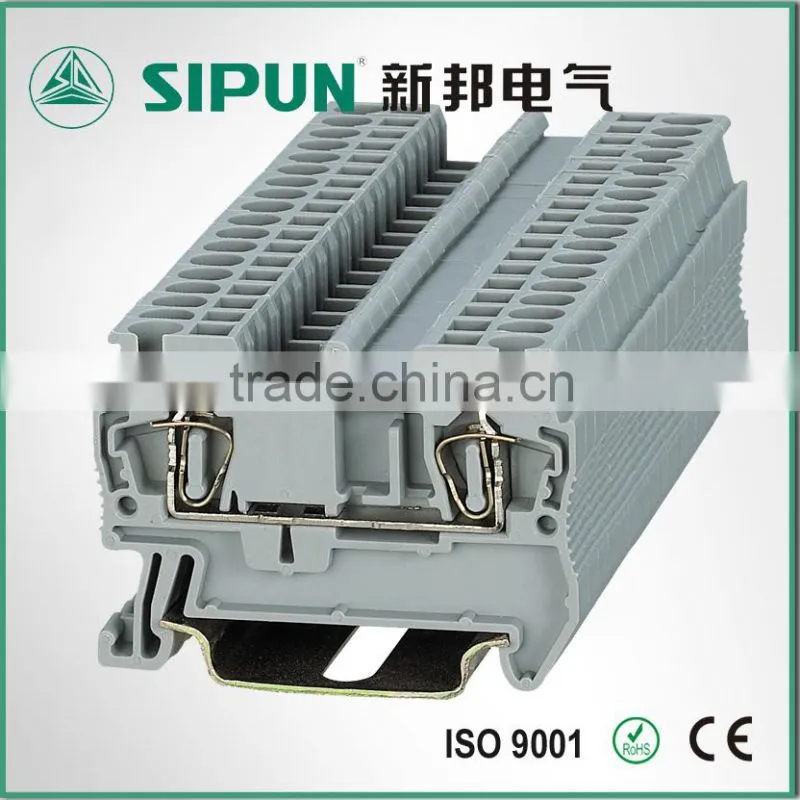

SUK-1.5 phoenix contact type terminal block din rail connector
1.General specifications SUK-1.5 terminal blocks Compliance with international standards : IEC60947-7-1.
2.Wire range : rigidity wire : 0.14-1.5mm, flexibility wire : 0.14-1.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
| Model Number | SUK-1.5 |
| T/W/H(mm) | 4.2*43*41 |
| Clamping screw | M2 |
| Torque | 0.22-0.25NM |
| Stripping Length | 7mm |
| Rated Voltage | 550V |
| Reted Current | 17.5A |
| Cross Section | 1.5mm2 |
| Wire cross section, solid core | 0.14-1.5mm2 |
| Wire cross section, stranded | 0.14-1.5mm2 |

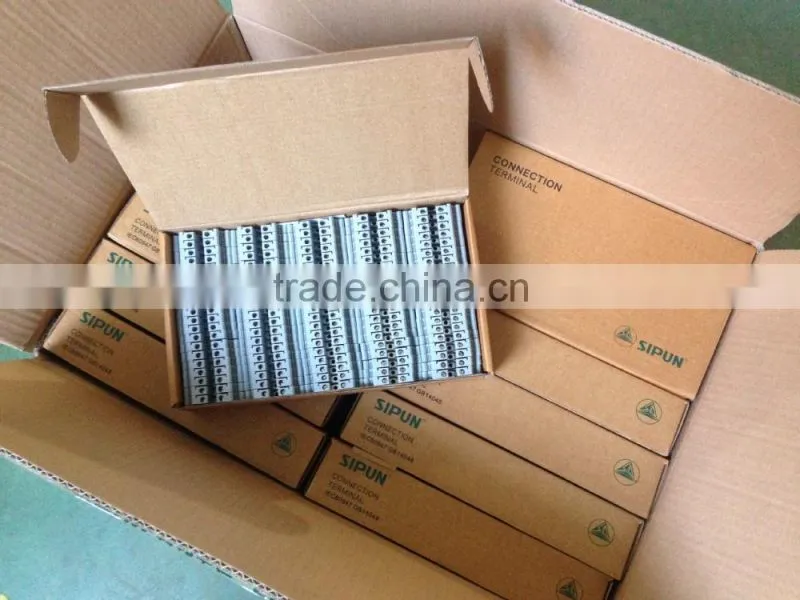

| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |
To see SN series
To see ST3 series
To see SEK series
Certificate:
Q: What's your MOQ?
A: For terminal block 2.5-6mm², MOQ is 100pcs. Because it's 100pcs/box. for 10mm² or 16mm² can be 50pcs/box.
Q: What's the delivery time?
A: It can be 3~15 days usually.
Q: What's the difference of these terminal block?
A: Our SUK series is high quality, brass screw and copper conductor. SEK is brass screw and conductor. But they all can replace each other.
Q: Can you do OEM?
A: Yes we can.
Q: Can I have a sample ?
A: Of couse, sample will be free, but you need pay for the freight cost.
Q: Can i get your e-catalog?
A: You can find it in our homepage, or you can give me a inquiry, i will send it to your email.
Come to our homepage
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
