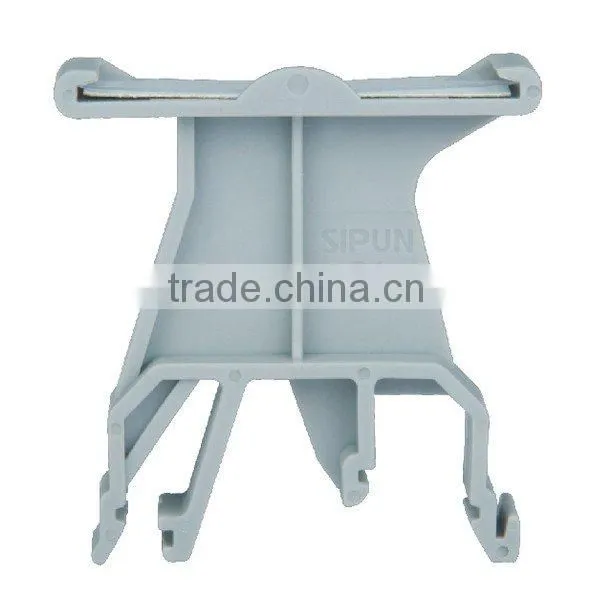

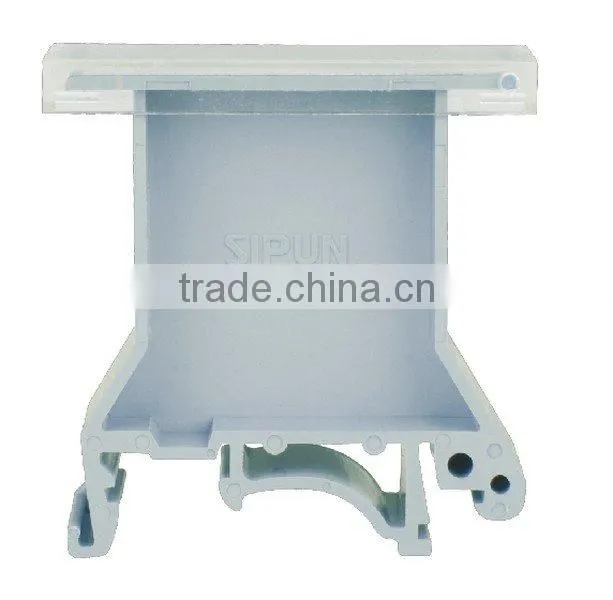

UK3N Frame Type Terminal Block for DIN Rail
US$ 0.115 - 0.155
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SIPUN
Model Number:
SUK-2.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SUK-10RD/X Led Fuse Terminal BlockUS$ 1.01 - 1.68MOQ: 1 Piece -
UK2.5B Frame Type Terminal BlockUS$ 0.115 - 0.15MOQ: 100 Pieces
-
UK4 Sqmm Frame Type Double Layer Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
UK2.5 SQMM Frame Type Three Layer Terminal BlockUS$ 0.14 - 2MOQ: 100 Pieces
-
UK2.5 SQMM Fuse Type Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
SIPUN
Model Number
SUK-2.5
Number of Contacts
1 - 10
Conductor Size
11 - 20 AWG
Type
Screw

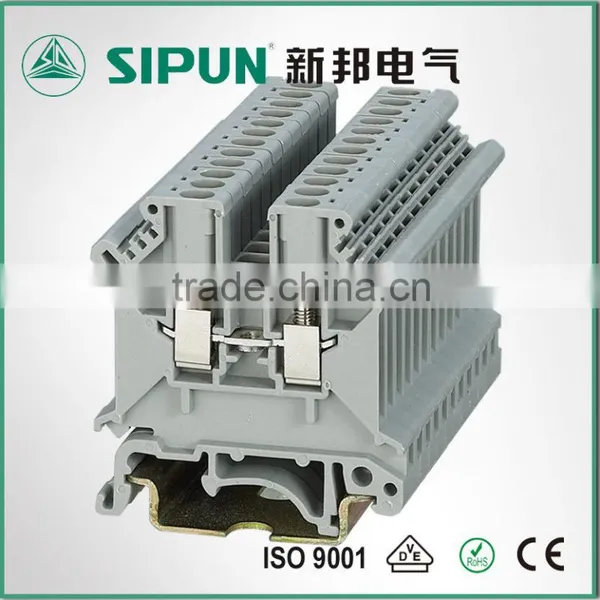

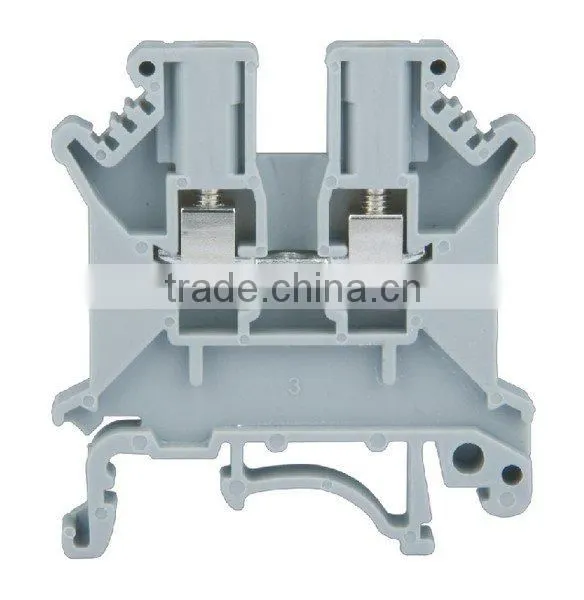

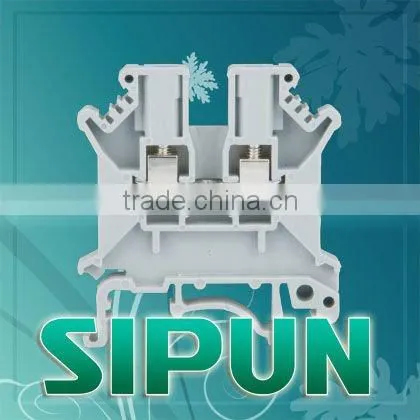

SUK-2.5 frame-type terminal block
Feature of SUK series terminal block:
1.Reasonable design
2.General-purpose
3.Small cubage and portable
4.Complete products series
5.Large cross-section wire connection
6.Good conductive
Specification
| Model Number | SUK-2.5 |
| T/W/H(mm) | 5.2*43*46.5 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 800V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | VDE/CE/RoHS/EX |

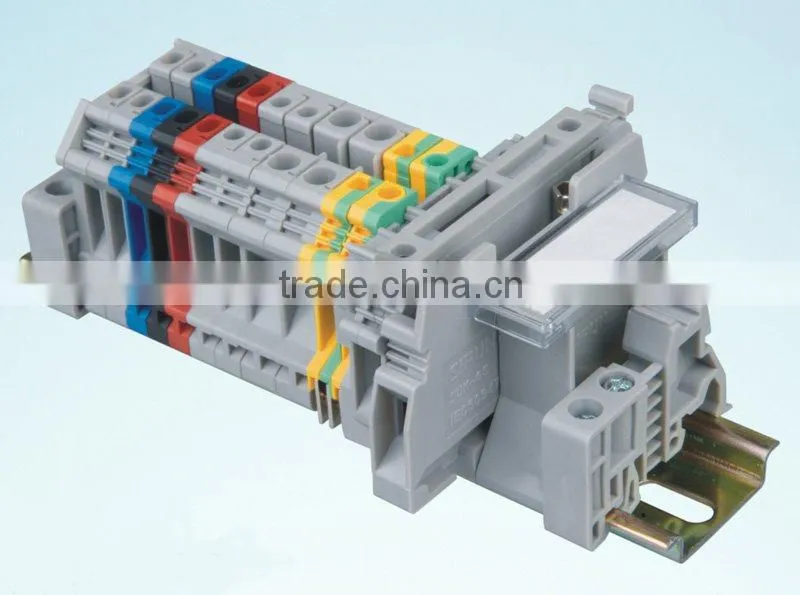

product show:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
