Home > Electrical & Electronics > Connector & Terminals > Terminals > Universal Screw Type Terminal Block 4mm
Universal Screw Type Terminal Block 4mm
US$ 0.14 - 0.14
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
sipun
Model Number:
SUK-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UK35 Terminal Block With Din Rail Screw TypeUS$ 0.14 - 0.14MOQ: 100 Pieces -
Industrial 800V 24A Wire Terminal Screw ConnectorUS$ 0.14 - 1.54MOQ: 100 Pieces
-
26 - 10AWG Din Rail Terminal Block SUK 2.5 BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
Uk2.5 Electric Wire Connector Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
UK4 Fuse Disconnect Type Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
sipun
Model Number
SUK-4
Type
Screw Terminal
Universal screw type terminal block 4mm
Descruotion:
1.General specifications SUK-4 terminal blocks Compliance with international standards : IEC60947-7-1.
2.Wire range : rigidity wire : 0.2-6mm, flexibility wire : 0.2-4mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-4 |

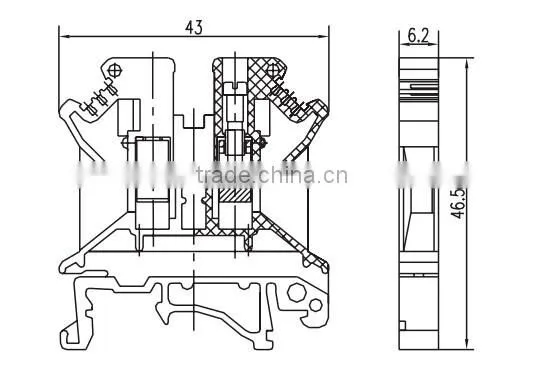

| T/W/H(mm) | 6.2*43*46.5 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 800V |
| Reted Current | 41A |
| Cross Section | 4mm2 |
| Wire cross section, solid core | 0.2-6mm2 |
| Wire cross section, stranded | 0.2-4mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

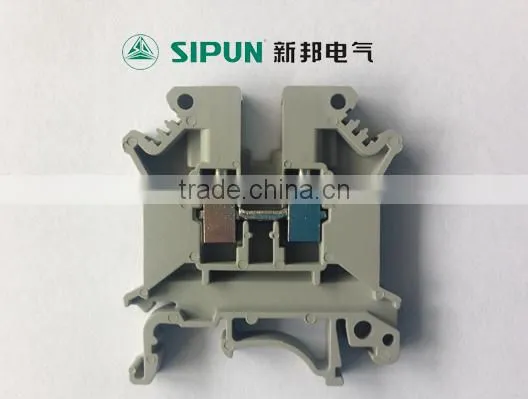

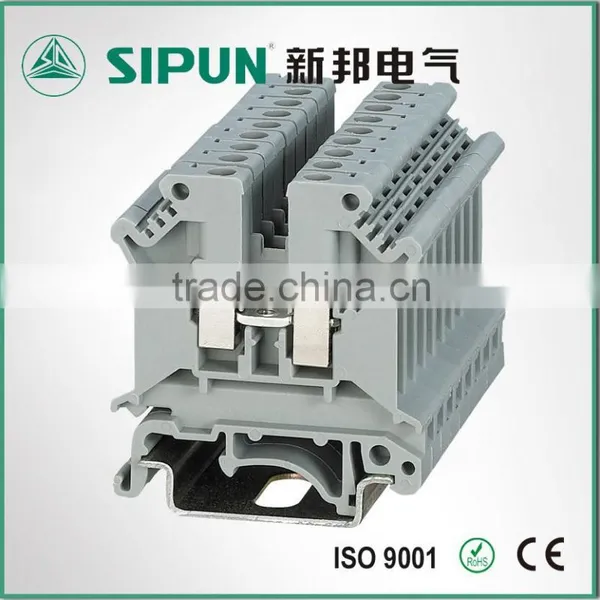

Product shows:
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
