Home > Electrical & Electronics > Connector & Terminals > Terminals > UK35 Terminal Block With Din Rail Screw Type

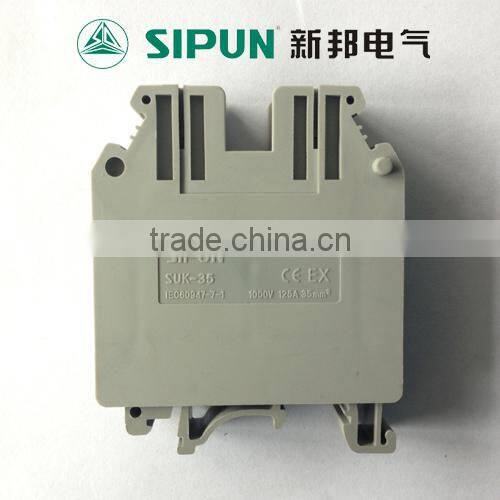

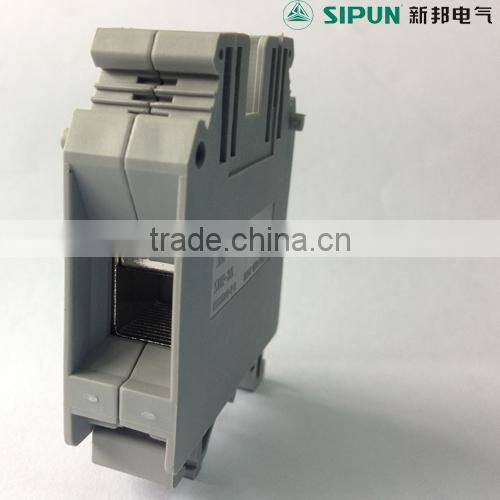

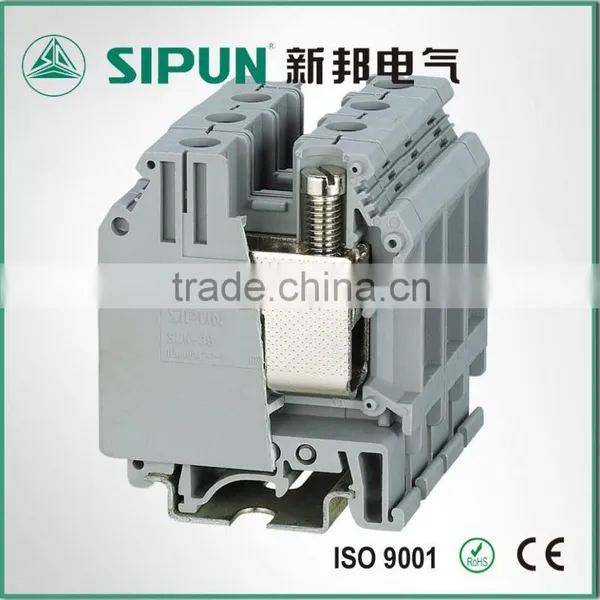

UK35 Terminal Block With Din Rail Screw Type

Name: UK35 Terminal Block With Din Rail Screw Type
Brand: sipun
SKU: 105086545
Availability: InStock

UK35 Terminal Block With Din Rail Screw Type thumbnail-1

UK35 Terminal Block With Din Rail Screw Type photo-1

US$ 0.14 - 0.14 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

sipun

Model Number:

SUK-35

Contact Supplier Request Quote Chat Now

Yueqing Sipun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name sipun

Model Number SUK-35

Type Screw Terminal

UK35 terminal block with din rail screw type

Descruotion:

1.General specifications SUK-35 terminal blocks Compliance with international standards : IEC60947-7-1

2.Wire range : rigidity wire : 0.75-50mm, flexibility wire : 0.75-35mm.

3.Terminal can used in TH35 and G32 rail.

4.Insulation material is PA66, Antiflaming and anticorrosion.

5.Small volume, complete range of articles.

6.self locking function, crimping fastness.

Specifications:

Model Number	SUK-35

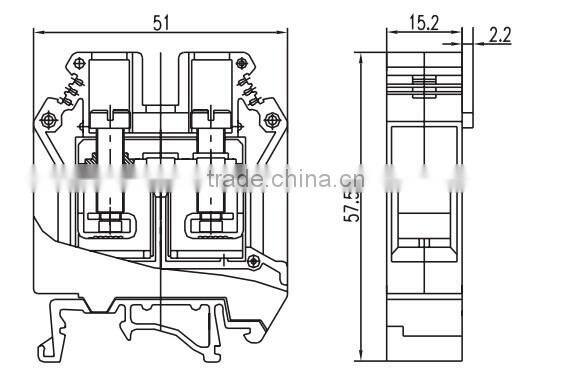

T/W/H(mm)	15.25157.5
Clamping screw	M6
Torque	3.2-3.7NM
Stripping Length	16mm
Rated Voltage	1000V
Reted Current	125A
Cross Section	35mm2
Wire cross section, solid core	0.75-50mm2
Wire cross section, stranded	0.75-35mm2
Packaging Detail	100pcs/box;2500pcs per carton
Certification	CE/RoHS/EX

Product shows:

we can customize your color:

Parts:

Compare with others:

Wiring diagram:

Installation:

Our workshop:

Pacagking:

Certificate:

We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
