Help CenterUK4 Sqmm Double Inlet Double Outlet Terminal Blocks
Related Products
-
UK35 Frame Type Terminal Blocks for Big Current Quality ChoiceUS$ 0.14 - 0.14MOQ: 100 Pieces -
UK35I Screw Type Terminal Blocks With Made in WenzhouUS$ 0.14 - 5MOQ: 100 Pieces
-
UK150 Screw Type High Quailty Terminal BlocksUS$ 5 - 10MOQ: 100 Pieces
-
UK50 Screw Type Large Current Terminal BlocksUS$ 0.14 - 0.14MOQ: 100 Pieces
-
UK2.5 Frame Type Micro Connecting TerminalUS$ 0.14 - 0.14MOQ: 100 Pieces
Specifications
1.Certification: RoHS,Ex,CE2.The range of wire : 4mm
3.high quality and competitive price
4.Standard:IEC60947-7-1,ISO9001
UK4 sqmm double inlet double outlet terminal blocks
Descruotion:
1.General specifications SUK-10 terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.5-16mm, flexibility wire : 0.5-10mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-4/2x2 |

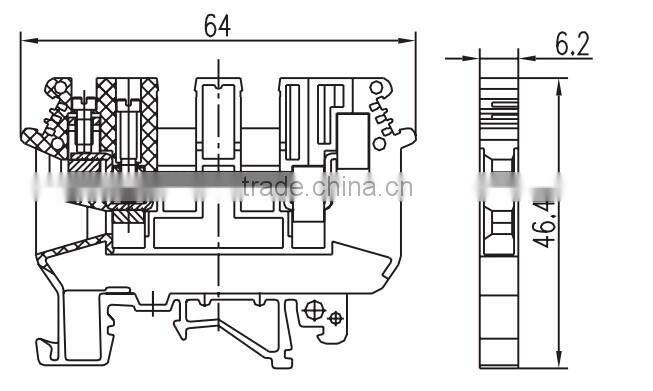

| T/W/H(mm) | 6.2*64*46.4 |
| Clamping screw | M3 |
| Torque | 0.6-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 500V |
| Reted Current | 32A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-4mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

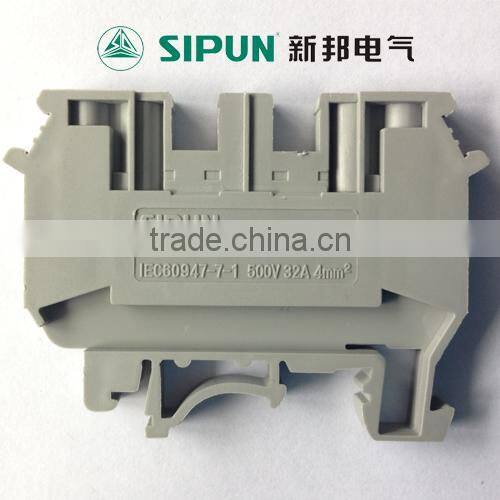

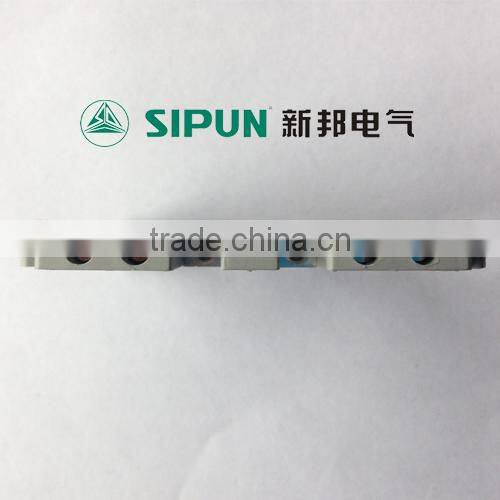

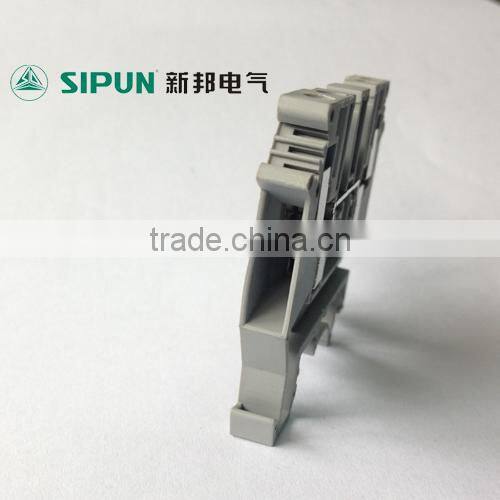

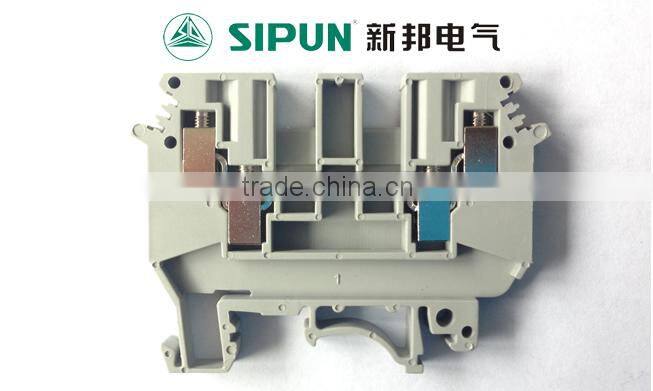

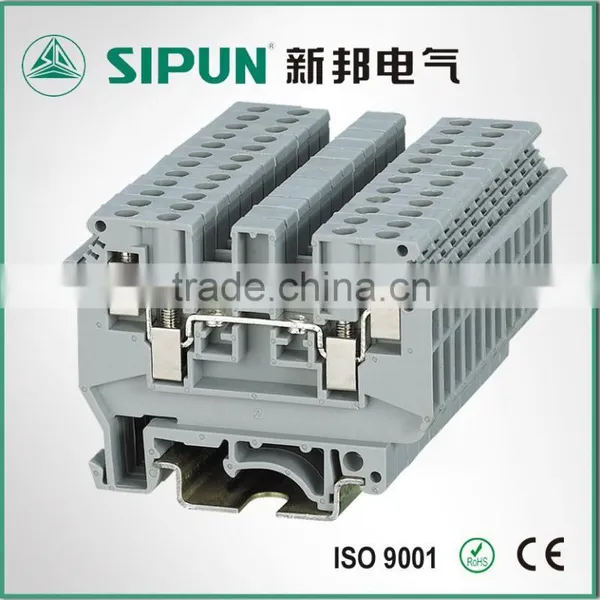

Product shows:
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
