UK150 screw type high quailty terminal blocks
Descruotion:
1.General specifications SUK-4RD terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 35-150mm, flexibility wire : 50-150mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-150 |

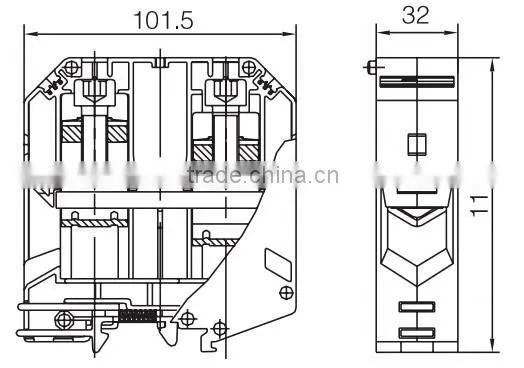

| T/W/H(mm) | 32*101.5*111 |
| Clamping screw | M10 |
| Torque | 25-30NM |
| Stripping Length | 40mm |
| Rated Voltage | 1000V |
| Reted Current | 309A |
| Cross Section | 150mm2 |
| Wire cross section, solid core | 35-150mm2 |
| Wire cross section, stranded | 50-150mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

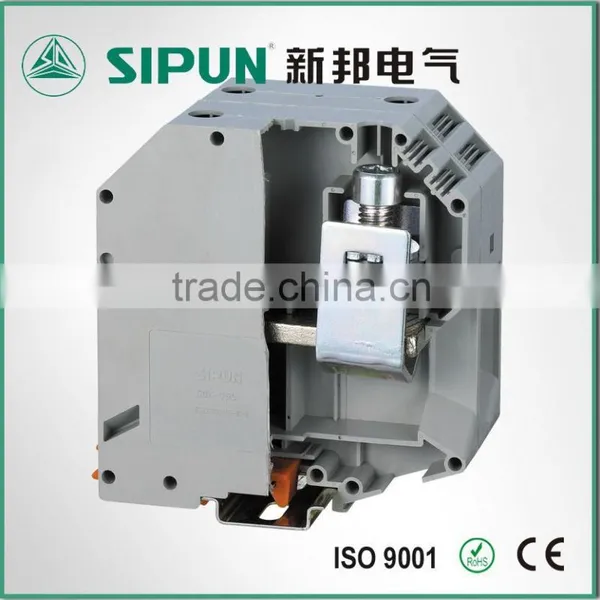

Product shows ( taken in kind ):
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
