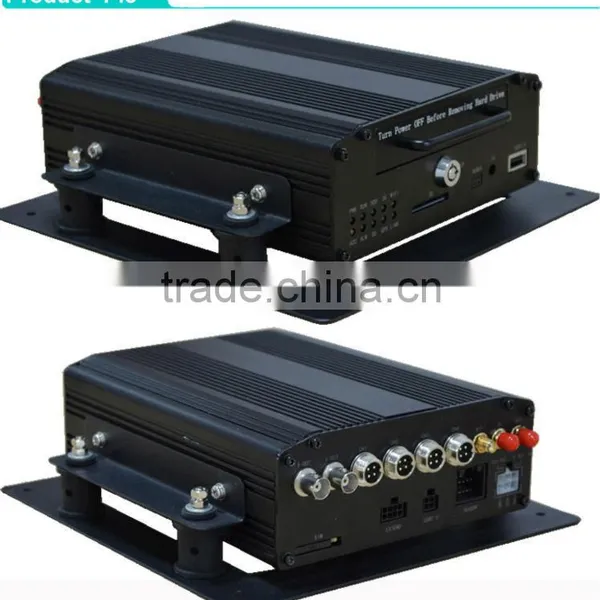

Truck/Bus/Car 3G SD DVR with GPS Tracker for Vehicle Surveillance System
The MOBILE DVR- TS-810Series is a economy designed for video surveillance your mobile assets. It uses a high-speed processor, an embedded Linux platform and combines the most advanced IT processes such as H.264 Video Compression/Decompression, networking and GPS positioning technology. MDVR enables CIF, HD1 and D1 video formats. Drivers' driving information, recording video and GPS data are uploaded to SD Memory Cards which are used as the storage medium and support playback analysis video. The MDVR provides powerful auto black box features, installation flexibility and high reliability.
Key Features:
•4 CH video & audio synchronous real-time recording and playback
• Continuous record.
• Support schedule recording.
• Support alarm recording.
• Support motion detection recording.
• Speed and Vehicle status recording
• 4 CH PAL:25frames/Sec;NTSC:30frames/Sec
•Dual SD Card port ,supports 2pcs 128gb 10class SDxc Card(support 2pcs 16/32gb SDhc Card).
•Built-in GPS module(option)
•4Pin Video Port
•Power supply: DC8V-48V
•Size: 148(L)*190(W)*50(H)mm(with Holder)
Applications:
Public Bus, logistics vehicles, school bus, police car, taxi, tanker car...etc
Order Model:
•TS-810C (MDVR)
•TS-810CA(MDVR+GPS)
• TS-810ABC(+3G+GPS)
Network Connection |
1 x RJ-45 Ethernet |
Image Quality |
Eight Grades to Choose |
Wireline Access |
Can Expand One RJ45 Ethernet Port |
Wifi |
Can Expand One Wifi Moduel Outside |
3G |
Can Expand One WCDMA or CDMA2000 Moduel Inside |
GPS |
Can Expand GPS Moduel Inside |
RS232 |
Extensibile,it is convenient to connect with other vehicle equipment |
RS485 |
Extensibile,it is convenient to connect with other vehicle equipment and PTZ Camera |
Intercom |
Can Expand Intercom Moduel Inside |
G-Sensor |
Can Expand G-Sensor Moduel Inside |
Canbus |
Can Expand Canbus Moduel Inside |
Video Display |
1 Or 4 Screen Display |
Viedo Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
System Resources |
PAL:100 Frames; NTSC:120 Frames |
Recording Rate & Resolution |
PAL:4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) NTSC:4*CIF (352*240), or 4*HD1(704*240), or 4*D1(704*480) |
Playback Rate |
PAL:1 or 4*CIF (352*288); 1 or 4*HD1(704*288); 1 or 4*D1(704*576) NTSC:1 or 4*CIF (352*240); 1 or 4*HD1(704*240); 1 or 4*D1(704*480) |
Recording Mode |
Manual, Scheduled, Alarm, Motion,Sound And Image Synchronization |
Languages |
English, Chinese |

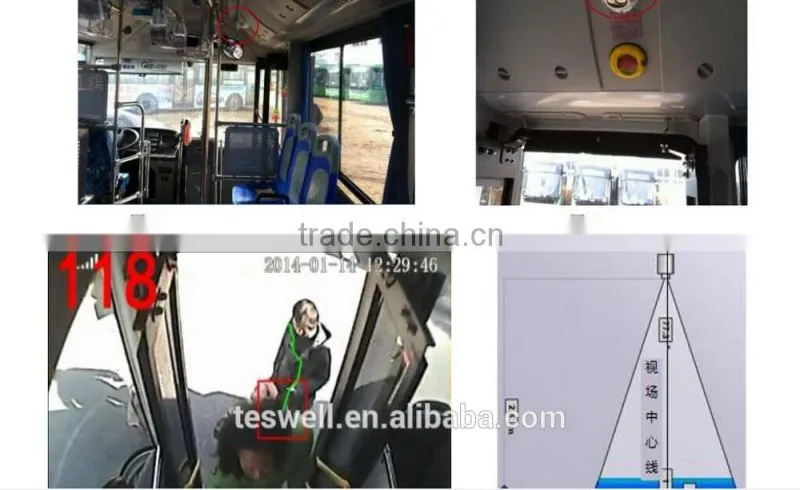

Applications:
- Bus & Coaches
- Truck and Trailers
- Taxi’s & Cabs
- Police & Emergency Vehicles
- Cash in Transit Vehicles
- Remote Site Surveillance
- Railways
You can choose the following vehicle cameras for your DVRs:
Call or Email us for further details!
