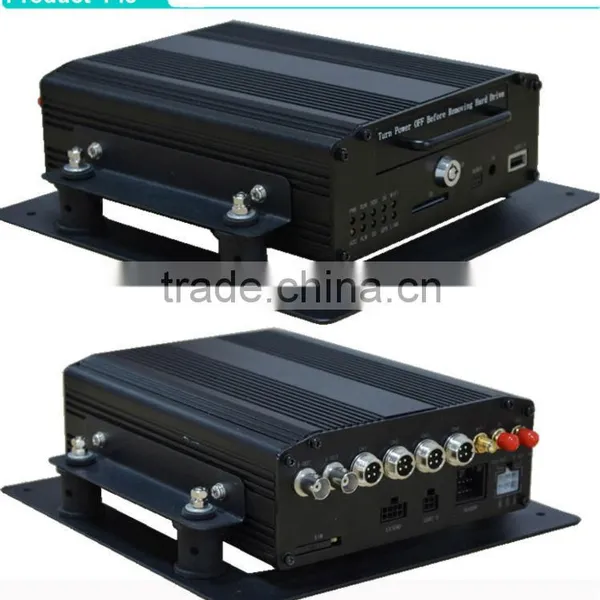

3G realtime mobile phone remote viewing 4CH dvr mobile view with SOS panic button for urgent alarm
1. Support 4 channels, 4 real-time D1, 4HD1, 4CIF with compression of H.264.
2. Support 1TB hard drive.
3. Support G-SENSOR, GPS, 3G(WCDMA), WIFI(802.11B.N.G) optional.
4. Support 4 alarm in, 1 alarm out.
5. Support 8-48V power in.
6. Support -20°C~+60°C working environment.
7. Support our special playback s.w to play the recording.
8. Support our special CMS live manage thousands of vehicle.
9. Support intercom between driver and CMS center.
10. Support 3G and WIFI automatically transition.
11. Have 1 RS232, 1 RS485.
12. Support Android live view.
13. OEM and some customization is acceptable.
14. Support PTZ controlled.
15. CMS can support vehicle tracking.
16. Support using SSD.
17. Supoort Glonass module.
18. Support 1SD card for standby.
Item Name |
4 Channel Mobile DVR Recorder(HDD Storage) |
|
Item Number |
TS-610 |
|
Solutions |
H.264 Main Profile |
|
System |
Operation Language |
Chinese / English |
Operation Interface |
Graphical Interfaces |
|
Password Control |
User Password |
|
Video |
Video Input |
4ch Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
Video Display |
1 Or 4 Screen Display |
|
Viedo Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
|
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
Basic Output Level |
1.0—2.2V |
|
Distortion Plus Noise |
≤-30dB |
|
Recording Mode |
Sound And Image Synchronization |
|
Audio Compression |
ADPCM |
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
Image Format |
4*CIF (352*288), or 4*HD1(720*288), or 4*D1(720*576) |
|
Video Stream |
CIF: 8K-64Kbyte/s; HD1 & D1: 32K-96Kbyte/s; |
|
Video Taking Up Of Hard Disk |
CIF: 28M-230Mbyte / hour / channel HD1 & D1: 115M-340Mbyte / hour / channel |
|
Resolution |
Playback 1 Channel |
|
Video Streaming Standard |
H.264 Main Profile |
|
Audio Bitrate |
4Kbyte / s / channel |
|
Audio Taking Up Of Hard Disk |
14Mbyte / hour / channel |
|
Internal Storage |
1 SATA Hard Disk,Support Max 2T Hard |
|
Image Quality |
Eight Grades to Choose |
|
Alarm |
Alarm in |
4 Channels Independent Input. High Voltage Trigger |
Interface |
USB Port |
Available For USB Disk and Hdd(FAT32)Storage |
GPS,3G,wifi |
Vehicle Tracking and Data Wireless Upload |
|
Others |
Power Consumption |
DC8-48V 5% 8W(without HDD) |
Working Temperature |
-20°C ~ +60°C |
|
Clock |
Built-In Clock, Calendar |
|
Packaging |
Product Size |
213(L)*230(W)*63(H)mm(with Holder) |
Product Weight |
1.9KG(without HDD) |
|
Package |
Each In a Box, 10set/Canton |
|
Box Size |
252(L)*93(W)* 250(H)mm |
|
Carton Size |
500(L)*265(W)* 520(H)mm |
|
Carton Weight |
19kgs/21kgs (without HDD) |
