SEK16JD din rail earthing type electrical connection terminal
Descruotion:
1.General specifications SEK-16JD terminal blocks Compliance with international standards : IEC60947-7-1
2.Terminal can used in TH35 and G32 rail.
3.Insulation material is PA66, Antiflaming and anticorrosion.
4.Small volume, complete range of articles.
5.self locking function, crimping fastness.
Specifications:
| Model Number | SEK-16JD |

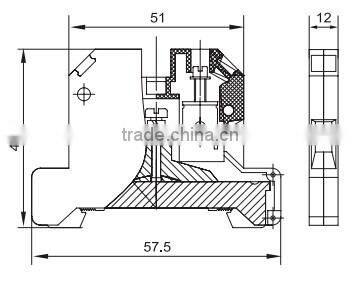

| T/W/H(mm) | 12*57.5*46.5 |
| Clamping screw | M4 |
| Torque | 2.0-2.4NM |
| Stripping Length | 15mm |
| Cross Section | 16mm2 |
| Wire cross section, single stranded wire | 2.5-16mm2 |
| Wire cross section, multi stranded wire | 2.5-16mm2 |
| Wire cross section, with tubular hood | 4-16mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |
SUK-JD series can be install in TH35 and G32 rail. have international standard grounding color ( kelly ), conform to IEC60947-7-2. bottom have screw, connect to the ground lead. handiness and simplicity.
Product shows ( taken in kind ):
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
