10mm Brass Screw Clamp Terminal Block
US$ 0.14 - 0.14
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
sipun
Model Number:
SEK-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAK 2.5mm Screw Type Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces -
SAK 4mm Screw Clamp Type Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
SEK16JD Din Rail Ground Type Screw Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
SEK35JD Ground Type Screw Clamp Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
-
4mm Universal Industrial Electrical Connection Terminal BlockUS$ 0.14 - 0.14MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
sipun
Model Number
SEK-10
Type
Screw Terminal
10mm brass screw clamp terminal block
Descruotion:
1.General specifications SEK-10 terminal blocks Compliance with international standards : IEC60947-7-1
2.Terminal can used in TH35 and G32 rail.
3.Insulation material is PA66, Antiflaming and anticorrosion.
4.Small volume, complete range of articles.
5.self locking function, crimping fastness.
Specifications:
| Model Number | SEK-10 |

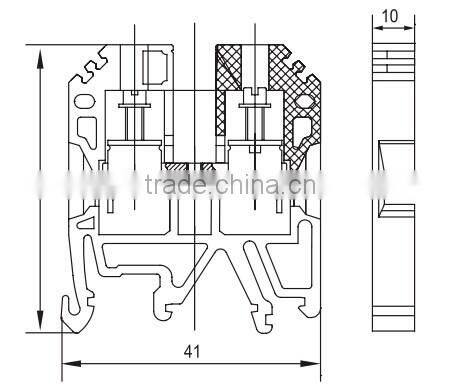

| T/W/H(mm) | 10*41*46 |
| Clamping screw | M4 |
| Torque | 2.0-2.4NM |
| Stripping Length | 12mm |
| Rated Voltage | 660V |
| Reted Current | 57A |
| Cross Section | 10mm2 |
| Wire cross section, single stranded wire | 1.5-16mm2 |
| Wire cross section, multi stranded wire | 1.5-16mm2 |
| Wire cross section, with tubular hood | 0.5-10mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

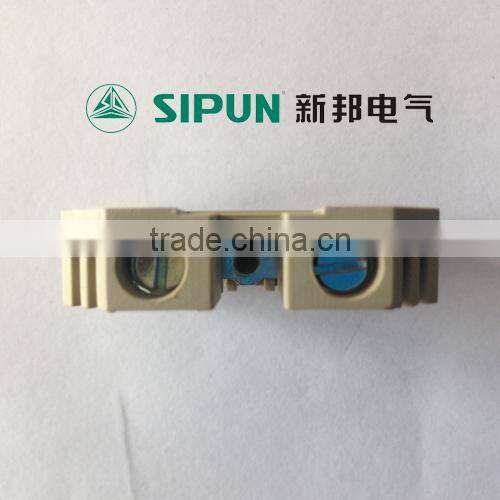

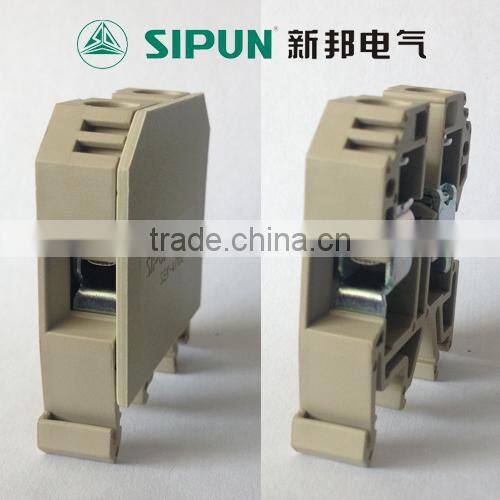

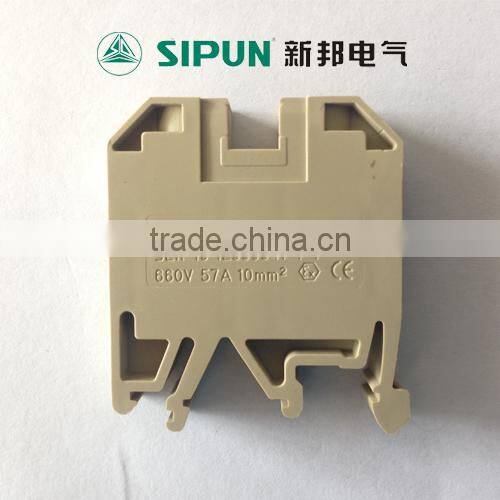

Product shows ( taken in kind ):
we can customize your color:

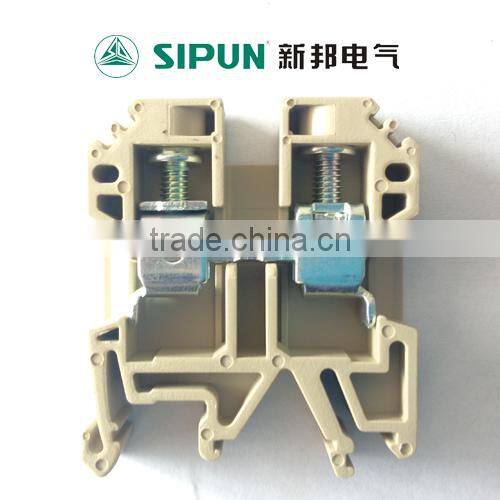

Parts:

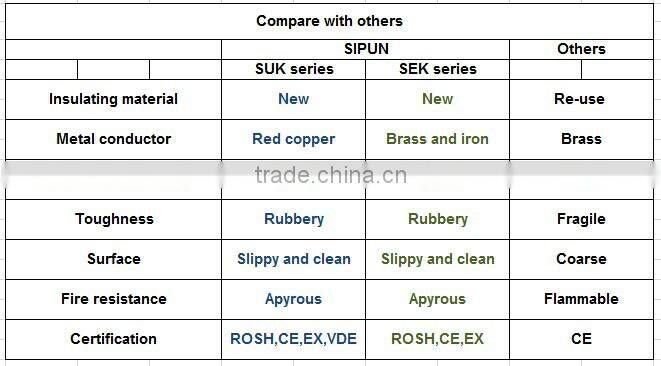

Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
