Jiangsu Late Technology Mini Waste Metal Baler Machine on Sale

Jiangsu Late Technology Mini Waste Metal Baler Machine on Sale thumbnail-1
Jiangsu Late Technology Mini Waste Metal Baler Machine on Sale photo-1
US$ 14500.00 - 14500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Other, Machinery & Hardware, Other
Packaging Type:
Other, nude
Contact Supplier Request Quote Chat Now
Jiangsu Gaode Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai for jiangsu late technology mini waste metal baler machine on sale
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Other, Machinery & Hardware, Other
Packaging Type Other, nude
Packaging Material Other
Automatic Grade Semi-Automatic
Driven Type Hydraulic
Voltage 220V/380V
Power 15kw
Place of Origin Jiangsu, China
Brand Name gaode
Model Number HC81F-1250
Weight none
Dimension(L*W*H) 1200*600*500mm
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

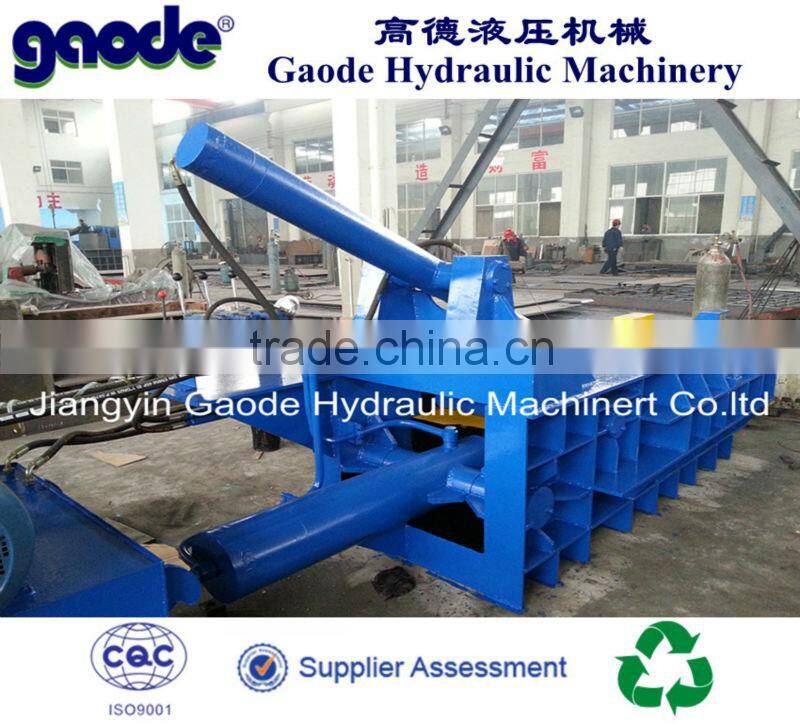

HC81F-1250 Metal baler

jiangsu late technology mini waste metal baler machine on sale



Applications

HC81 series of hydraulic metal balers are applicable in steel plants,recycling companies,ferrous&non-ferrous smelting industry to press metal scraps(steel,copper,aluminum ,stainless steel ,discarded automobiles) into acceptable furnace charges(shapes:cuboid ,cyclinder or octagon), so as to reduce cost of transportation ,to increase speed of furnace charging.





Features

(1)Hydrualic drive for all machines types ,manual valve control or PLC control ,Bale-discharging :turn-out ,push-out  ,forward-out or manual dscharging.



(2) No footing bolts needed in installation :diesel engine can be equiped for power.

(3) Baling force 10 grades from 63 to 400 tons ,productivity from 4 to 40 tons per shift(8 hours)

(4) Press box size ,bale size&bale shape can be customized.





Technical Specifications:



NO

TECHNICAL SPECIFICATIONS

REMARKS

1

Nominal Force

1250KN



2

Press Box Size (L*W*H)

1200*600*500mm



3

Bale Size (W*H)

200*200mm



4

Bale Density

≥1800 kg/m3



5

Operation&Control

Manual valve



6

Bale Discharging

Turn-out



7

Capacity

1000~1200 kg/h



8

Hydraulic System Pressure

21.5MPa



9

Cycle Length

App.120Sec





10

Motor

Model

Y160L-6

Quantity

1 set



Nominal Speed

970rpm

Nominal Power

15KW



11

Hydraulic Pump

Model

63YCY14-1B

Quantity

1 set



Nominal Outflow

63ml/r

Nominal Pressure

31.5MPa

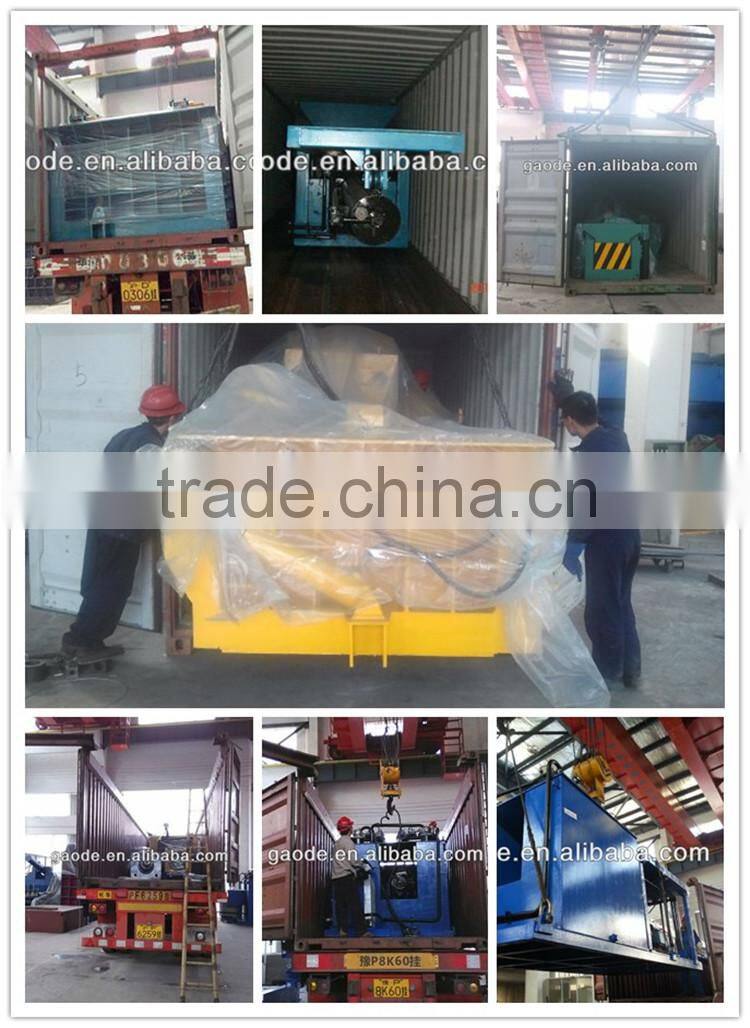

Packaging & Shipping



Packaging Detail: in nude

Delivery Detail:   20-25 working days

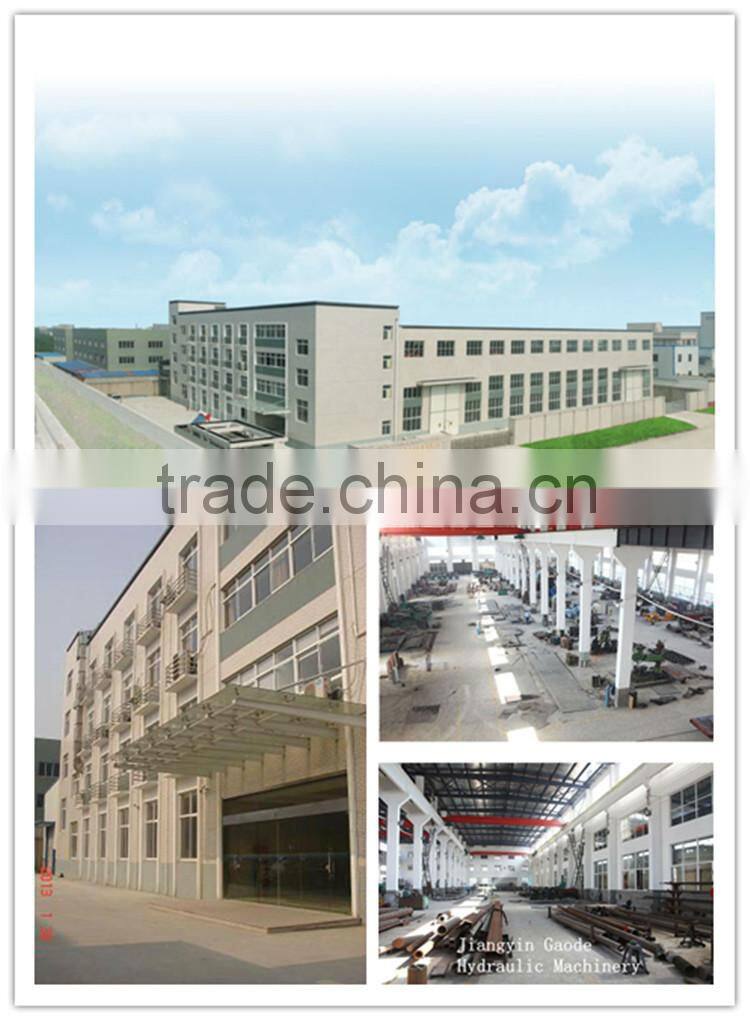

Company Information

GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.

Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.



Trade Shows



Certifications



Our Services

Guarantee and after-sale service

6months guarantee for whole machine

24hours technical support by email

Calling or door to door service

User manual and detailed video

FAQ

Q1:Can I add my logo on the machines?

A: Yes,OEM and ODM are available for us.

      But you should send us the Trademark authorization letter.

Q2:How can i get the after-service?

 A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

Q3:Do you have inspection procedures for machines?

A:100% self-inspection before packing

Q4:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.
   Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

Q5: Can we order one set machine?

 A:Yes, you can.
