HC81F-1250 Metal baler
Applications:
HC81 series of hydraulic metal balers are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: Cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features:
1, Hydraulic drive for all machine types, manual valve control or PLC control.
2, Bale-discharging: " turn-out", " push-out ", " forward-out" or manual discharging.
3, No footing bolts needed in installation; Diesel engine can be equipped for power.
HC81/F-1250 Metal Baler -- Technical Specifications
NO |
TECHNICAL SPECIFICATIONS |
REMARKS |
|||||
1 |
Nominal Force |
1250KN |
|
||||
2 |
Press Box Size (L*W*H) |
1200*700*600mm |
|
||||
3 |
Bale Size (W*H) |
300*300mm |
|
||||
4 |
Bale Density |
≥1800 kg/m3 |
|
||||
5 |
Operation&Control |
Manual valve |
|
||||
6 |
Bale Discharging |
Turn-out |
|
||||
7 |
Capacity |
1000~1500 kg/h |
|
||||
8 |
Hydraulic System Pressure |
25MPa |
|
||||
9 |
Cycle Length |
App.120Sec |
|
||||
|
10 |
Motor |
Model |
Y160L-6 |
Quantity |
1 set |
|
|
Nominal Speed |
970rpm |
Nominal Power |
15KW |
|
|||
11 |
Hydraulic Pump |
Model |
63YCY14-1B |
Quantity |
1 set |
|
|
Nominal Outflow |
63ml/r |
Nominal Pressure |
31.5MPa |
||||

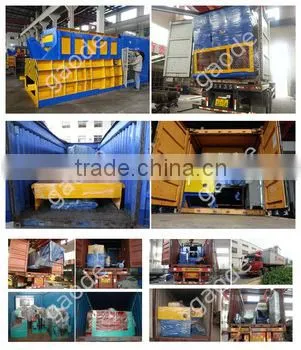

Production Process
| Packaging Details: | nude |
|---|---|
| Delivery Detail: | 30 days |
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
Contact Information:
Christin
Jiangsu Gaode Hydraulic Machinery Co.,Ltd
Tel:86-510-86996082
Fax:86-510-86993993
Mobile: 15261635390
Website: /enzhuye.asp
