Help CenterGeneral Relay Mini Electrical Relay 12V 24V 10A 250VAC NT74(HF118F)
Related Products
-
Power Relay Mini Electrical Relay 12V 24V 8A 10A 250VAC NT75(HF115)US$ 0.8 - 1.5MOQ: 500 Pieces -
Automotive Relays 4 Pin 5pin 12V 24V 60A 40AWM634-YUS$ 0.7 - 1.2MOQ: 500 Pieces
-
Automotive Relays Miniature Relay 4 Pin 5pin 12V 40A 24V WM680US$ 0.5 - 1MOQ: 200 Pieces
-
Automotive Relays Miniature Relay 12V 30A 5 Pin WM716US$ 0.5 - 1.5MOQ: 500 Pieces
-
Automotive Relays Mini PCB Relay 12V 20A 5 Pin WM664US$ 0.5 - 1MOQ: 500 Pieces
P1 Features
1. Small size, light weight.
2. Low coil consumption.
3. PC board mounting.
4. Suitable for household electrical appliances, automation system, electrical equipment, instrument,
meter telecommunication facilities and remote control facilities.
P2 Ordering Information
NT74 |
- 1C |
- S |
- 10 |
-DC12V |
|
|
1 |
2 |
3 |
4 |
5 |
|
|
|
1 Part number:NT74 2 Contact Form: 1A: 1A; 1C: 1C; C2:1C2; 2A:2A; 2B:2B; 2C:2C 3 Enclosure:S: Sealed type; Z: Dust cover 4 Contact rating:1A,1C:8A,10A/250VAC 30VDC; 2A,2B,2C:5A/250VAC 30VDC 5 Coil rated voltage(V): DC:5,6,9,12,18,24,48,60 | ||||||
P3 Contact Data
Contact Form |
1A(1H) SPSTNO 1C(1Z) SPDT(B-M)) 1C2(1Z2) SPDT(B-M) 2A(2H) DPSTNO 2B(2D)(DPSTNC) 2C(2Z) DPDT(B-M)) |
|
Contact Material |
Ag Alloy |
|
Contact Rating (resistive) |
1A, 1C, 1C2 |
2A, 2B, 2C |
10A/250VAC, 30VDC |
5A/250VAC, 30VDC |
|
Max. Switching Voltage |
440VAC 125VDC |
|
Max. Switching Current |
10A |
|
Max. Switching Power |
1A,1C,1C2:300W 2500VA, 2A,2B,2C:150W 1250VA |
|
Contact Resistance or Voltage drop |
≤100mΩ |
|
Electrical Life |
100000 cycles |
|
Mechanical Life |
10000000 cycles |
|
P4 Operation condition
Insulation Resistance |
1000MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 2500VAC / 1 minute |
Between Coil and Contacts |
50Hz 5000VAC / 1 minute |
|
Terminals strength |
10N |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 35% ~ 85% (at 40℃) | |
P5 Layout

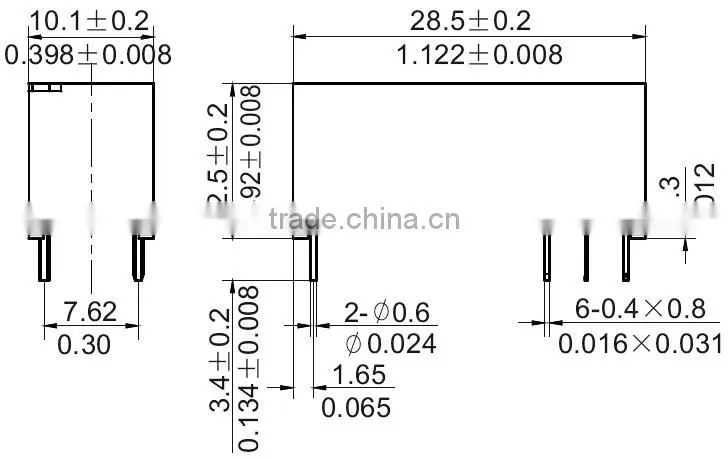

| Dimensions | Wiring diagram (Bottom views) |
|
|

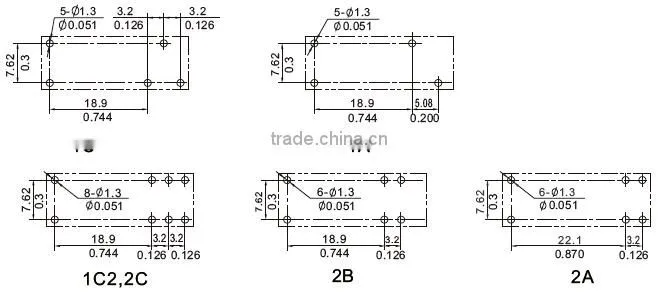

P6 Terminal Layout (Bottom views)
|
|

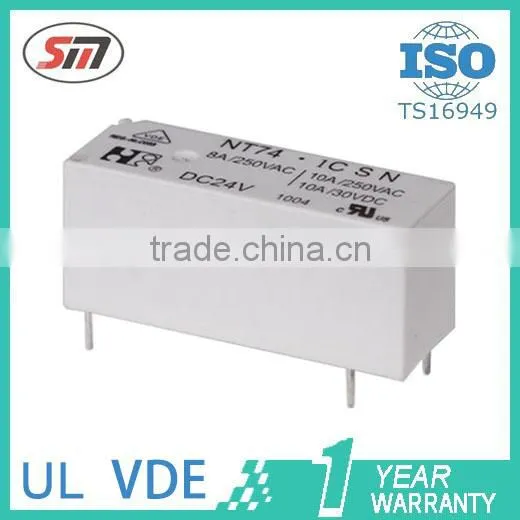

P7 Relay Photo
P8 Packing
25 pcs / inner box, 2000 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
