P1 Features
1. Miniature;
2. Contact load capacity up to 60A;
3. Terminal types as inserting;
4. Suitable for automobile.
P2 Ordering Information
WM633 |
- 12 |
- A |
- R |
P |
60 |
|
|
1 |
2 |
3 |
4 |
5 |
6 |
|
|
|
1 Part number:WM633 2 Coil rated Voltage(VDC):6: 6V;12: 12V;24: 24V;48: 48V 3 Contact Form:A: 1A;B: 1B;C: 1C;U: 1U;2A: 2A |
4 Coil transient suppression: D: with diode; R: with resistance;Nil: standard 5 Terminals:P: PCB type;Nil: plug in type 6 Contact load: 60:60A; 40: 40A |
||||||
P3 Contact Data
Contact Form |
1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)),1U(SPSTNODM),2A |
||||
Contact Material |
Ag Alloy |
||||
Contact Rating (resistive) |
|
1A |
1B |
1C |
2A,1U |
60 |
60A/14VDC |
40A/14VDC |
NO: 60A/14VDC NC: 40A/14VDC |
2×30A/14VDC |
|
40 |
40A/14VDC |
30A/14VDC |
NO: 40A/14VDC NC: 30A/14VDC |
2×20A/14VDC |
|
Max. Switching Voltage |
75VDC |
||||
Max. Switching Current |
60A/40A |
||||
Max. Switching Power |
840W/560W |
||||
Contact Resistance or Voltage drop |
≤100mΩ |
||||
Electrical Life |
1×105 cycles |
||||
Mechanical Life |
1×107 cycles |
||||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
100N 50N( for PCB type) |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |

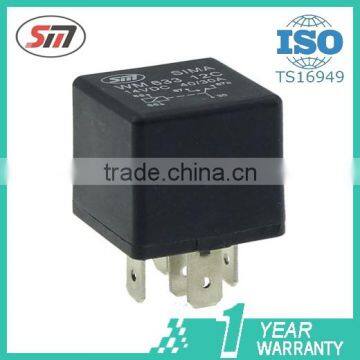

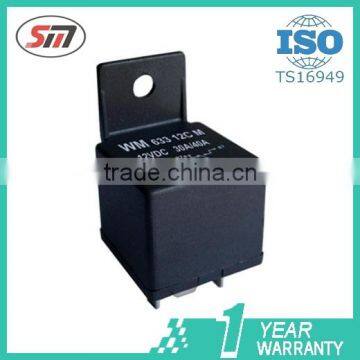

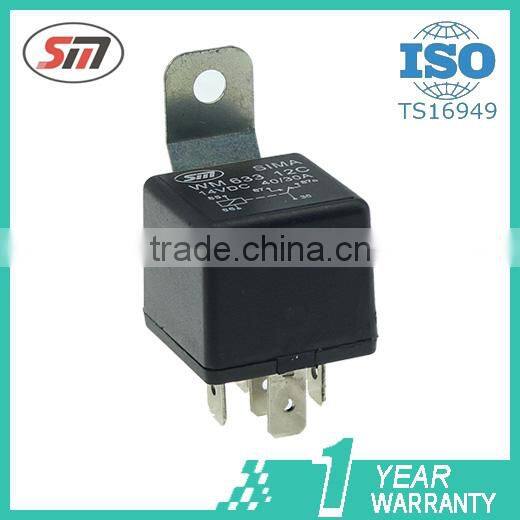

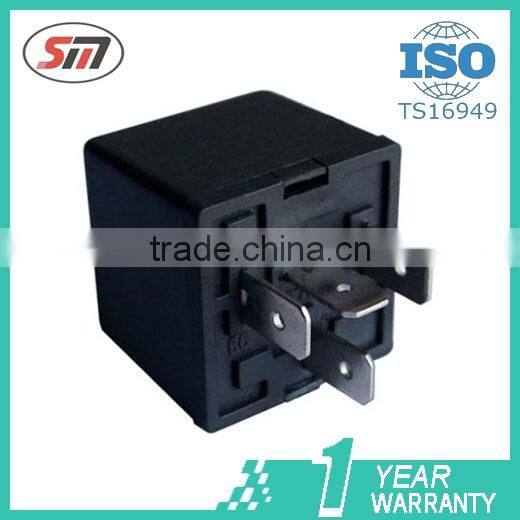

P5 Relay Photo
| Metal Bracket | Plug in type |
|
|

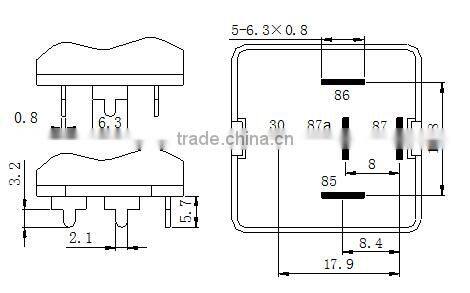

P6 Terminal Layout (Bottom views)
|

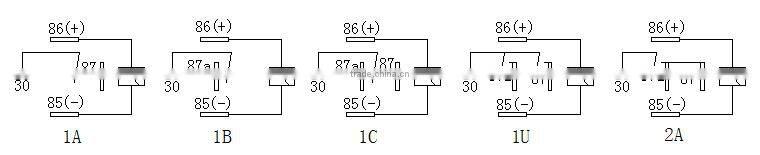

P7 Wiring diagram (Bottom views)
|
P8 Packing
20 pcs / inner box, 20 inner box / carton, 400 pcs / carton
