Help CenterAutomotive Power Relays Mini PCB Relay 5 Pin 6 Pin 12V 220V 30A WM690
Related Products
-
Automotive Relays Mini Relay12V 30A 24V 4 Pin WM710US$ 0.5 - 1.5MOQ: 500 Pieces -
Automotive Relays Auto Relay 4 Pin 5 Pin12V 24V 40A WM732US$ 0.8 - 1.5MOQ: 500 Pieces
-
Automotive Relays Small Relay 12V 40A 60A WM636US$ 0.8 - 1.5MOQ: 800 Pieces
-
Automotive Relays Auto Relay 12V 24V 40A 4 Pin WM734US$ 0.8 - 2MOQ: 500 Pieces
-
Automotive Relays Small Relay 12V 24V 40A 60A 4 PIN 5 PIN WM633US$ 0.6 - 1MOQ: 800 Pieces
P1 Features
1.Superminiature;
2.Contact load capacity up to 20A at 14VDC;
3.Terminal types as inserting;
4.Pc board mounting;
5.Suitable for household appliances, electrical equipment,automation system, and automobile industry application.
P2 Ordering Information
WM660 |
- 12 |
- A |
- S |
|
|
|
1 |
2 |
3 |
4 |
|
|
|
|
1 Part number: WM690 2 Coil rated voltage(VDC): 6: 6V;9: 9V;12: 12V;24: 24V 3 Contact form: A: 1A; B: 1B; C:1C 4 Enclosure: S: Sealed type ; D: Dust cover ; Nil: Open type
| ||||||
P3 Contact Data
Contact Form |
1A, 1B, 1C |
|||
Contact Material |
Ag Alloy |
|||
Contact Rating (resistive) |
1A |
1B |
1C |
|
30A/240VAC |
20A/240VDC |
NO:30A/240VAC NC:20A/240VAC |
|
|
Max. Switching Voltage |
240VAC |
|||
Max. Switching Current |
30A |
|||
Max. Switching Power |
7200VA |
|||
Contact Resistance or Voltage drop |
≤50mΩ |
|||
Electrical Life |
1×105 cycles |
|||
Mechanical Life |
1×107 cycles |
|||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
10N |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |

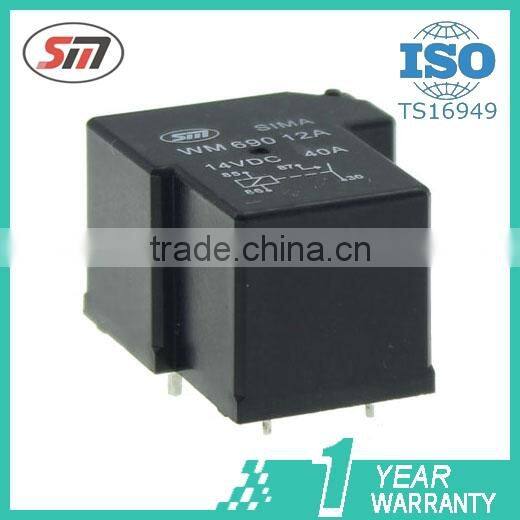

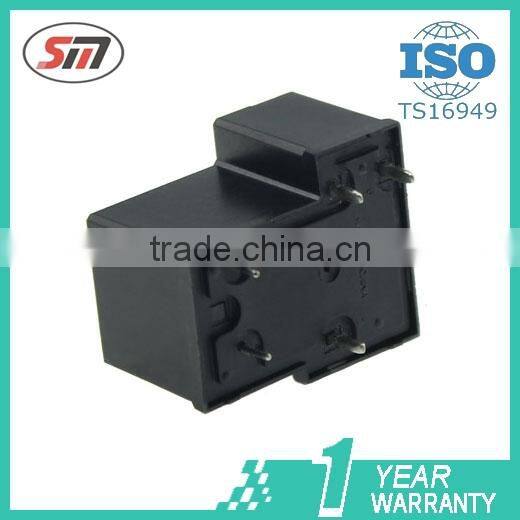

P5 Relay Photo
|
|

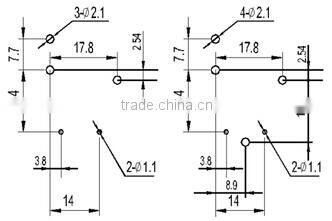

P6 Layout (Bottom views)
| Sealed type or Dust cover |
Open type |
|
|

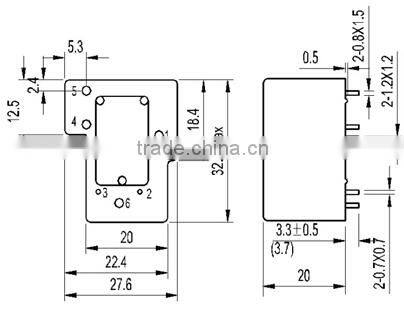

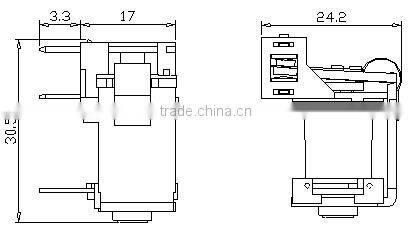

P7 Terminal (Bottom views)
|
P8 Packing
20 pcs / inner box, 500 pcs / inner carton, 1000 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
