P1 Features
1. Miniature;
2. Terminal types as inserting;
3. Surface mount advanced technology;
4. Suitable for automobile wiper.
P2 Ordering Information
WM WR19 |
- 12 |
- M |
- B |
|
|
|
1 |
2 |
3 |
4 |
|
|
|
|
1 Part number:WM WR19(L*W*H:30*30*39); WM WR1930(L*W*H:30*30*30) 2 Rated Voltage(VDC):12: 12V; 24: 24V 3 Cover:M: Metal Bracket;Nil: No Bracket
| ||||||
P3 Contact Data
Model |
Rated Voltage (VDC) |
Operating Voltage (VDC) |
Rated Load (W) |
Dimensions (mm) |
WM WR19-12 |
12 |
10~15 |
50 |
30×30×39 |
WM WR19-24 |
24 |
20~30 |
50 |
30×30×39 |
WM WR1930-12 |
12 |
10~15 |
50 |
30×30×30 |
WM WR1930-24 |
24 |
20~30 |
50 |
30×30×30 |
P4 Operation condition
Cleaning Wiper Time |
4~6s |
Intermittent Wiper Time |
4~6s |
Electrical durability |
1×105@ 50W |
Voltage drop |
≤150mV (5A) |
Shock resistance |
196m/s2 |
Vibration resistance |
10~200Hz 49m/s2 |
Terminals strength |
100N |
Ambient Temperature |
-40℃~85℃ |
|
|

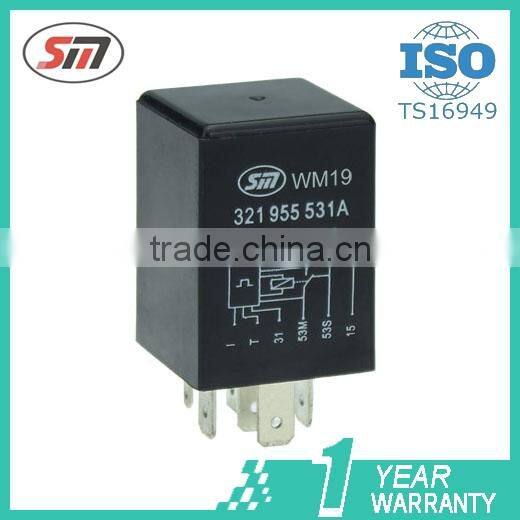

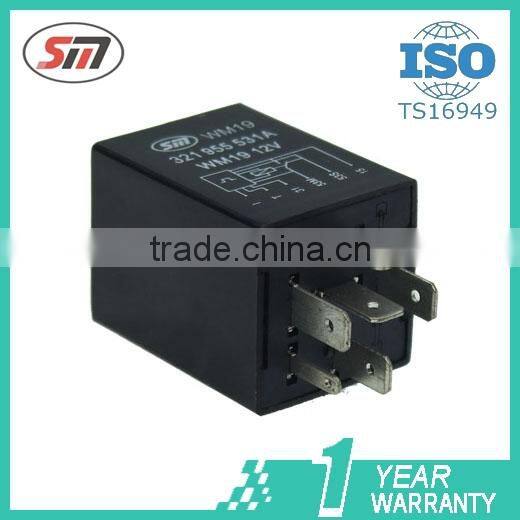

P5 Wiper Relay Photo
|
|

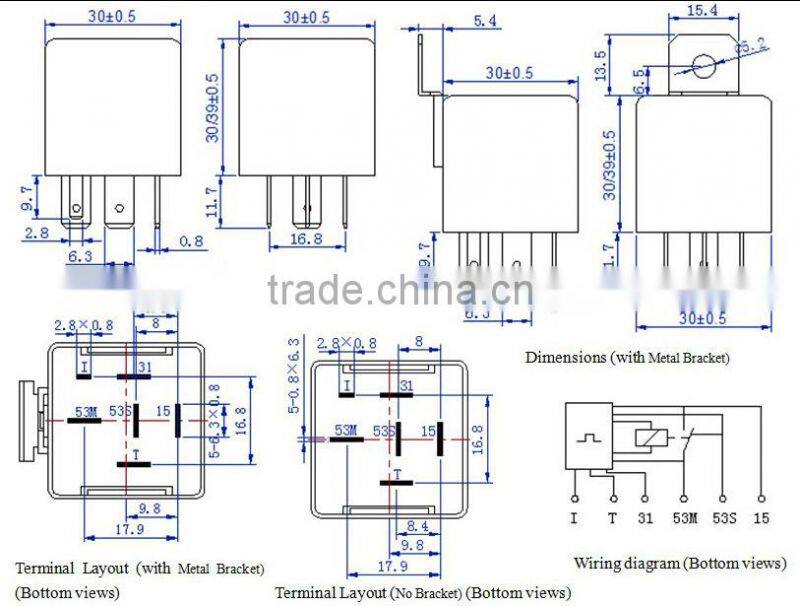

P6 Layout (Bottom views, Unit: mm)
Dimensions / Wiring diagram (Bottom views) |
|

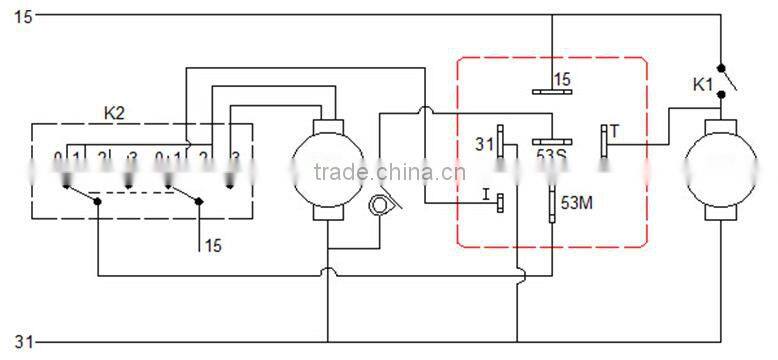

P7 Application Wiring Diagram
|
M1:Cleaning pump,M2:Wiper motor,K2:Combined switch,K1:Cleaning switch
|
P8 Packing
20 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
