P1 Features
1. Contact load capacity up to 80A;
2. Terminal types as inserting;
3. Suitable for automobile;
4. Car start-up relay.
P2 Ordering Information
WM901 |
- 12 |
- A |
|
|
|
|
1 |
2 |
3 |
|
|
|
|
|
1 Part number:WM901 2 Coil rated Voltage(VDC):12: 12V;24: 24V 3 Contact Form: A: 1A
| ||||||
P3 Contact Data
Contact Form |
1A(SPSTNO) |
|
Contact Material |
Ag Alloy |
|
Contact Rating (resistive) |
1A |
|
80A/14VDC |
|
|
Max. Switching Voltage |
75VDC |
|
Max. Switching Current |
80 |
|
Max. Switching Power |
1120W |
|
Contact Resistance or Voltage drop |
≤100mΩ |
|
Electrical Life |
1×105 cycles |
|
Mechanical Life |
1×107 cycles |
|
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
100N |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |

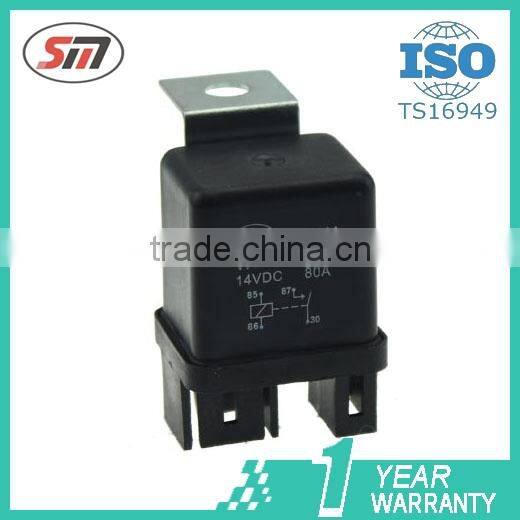

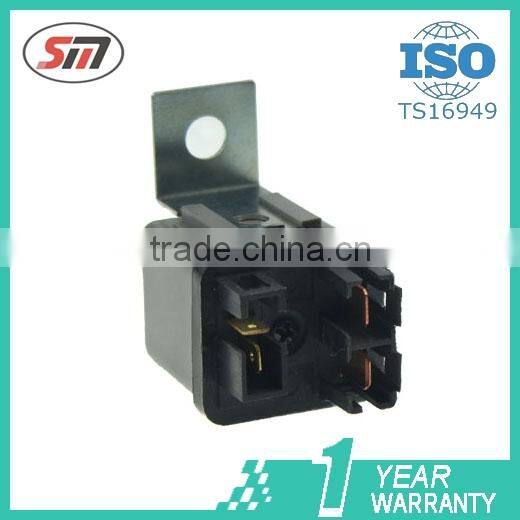

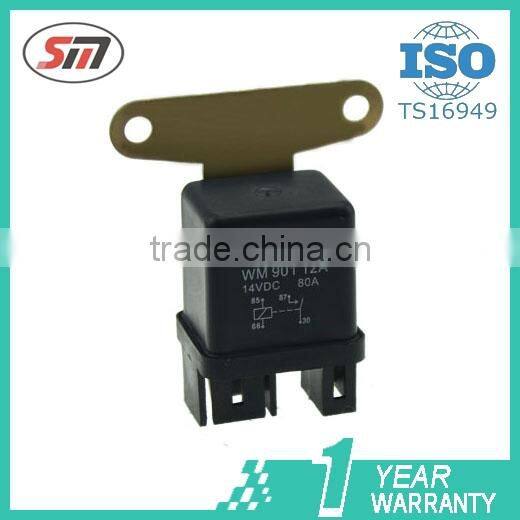

P5 Relay Photo
|
|
|

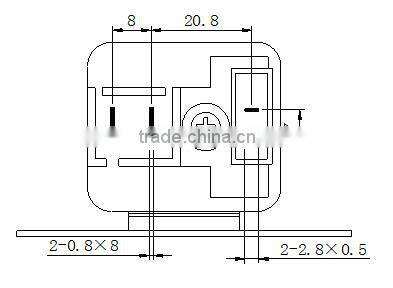

P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
|
|
P8 Packing
25 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
