Help CenterDn150 Butterfly Valve
US$ 1 - 1,000
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Low Pressure
Power
Manual
Material
Casting
Temperature of Media
Normal Temperature
Media
Other, Gas, water, oil
Port Size
DN25-DN1200
Place of Origin
Shandong, China
Model Number
E10
Brand Name
EATHU

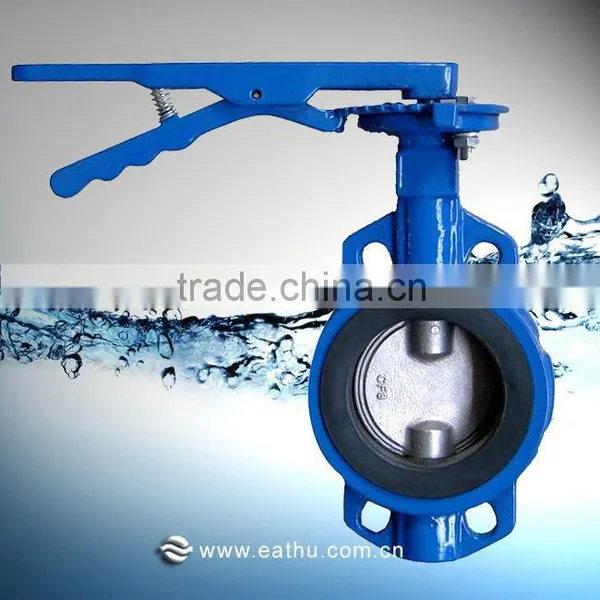

dn150 butterfly valve
1. Material
| Body | cast iron, ductile iron |
| Disc | cast iron, ductile iron |
| Stem | carbon steel, stainless steel |
| Seat | EPDM, PTFE, NBR |
| Bushing | PTFE, Bronze |
2. Specifications
| Size | DN25-1200 (1”-48”) |
| Pressure | PN10/16( 150/200 PSI) |
| Actuator | handle/gear box /pneumatic /electric |
| Standard | API, ASTM, ANSI , DIN, BS, JIS ,ISO |
| Connection | wafer type, flange type, lug type |
3. Features:
Wafer, lug or U type flanged body style fit between FF or RF flanges.
PTFE bushing ensure the maximum shaft support and centralized alignment360 degree polished disc assures positive on-off;
Long service life, standing the test of tens thousands opening/closing operations;
Bubbles-tight sealing with no leakage under the pressure test;
Wide selection of materials , applicable to various medium
Welcome your enquiry and you will find a Reliable Supplier!
