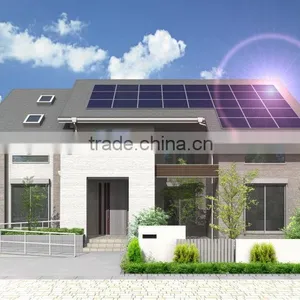

Help CenterNew Design 10kw Solar pv Gird Tie Inverter With Solar Cell Panels for Home on Grid Solar Energy Systems
Related Products
-
High Effective On Gird Solar Power System 10kwUS$ 1.00 - 1.00MOQ: 10000 Watts -
On Gird 10KW Solar Panel System For Home AppliancesUS$ 1.00 - 1.00MOQ: 10000 Watts
-
Industrial Application on Gird 10kw Solar System Power PlantUS$ 1.00 - 1.00MOQ: 10000 Watts
-
Whole House on Grid 10KW Home Solar Power SystemUS$ 1.00 - 1.00MOQ: 10000 Watts
-
Sustainable Roof 10KW Whole House on Grid Solar Power System With CE ROHS ApprovedUS$ 1.00 - 1.00MOQ: 10000 Watts
| Norminal Power of PV Generator (W) | 10KW | |||
| Nominal AC Voltage | 220V-240V | |||
| Nominal AC Frequency | 50Hz/60Hz | |||

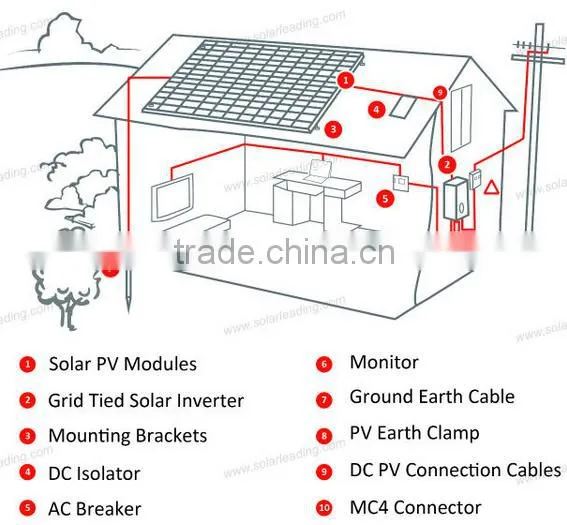

| Item | Model No. | Quantity | ||
| 1 | Solar PV Modules | 250W Poly Crystalline | SL6P60-250Watt | 40 |
| 2 | Grid Tied Solar Inverter | Suntree 10000TL | 1 | |
| 3 | Mounting Brackets | Tile roof | JX-1001 | 1 |
| 4 | DC Isolator | Water Proof IP67 | DC600V | 2 |
| 5 | AC Breaker | Water Proof IP65 | Air Breaker 440V | 1 |

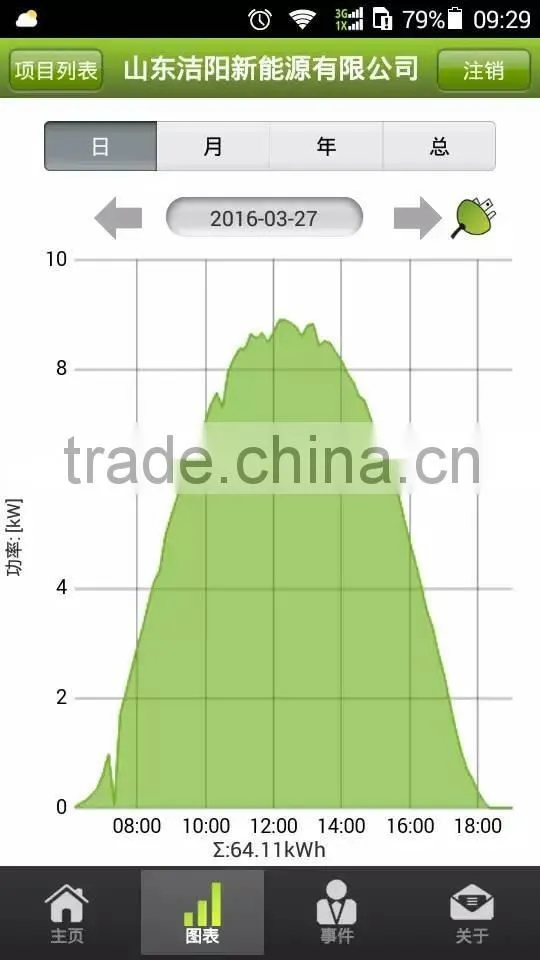

| 6 | Monitor | Wifi Monitor | 1 | |
| 7 | Ground Earth Cable | 6 S.q.mm | 100 | |
| 8 | PV Ground Earth Clamp | Copper with screws | 80 | |
| 9 | DC PV Connection Cables | 4/6 S.q.mm | 100 | |
| 10 | MC4 Connectors | SLMC4 | 6 | |
Details:

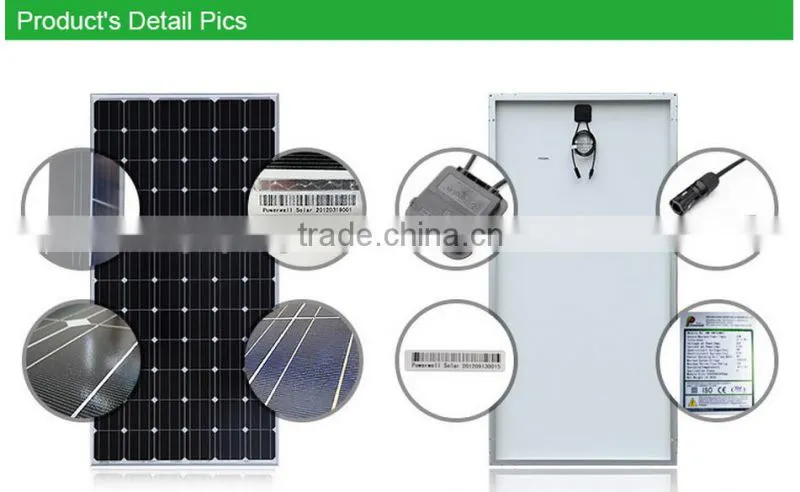

Type |
Polycrystalline Silicon PV Module |
40 pcs |
|||
Max Power |
250W |
||||
Vmp |
30.5V |
||||
Imp |
8.20A |
||||
Size |
1655*992*50 mm |
||||
Weight |
22.5kg/pc |
||||
25 years power output guarantee | |||||
On-grid Inverter | |||||
Max. DC Input Power |
10500W |
1 pc |
|||
Max. DC Input Voltage |
1000V |
||||
MPPT Voltage Range |
300~1000V |
||||
Rated AC Output Power |
10000W |
||||
Max AC Output Power |
10000W |
||||
Max. Efficiency |
98.0% |
||||
Display |
LCD |
||||
Grid Frequency |
50/60 |
||||
Warranty |
5 years |
||||

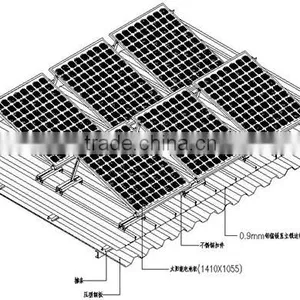

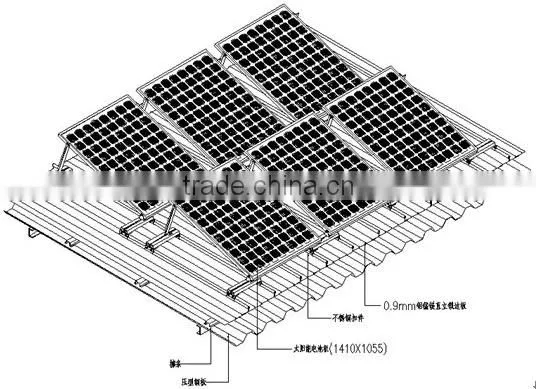

Solar Panel Rack | |||||
Type |
Slope steel tile roof type mounting rack |
1 set |
|||
Cables | |||||
Length |
100m |
||||
Certifications |
CE RoHS |
||||
Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.
Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .
Why Choose Jieyang?
1.Quality Focused
“Making Reliable Products” is the core business fundamental of our company. We implement an IEC complied quality system in the production for the unique purpose: Jieyang ONLY DELIVERS RELIABLE SOLAR PRODUCTS. For more details please refer to Jieyang Quality Control System.2.Customer-centric Services
Jieyang rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.
3.ISO Accredited Factory
With total area of 15000 m2, Jieyang’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4.TüVCertified Products
All of our solar panels have passed successfully the German TüV Certification Tests - the most rigorous and worldwide recognized quality standards.
5.System-wide Solutions
In association with partners, Jieyang provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
6.Professional Team
Jieyang has created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
