High power wholesale 1kw solar pv system
- 10000000 Watt / Watts per Month
- Tianjin port
- T/T L/C D/P D/A Credit Card
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Shandong, China | Brand Name: | JIEYANG | Model Number: | JYSY10 |
Specification: | Normal | Application: | Home | Output Voltage (V): | 220V |
Load Power (W): | 800w 1600w 2400w 3200w 4000w | Solar Power (W): | 1KW | Work Time (h): | 24 Hours |
Product Description
1KW OFF-GRID SOLAR SYSTEM | |
Solar panel | 250W,1640*990*40mm, polycrystalline |
Battery | 250AH, Lead-acid battery, maintenance-free |
Inventer& Controller | 5KW 48V |
C-shaped frame | C-type steel, For 1kw |
Battery box | For battery |
Wire and other parts | For 1kw system |
Daily Production | |||||
M200 | Rome | Jo'Burg | Mexico City | Sydney | |
January | 3.65 | 10.23 | 9.6 | 9.25 | |
July | 10.37 | 6.64 | 9.66 | 6.47 | |
Average anual | 7.03 | 8.72 | 9.96 | 8.1 |

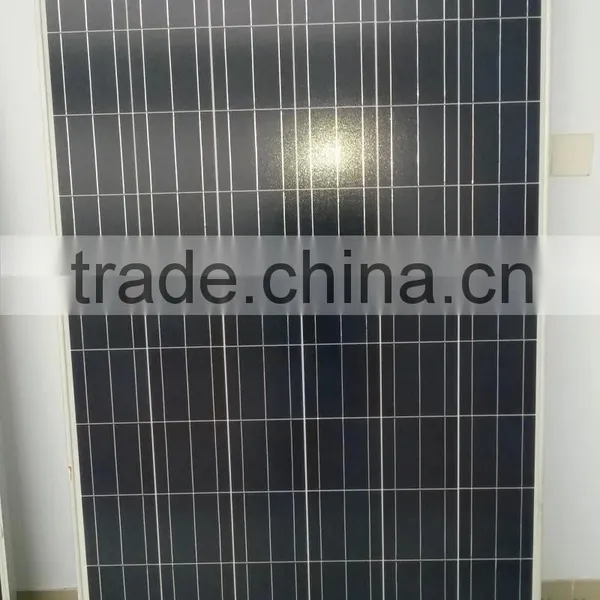

Solar Panel
At standard test-conditions (STC): 1000W/m², cell temperature 25ºC, AM1.5 | |
Max power at STC | 250W |
Voltage at max power | 29.6V |
Current at max power | 8.45A |
Open circuit voltage | 37.9V |
Short circuit current | 9.13A |
Module efficiency | 15.3% |
α P | -0.48%/K |
α Voc | -0.33%/K |
α Isc | +0.02%/K |
NOCT | 46±3ºC |
Mechanical Characteristics | |
Panel cell type | Poly |
Glass | 3.2mm high transmission, low iron, tempered glass |
Frame | Anodized Aluminum Alloy |
Junction box | IP65 |
Dimension | 164*99*45cm |
Weight | 22kg |
Limit Value | |
Max system voltage | 1000V |
Working temperature | -40 to 85ºC |
Largest mechanical load | 540kg/m² |
Company Information
Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .
We have attended many exhibitions such as Indonesia Exhibition,Canton Fair,ect.Cooperative Partner are came from Southeast Asia, USA, Germany , Spain.They have provided our prodect a high repution.ou
OUR PROJECT
a
Why Choose Jieyang?
1.Quality Focused
“Making Reliable Products” is the core business fundamental of our company. We implement an IEC complied quality system in the production for the unique purpose: Jieyang ONLY DELIVERS RELIABLE SOLAR PRODUCTS. For more details please refer to Jieyang Quality Control System.
2.Customer-centric Services
Jieyang rounds out its service portfolio based on every customer’s demands, because we think the customer’s satisfaction is the motive force of growth for the company. Our skilled R&D engineers and customer support teams are always prepared to provide all-round services for our clients.
3.ISO Accredited Factory
With total area of 15000 m2, Jieyang’s manufacturing factory operates under the ISO 9001 and ISO 14001 accredited management systems, which ensure the outstanding quality of our solar products and therefore guarantee the benefits of our clients.
4.TüVCertified Products
All of our solar panels have passed successfully the German TüV Certification Tests - the most rigorous and worldwide recognized quality standards.
5.System-wide Solutions
In association with partners, Jieyang provides complete components for both on-grid and off-grid PV systems: from solar panels to batteries, combiner boxes, inverters, cables and mounting structures. This enables us to offer more customized PV solutions to our clients based on their various requests.
6.Professional Team
Jieyang has created and managed by an experienced team recognized for their passion, professionalism and integrity. All of our executives have outstanding background in solar product manufacturing, corporate governance and international marketing. We work together every day for our aspirations: bringing better product experience to the clients, creating a world-wide respected brand and turning the business success of the company into the professional satisfaction of our employees.
