Help CenterResidential Durable Off Grid 3KW Solar System
Related Products
System Overall
| PV Power (Poly) | 3000W |
| Inverter Power | 3200W |
| Battery | 12pcs 6V 225Ah |
| Battery Capacity | 10800W (48V 225Ah) |
| Case Dimension | 100*95*102cm |
| Case Weight | 295kg |
| Total Weight (Case & panels) | 470kg |
| Optional Tweaks |

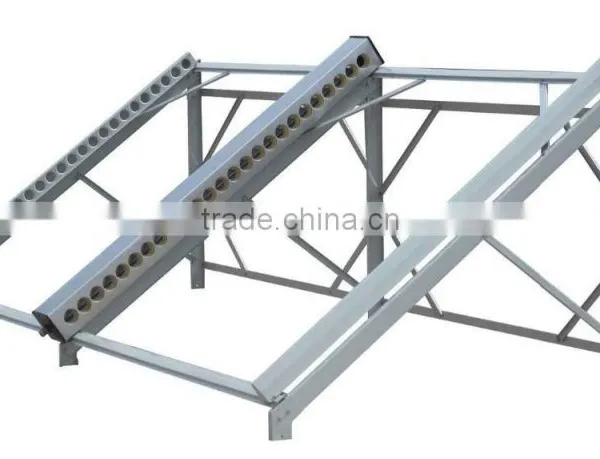

21.6KWh Enhanced Battery DC Output 5V 12V 24V 48V AC Output 110V 60Hz Mounting systems for solar panels PV string combiner box Remote Monitor Control System Add Recharge from Wind Turbine |
| Battery Duration | |
| In the total absence of sunlight, how many working hours are remaining? This chart gives a clear indication. | |
| Power | Time |
| 100W | 170h |
| 500W | 24h |
| 1000W | 10h |
| 3000W | 2.6h |
| 4000W | - |
| 6000W | - |
| 8000W | - |
| Daily Production | |||||
| M200 | Rome | Jo'Burg | Mexico City | Sydney | |
| January | 3.65 | 10.23 | 9.6 | 9.25 | |
| July | 10.37 | 6.64 | 9.66 | 6.47 | |
| Average anual | 7.03 | 8.72 | 9.96 | 8.1 | |
Solar Panel
| Poly 250W | |
| Electrical Characteristics | |
| At standard test-conditions (STC): 1000W/m², cell temperature 25ºC, AM1.5 | |
| Max power at STC | 250W |
| Voltage at max power | 29.6V |
| Current at max power | 8.45A |
| Open circuit voltage | 37.9V |
| Short circuit current | 9.13A |
| Module efficiency | 15.3% |
| α P | -0.48%/K |
| α Voc | -0.33%/K |
| α Isc | +0.02%/K |
| NOCT | 46±3ºC |
| Mechanical Characteristics | |
| Panel cell type | Poly |
| Glass | 3.2mm high transmission, low iron, tempered glass |
| Frame | Anodized Aluminum Alloy |
| Junction box | IP67 |
| Dimension | 164*99*45cm |
| Weight | 22kg |
| Limit Value | |
| Max system voltage | 1000V |
| Working temperature | -40 to 85ºC |
| Largest mechanical load | 540kg/m² |
Company Information
Our company is the solar energy utilization, research and development, production, sales and service in one large provincial high-tech enterprises, technology research and development began in 2003, in September 2008 formally incorporated, registered capital of 50.1 million RMB, the main products include solar energy solar panels, photovoltaic power plants, LED AC and DC solar lamps, household photovoltaic systems and other new energy products.
Based on strong strength and superior quality products, our company have undertaken many urban solar street reconstruction project in Beijing, Jiangsu, Zhejiang, and Shandong provinces and cities. When products meet domestic market demand, simultaneously they are also exported to overseas developed countries, solar cells panels and solar energy lamp have been exported to the United States, Germany, Australia, Ukraine, Spain and other countries. We are praised and recognised by the Customers at home and abroad based on superior product quality .
We have attended many exhibitions such as Indonesia Exhibition,Canton Fair,ect.Cooperative Partner are came from Southeast Asia, USA, Germany , Spain.They have provided our prodect a high repution.
u Normally packing: 1pc/2pcs per carton
