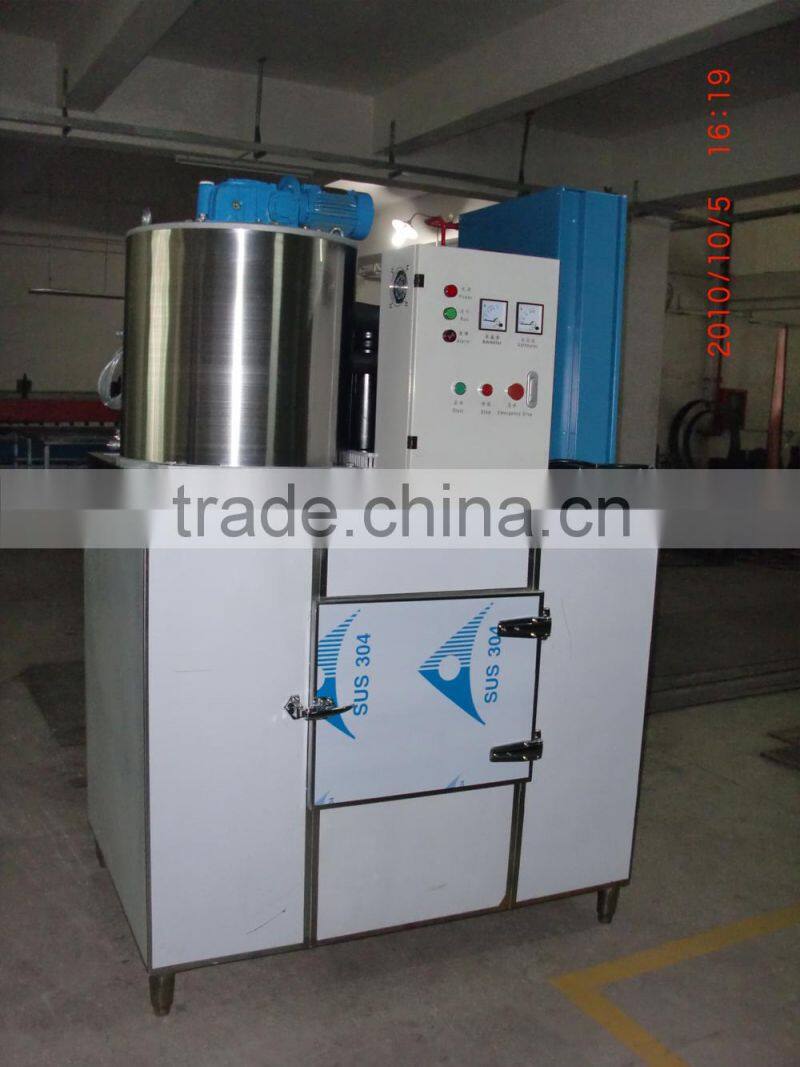

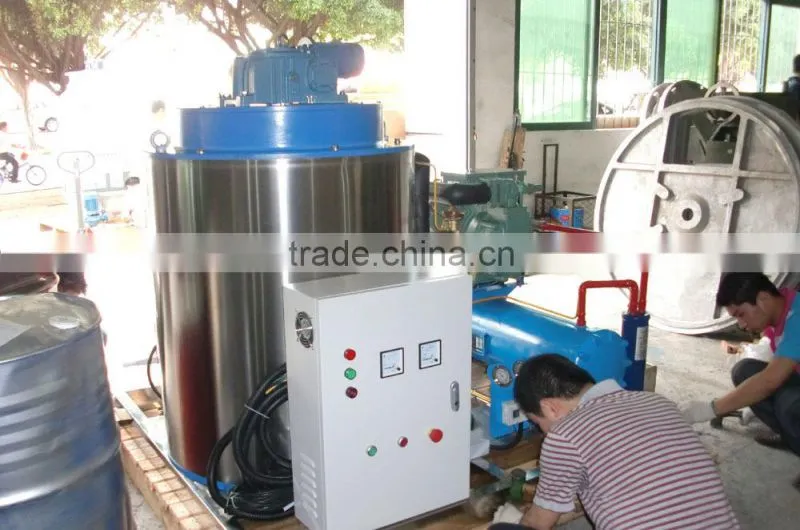

Well after-service available 0.5T industrial flake ice machine for sale, LB-0.5T
Ice Flake Maker machine
1.Compressor Brand: Bitzer, Copeland
2.ice capacity: 0.5-50T
3.ice sheet: 1.5mm-2.5mm
4.delivery: 40 days
1. Chemical: Pigment, dyes, drugs & intermediates
2. Seafood: Fishery, Aquatic Products, off on land/off-shore processing, preservation,
3. Meat & Poultry: preservation, processing
4. Construction: Concrete mixing cooling
Specification
1. Compressor: Bitzer(Germany),PLC:LG(Korea)
2. Standard power supply: 3P/380V/50Hz industrial power.
3. Freshwater, (Salt water is available,if you need)
4. Ice thickness: 1.8~2.2mm
6. Standard working condition: 25°C ambient temperature; 20°C water inlet temperature.
7. Evaporating temp.: -20°C; Condensing temp.: 35°C; Refrigerant: R404/ R22
8. Daily capacity:8Tons,10Tons,15Tons,20Tons,25Tons,30Tons

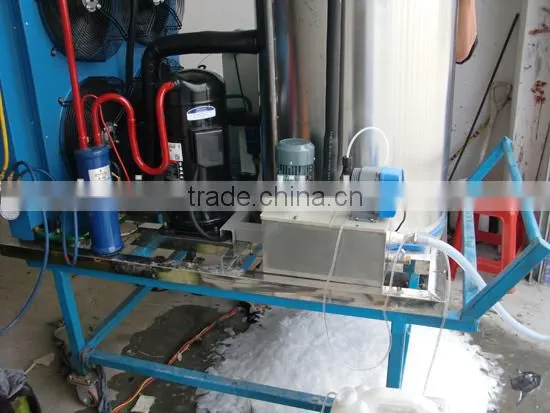

Feature of Compressor Condensing unit:
(1) Bitzer, Copeland, FuSheng, Maneurop compressor
(2) Power: 0.5HP~160HP.
(3) Compressor style: Piston, Screw, Scroll...
(4) All the accessories are of reliable quality, mostly world-famous brands, like Bitzer, Siemens, LG...
(5) Air-cooled and water-cooled Compressor condensing unit are both available.
LB-0.5T Spare parts |
Specifications---LB-0.5T |
||
Type |
Brand/Nation |
Name |
Details |
Compressor |
Copeland/ USA |
Output (kg/24h) |
500kg/24h |
Evaporator |
Lill/ China |
13.7kw |
|
Condenser |
Greenhal/ CN |
Evaporating Temp |
-22°C |
Expansion Valve |
AGCO/USA |
Condensing temp |
40°C |
Filter |
AGCO/USA |
Standard around temp |
25°C |
Pressure controller |
LEILI/CN |
Standard inlet water temp |
18°C |
Decelerator |
KOKI/Taiwan |
Total power |
2.5kw |
Circulatingwater pump |
LILL/CN |
Compressor input power |
2.1kw |
Infrared ray |
ROKO/TAIWAN |
Decelerator power |
0.25kw |
Water Level Switch |
FASTER/Taiwan |
Water pump power |
0.12kw |
Ball float valve |
Keyu/CN |
Cooling fan input power |
0.18kw |
PLC Controller |
LG/Korea |
Supply power |
3p-380v-50Hz |
Contactor |
LG/Korea |
Water supply pressure |
0.1Mpa-0.5Mpa |
LG/Korea |
Refrigerant |
R404A |
|
CKC/Taiwan |
Flake ice temp |
-5°C |
|
CHINT/CN |
Machine set Net Weight |
195kg |
|
Storage bin |
LILL/CN |
Machine set dimension |
1310mm*890mm*780mm |
LILL/CN |
Freezer dimension |
1320mm*900mm*1100mm |
|
| Brine drum | LILL/CN |
Salt water pump power | 0.016kw |

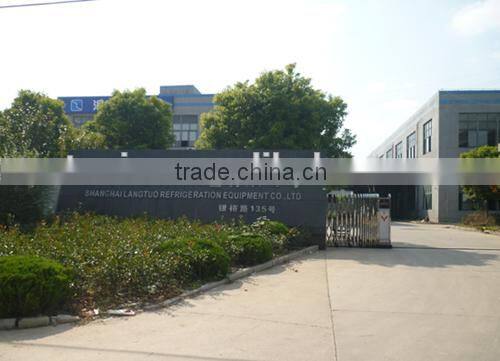

Shanghai Langtuo Refrigeration Equipment Co.,Ltd is a highly reputable and respected ice machine manufacturer. As one of the notable ice machine mnufacturer, Langtuo not only providing ice mchines but also add value to customers by reducing costs and emphasizing product quality with ISO9001:2008 quality certifcate and CE certificate.
With strong abiliies and years' experience in the R&D, manufacturing, service and cutting-edge price, Langtuo is considered to be the right associate in the OEM and ODM, which is many foreign companies looking for. Try to contact us for a good quality ice making machine with the competitive rice!
a. The warranty of each ice maker is 12 months.
b. Online customer service for your service.
c. For any problems or repairments of the machine, you can call our online customer service or you can find the third party to mend it for you while the company supply the relevant small parts within the warranty times.
Shanghai Langtuo Refrigeration Equipment Co.,Ltd has gained the ISO9001:2008 quality certificate and the CE certificate.
