Specifications
flake ice maker machine LB-1.5TSuperior quality
OEM customerised availability
Competitive price
SGS CE RoHS approval

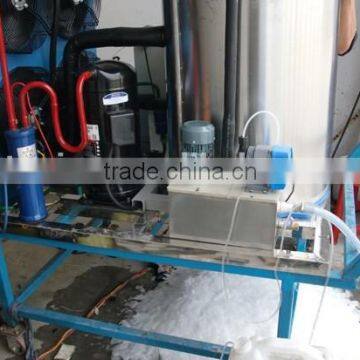

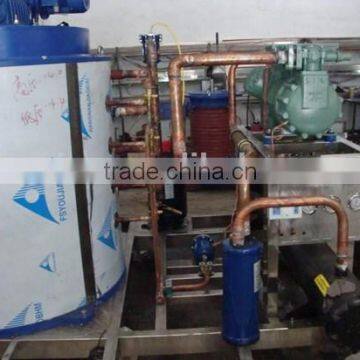

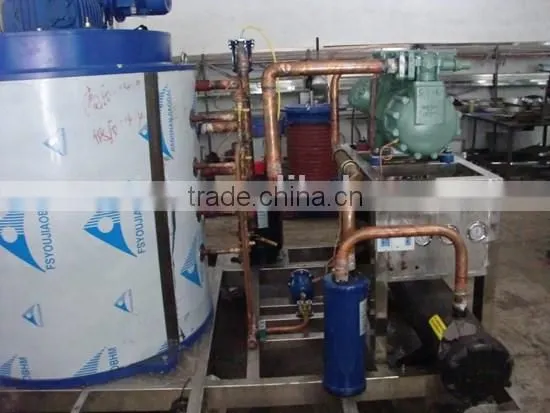

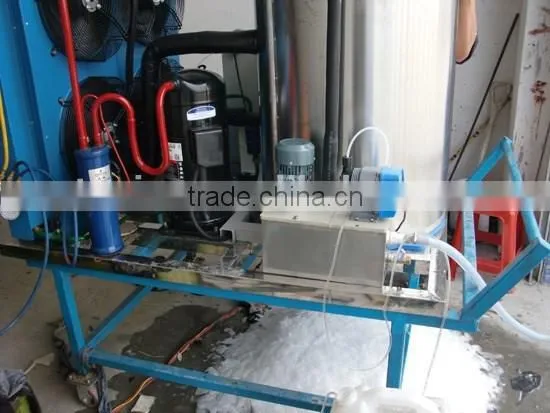

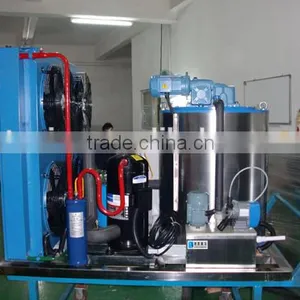

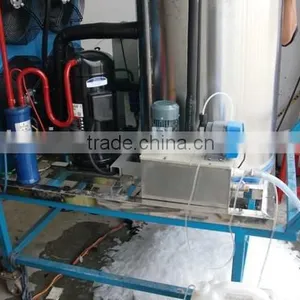

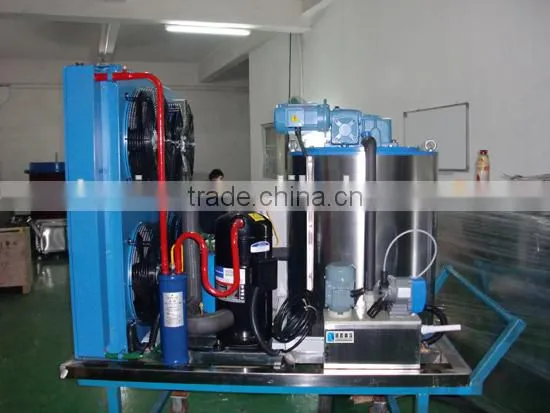

Industrial large daily output salt water flake ice maker machine, LB-1.5T
Ice Flake Maker
1.Brand: Bitzer, Copeland
2.ice capacity: 0.5-50T
3.ice sheet: 1.5mm-2.5mm
4.delivery: 20 days
1. Chemical: Pigment, dyes, drugs & intermediates
2. Seafood: Fishery, Aquatic Products, off on land/off-shore processing, preservation,
3. Meat & Poultry: preservation, processing
4. Construction: Concrete mixing cooling
Specification
1. Compressor: Bitzer(Germany),PLC:LG(Korea)
2. Standard power supply: 3P/380V/50Hz industrial power.
3. Freshwater, (Salt water is available,if you need)
4. Ice thickness: 1.8~2.2mm
6. Standard working condition: 25°C ambient temperature; 20°C water inlet temperature.
7. Evaporating temp.: -20°C; Condensing temp.: 35°C; Refrigerant: R404/ R22
8. Daily capacity:8Tons,10Tons,15Tons,20Tons,25Tons,30Tons
Feature of Compressor Condensing unit:
(1) Bitzer, Copeland, FuSheng, Maneurop compressor
(2) Power: 0.5HP~160HP.
(3) Compressor style: Piston, Screw, Scroll...
(4) All the accessories are of reliable quality, mostly world-famous brands, like Bitzer, Siemens, LG...
(5) Air-cooled and water-cooled Compressor condensing unit are both available.
LB-1.5T Spare parts |
Specifications---LB-1.5T |
|||
Type |
Brand/Nation |
Name |
Details |
|
Compressor |
Copeland/ USA |
Output (kg/24h) |
1500kg/24h |
|
Evaporator |
Lill/ China |
9.8kw |
||
Condenser |
Greenhal/ CN |
Evaporating Temp |
-22°C |
|
Expansion Valve |
AGCO/USA |
Condensing temp |
40°C |
|
Filter |
AGCO/USA |
Standard around temp |
25°C |
|
Pressure controller |
LEILI/CN |
Standard inlet water temp |
18°C |
|
Decelerator |
KOKI/Taiwan |
Total power |
7.3kw |
|
Circulatingwater pump |
HONKING/CN |
Compressor input power |
6.7kw |
|
Salt water pump |
ADOST/Germany |
Decelerator power |
0.25kw |
|
Infrared ray |
ROKO/TAIWAN |
Water pump power |
0.12kw |
|
Oil separator |
Emerson/USA |
Cooling fan input power |
0.45kw |
|
Fasike/CN |
Salt water pump power |
0.016kw |
||
PLC Controller |
LG/Korea |
Supply power |
3p-380v-50Hz |
|
Contactor |
LG/Korea |
Water supply pressure |
0.1Mpa-0.5Mpa |
|
LG/Korea |
Refrigerant |
R404a |
||
CKC/Taiwan |
Flake ice temp |
-5°C |
||
CHINT/CN |
Dimension of waterpipe |
1/2” |
||
Storage bin |
LILL/CN |
Machine set Net Weight |
364kg |
|
LILL/CN |
Machine set dimension |
1310mm*970mm*980mm |
||
Brine drum |
LILL/CN |
Freezer dimension |
1320mm*970mm*1200mm |
|
Standard carton parkage with wooden pallet.
Shipping in freight or in flight depends on customers' willingness and prodct's quantity.
Shanghai Langtuo Refrigeration Equipment Co.,Ltd is a highly reputable and respected ice machine manufacturer. As one of the notable ice machine mnufacturer, Langtuo not only providing ice mchines but also add value to customers by reducing costs and emphasizing product quality with ISO9001:2008 quality certifcate and CE certificate.
With strong abiliies and years' experience in the R&D, manufacturing, service and cutting-edge price, Langtuo is considered to be the right associate in the OEM and ODM, which is many foreign companies looking for. Try to contact us for a good quality ice making machine with the competitive rice!
Shanghai Langtuo Refrigeration Equipment Co.,Ltd has gained the ISO9001:2008 quality certificate and the CE certificate.
