Specifications
Water Cooling Flake Ice Making Machine1.Compressor Brand: Bitzer, Copeland, Danfoss
2.Capacity: 0.2T-50T
3. Flake ice

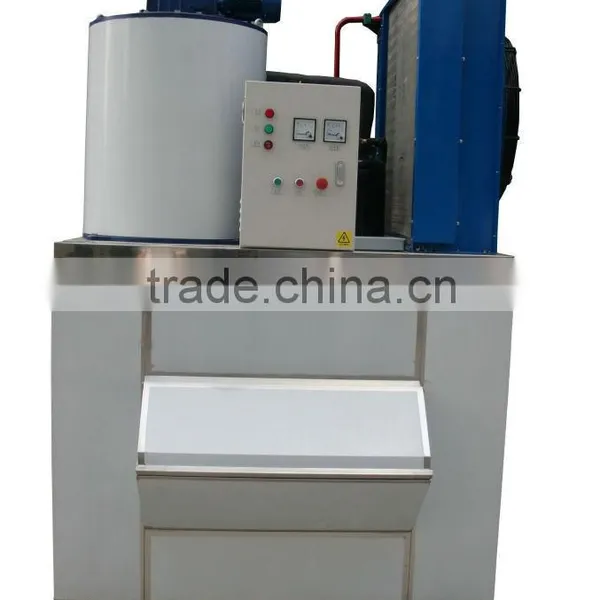

Product: Water cooling flake ice making Producer
Mode:LB-1T
LB-1T Configuration Table |
LB-1T Technical Parameter |
||
Components Name |
Brand/Country |
Technical Parameter |
|
Compressor |
Danfoss/ Danmark |
Daily output |
1000kg/24h |
Evaporator |
Langtuo |
Ref. Capacity |
6.5kw |
Condenser |
JinGong,/ China |
Evaporating Tem. |
-22°C |
Expansion valve |
ALCO/ USA |
Condensing Tem. |
40°C |
Filter |
ALCO/ USA |
Ambient Tem. |
25°C |
Pressure control |
LEILI/ China |
Inlet water Tem. |
18°C |
Reducer |
GongJi/ Taiwan |
Tatal power |
4.7kw |
Water pump |
Hongking/China |
Compressor power |
4.3KW |
Salt water pump |
RDOSE/ Germany |
Reducer power |
0.25KW |
Infrared |
Ruiko/ Taiwan |
Water pump power |
0.12KW |
Water level |
FAST/ China |
Salt water pump power |
0.016KW |
Float valve |
KEYU/ China |
POWER Supply |
3P-380V-50Hz |
PLC controller |
LG / Korea |
Water pressure |
0.1Mpa-0.5Mpa |
Contactor |
LG / Korea |
Refrigerant |
R404A |
Relays |
LG / Korea |
Ice Tem. |
-5°C |
Phase sequence |
CKC/ Taiwan |
Outlet size |
1/2" |
Air switch |
LG/ Korea |
Weight |
263kg |
Ice Storage bin |
Langtuo |
Unit dimension |
1310mm*970mm*880mm |
Ice scraper |
Langtuo |
Ice bin dimension |
1320mm*970mm*1200mm |
1. Chemical: Pigment, dyes, drugs & intermediates
2. Seafood: Fishery, Aquatic Products, off on land/off-shore processing, preservation,
3. Meat & Poultry: preservation, processing
4. Construction: Concrete mixing cooling
Specification
1. Compressor: Bitzer(Germany),PLC:LG(Korea)
2. Standard power supply: 3P/380V/50Hz industrial power.
3. Freshwater, (Salt water is available,if you need)
4. Ice thickness: 1.8~2.2mm
6. Standard working condition: 25°C ambient temperature; 20°C water inlet temperature.
7. Evaporating temp.: -20°C; Condensing temp.: 35°C; Refrigerant: R404/ R22
8. Daily capacity:8Tons,10Tons,15Tons,20Tons,25Tons,30Tons
Feature of Compressor Condensing unit:
(1) Bitzer, Copeland, FuSheng, Maneurop, Danfoss compressor
(2) Power: 0.5HP~160HP.
(3) Compressor style: Piston, Screw, Scroll...
(4) All the accessories are of reliable quality, mostly world-famous brands, like Bitzer, Siemens, LG...
(5) Air-cooled and water-cooled Compressor condensing unit are both available.
