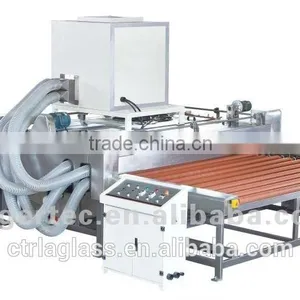

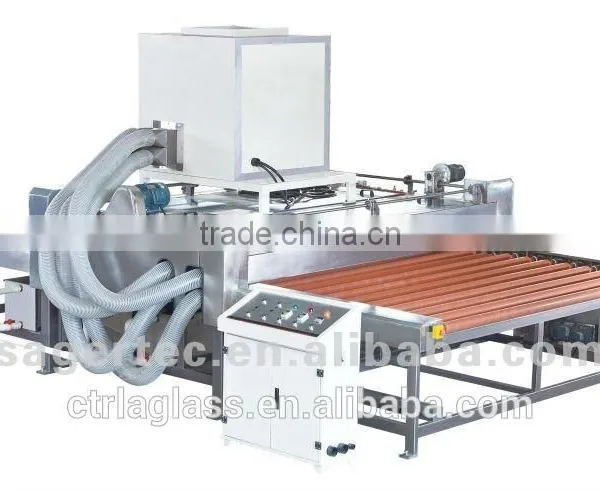

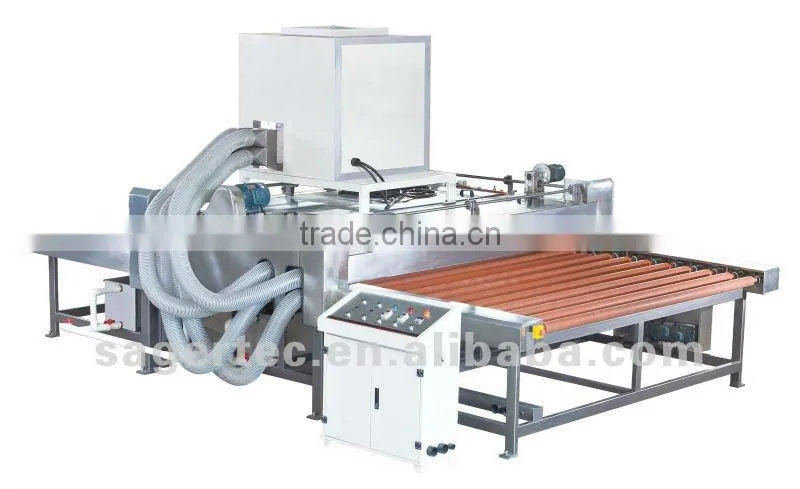

Glass Washing Machine SZ-W25
Min.Size: 400*400mm
Max.Width: 2500mm
Thickness:3-25mm
Speed:0-12m/min.
Power: 28kw
Weight: 4300kg
Water tank: 2
Dimension: 5500*3500*2840mm
MODEL |
SPEED |
MAX.WIDTH |
MIN.SIZE |
THICKNESS |
POWRE |
DIMENSION |
WEIGHT |
SZ-W20 |
07m/min |
2000mm |
400*400mm |
3-25mm |
28kw |
5500*2900*2840mm |
4120kg |
SZ-W25 |
0-7m/min |
2500mm |
400*400mm |
3-25mm |
28kw |
5500*3500*2840mm |
4300kg |
SZ-W30 |
0-5m/min |
3000mm |
500*500mm |
3-25mm |
35kw |
6000*3900*2840mm |
5000kg |
SZ-W33 |
0-5m/min |
3300mm |
500*500mm |
3-25mm |
35kw |
6000*4200*2840mm |
5500kg |
1. SZ-W25 is designed for washing and drying flat glass which is adopt horizontal structure.
2. The machine mainly consists of loading section, washing section, drying section and unloading section.
3. The processing speed is adjusted by variable motor.
4. The drive power from the mechanical gear transmission.
5. There are three pairs brushers , so it has a good performance on washing glass.
6. There are various type available for different glass , float, coating and low-E glass.
7. Washing and drying sections can be elevated or lowered as a whole by PLC.
8. The temperature of the hot-air can be set in advance.
9. The rollers of the washing section are controlled by the up and down motors by belt transmission independently.
10. It is easy to operate and different type can meet different requirements from customers.
Our Factory
Customers at Our Booth
Customers in our factory
Laminating Glass
Established in 2008, Sager Tech.is a professional designer and manufacturer for machinery, which is
specializ-ed in glass industry. We are located in Beijing, with convenient transportation access. All of our
machine comply with CE regulation and are greatly appreciated in a variety of different markets all over the world.
At initially, Sager was devoted to design and produce glass laminating equipment as long as provide the soluti-on to work for laminating glass. With a fast development, Sager was starting up the project for new glass
processing machine by optimized cooperation and source integration. Now, our products range is increased,
which include completed PVB-EVA laminating production line, laminating furnace and material, all the type
of grinding machine, washing machine, drilling machine as well as sandblasting machine.
As a result of our high quality products and outstanding customer service, we have gained a global sales
network reaching USA, Europe, Australia, South America etc.
Our business philosophy is TECHNOLOGY RENOVATION, COST CONTAINMENT, QUALITY CONTROL and SATISFACTORY AFTER-SALE SERVICE. Being provide qualified and advanced products for our clients in
glass industry is our mission.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming successful business relationships with clients around the world in the near future.
