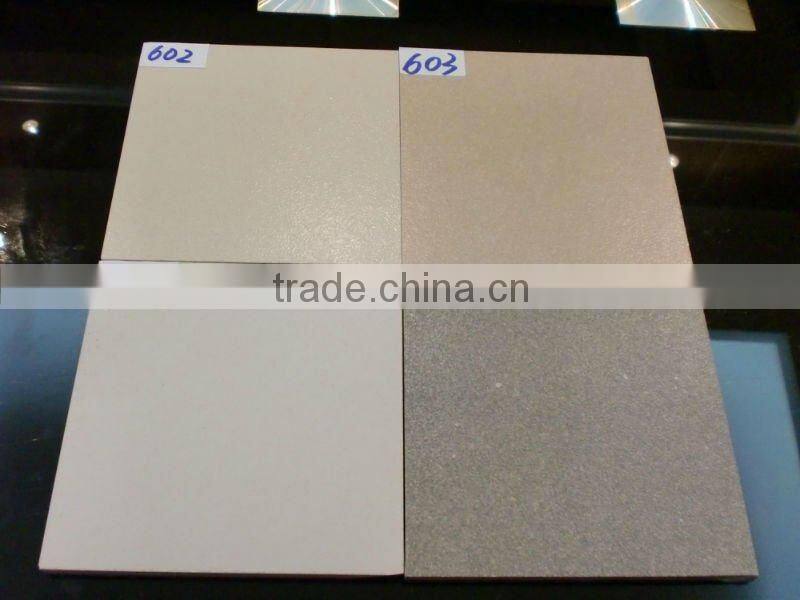

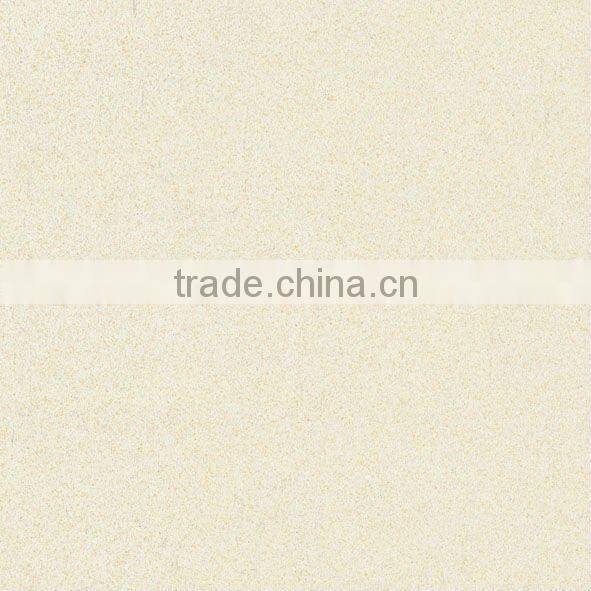

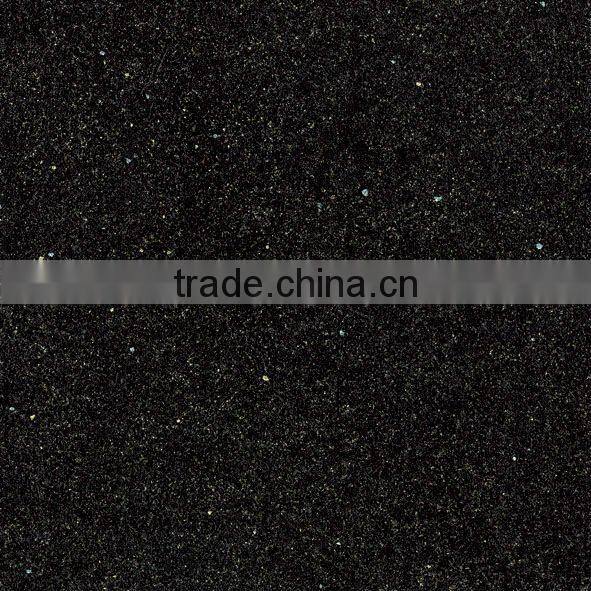

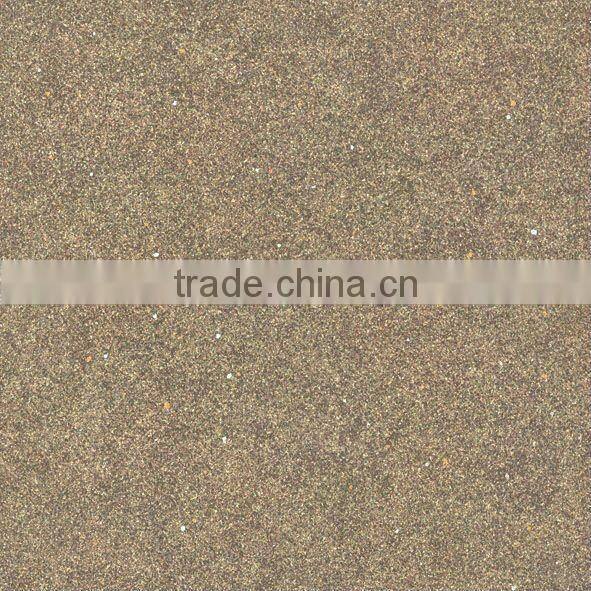

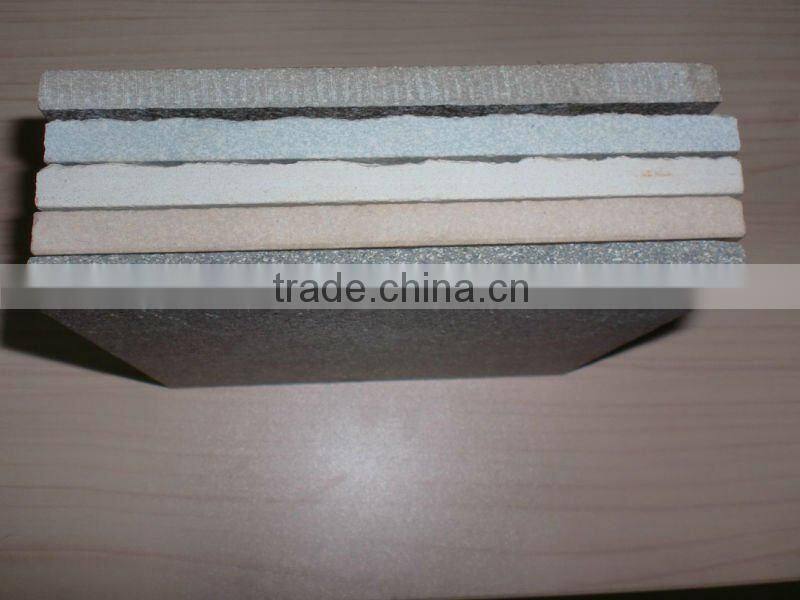

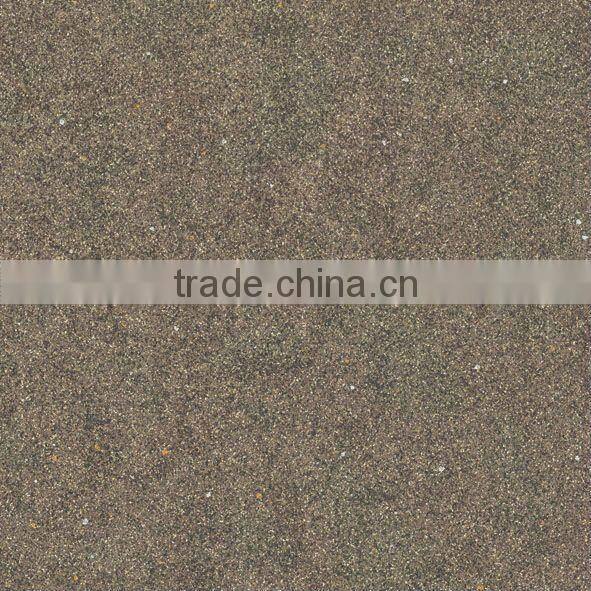

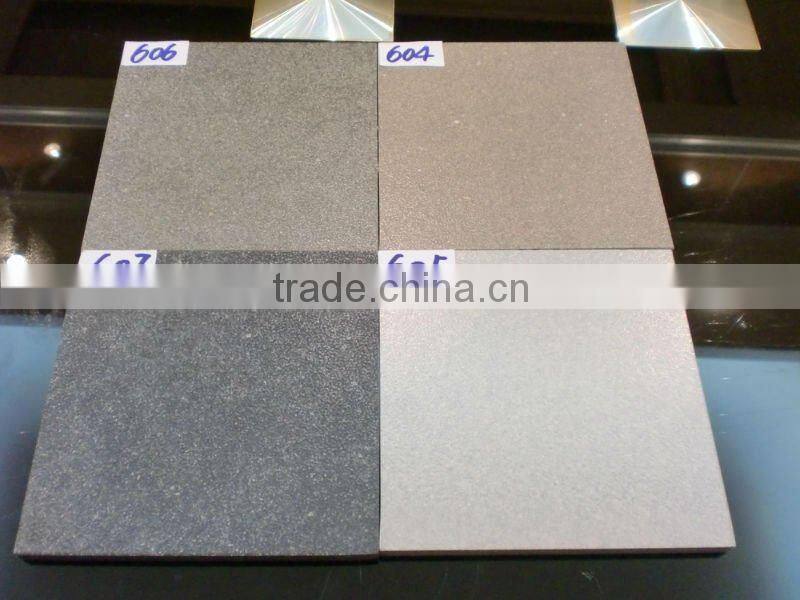

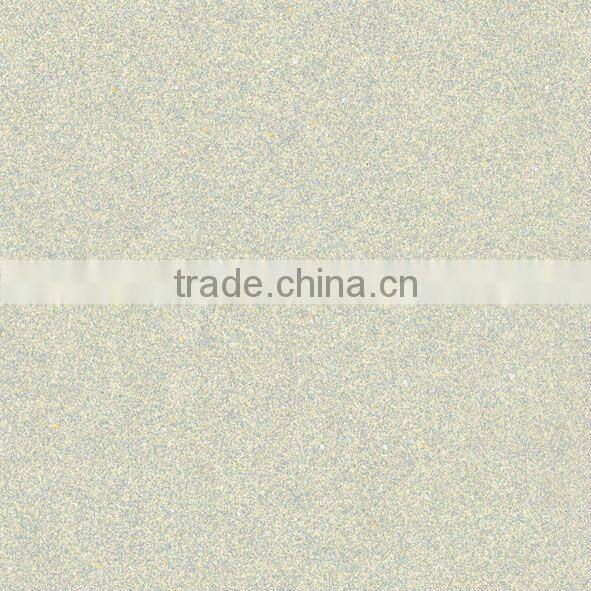

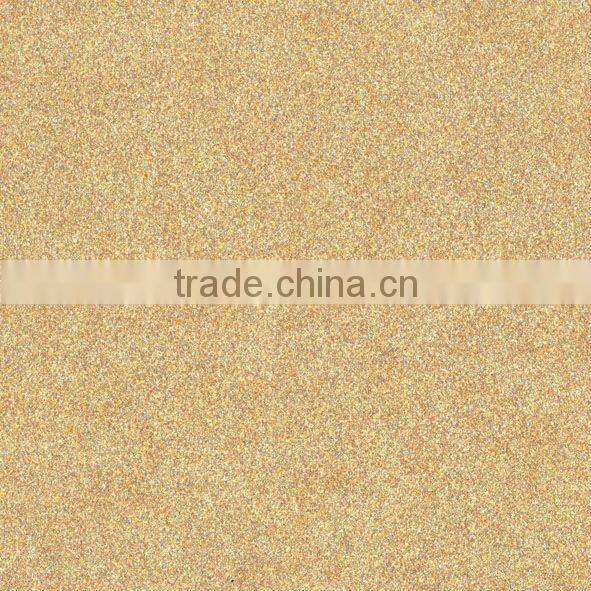

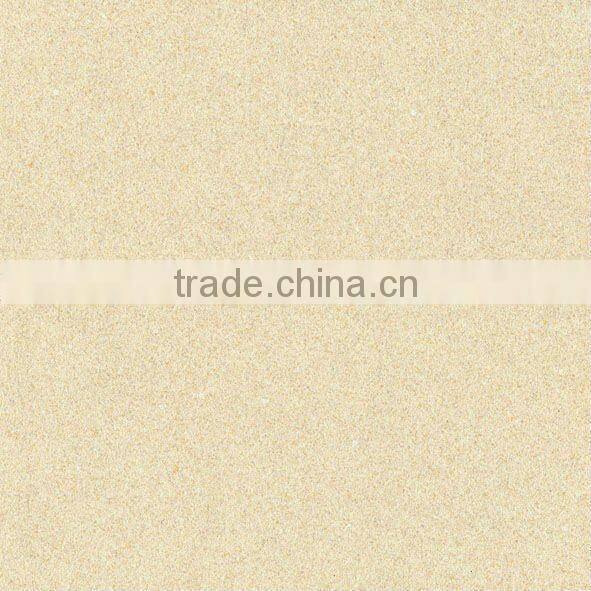

Earth Color Floor Porcelain Tile

Earth Color Floor Porcelain Tile thumbnail-1
Earth Color Floor Porcelain Tile photo-1
US$ 5 - 7.5 MOQ: 600 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TianYao
Model Number:
604
Contact Supplier Request Quote Chat Now
Foshan City Tianyao Ceramics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FoShan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TianYao
Model Number 604
Size 300 x 600mm, 600 x 600mm
Material Other, Porcelain Tiles, Porcelain
Function Acid-Resistant, Non-Slip, Wear-Resistant
Surface Treatment Full Body Tiles
Color Family Blacks, Blues, Browns / Tans, Whites, Yellows / Golds
Tile Type Floor Tiles, Wall Tiles

Specifications

Floor Porcelain Tile,Outdoor Porcelain Tile
W/A:Under 0.5%,Unglazed
Matt Surface,Non-slip
600*600mm,Pallet Pack
Regular Stoc

Floor Porcelain Tile,Outdoor Porcelain Tile



Item No.:604

Material:Porcelain

Water Asorption:Under 0.5%

Surface:Matt

Feature:Unglazed

Package:4Pcs/Ctn

Weight:32Kgs/Ctn

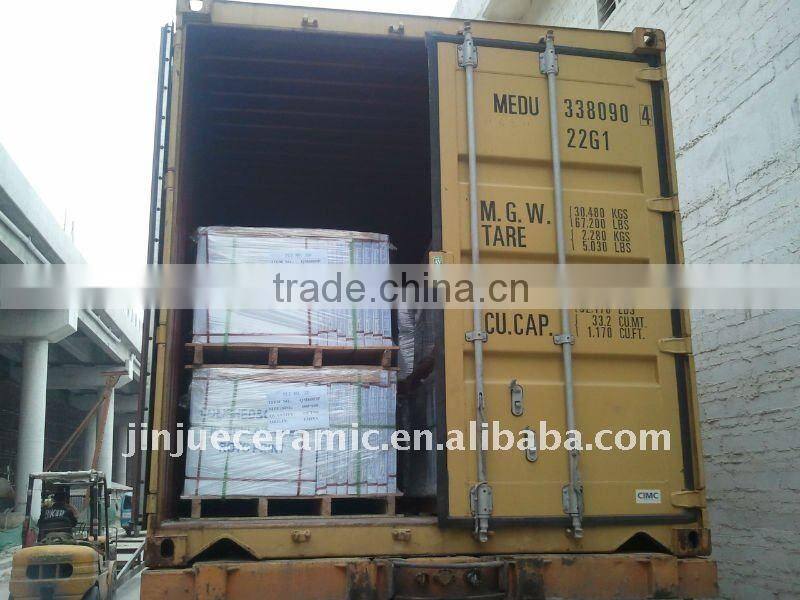

Max loading:828 cartons per 20 feet container,totally 1192.32 square meters



Payment:30% deposit,balance paid before loading by T/T

Delivery:In 15 days upon receipt the deposit



No Item Unit Technical Requirements TEST RESULT Decision
1 Size (%) mm Side The Deviarion of the arverage size for each tile(4 sides)from the work size 599.9-600.1 Passed
% The Deviarion in perment size for each tile(4 sides)from the average size of the 10 test speciments(40sides) -0.02-+0.02  Passed
mm Thickness 9.3-9.6 ————
2 Straightness of sides % ±0.2 -0.17 Passed
3 Rectangularity % ±0.2 -0.13 Passed
4 Surface flatness % Center Curvature ±0.2 -0.13 Passed
Curvature ±0.2 -0.12
Edge Curvature ±0.2 -0.16
5 Surface quality ———— A minimum of 95% of the tiles shall be free from visible defects that would impair the appearance of a major area of tiles   Passed
6 Water absorption % Average :E≤0.5                          Individual:E ≤0.6  Average:0.11              0.09-0.12 Passed
7 Breaking Strength(N) N Thickness≥7.5mm,≥1300  Thickness≤7.5mm, Average:1777.5 Passed
8 Modulus of rupture Mpa Average ≥35                              Individual ≥32                      Average:39.1   37.9-41.7 Passed
9 Impact Resistance ———— Report the result of test 0.84 ————
10 Resistance to staining(Class) mm³ Staining volume ≤175 116 Passed
11 Coefficient of linear thermal expansion  ¯ ºC1 Report the result of test 6.5×10¯ 6 ————
12 Thermal shock resistance ———— Report the result of test No crack of crazing Passed
13 Wet expansion % Report the result of test ≤0.01
14 Frost resistance ———— No crack,crazing or peeling after test   Passed
15 Low concentration acids&alkalis ———— Grading after test ULA Passed
16 Household chemicals and swimming pool salts ———— No lower than UB UA Passed
17 Abrasion resistance ———— Report the result of test 3 Class ————



Earth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain TileEarth Color Floor Porcelain Tile
