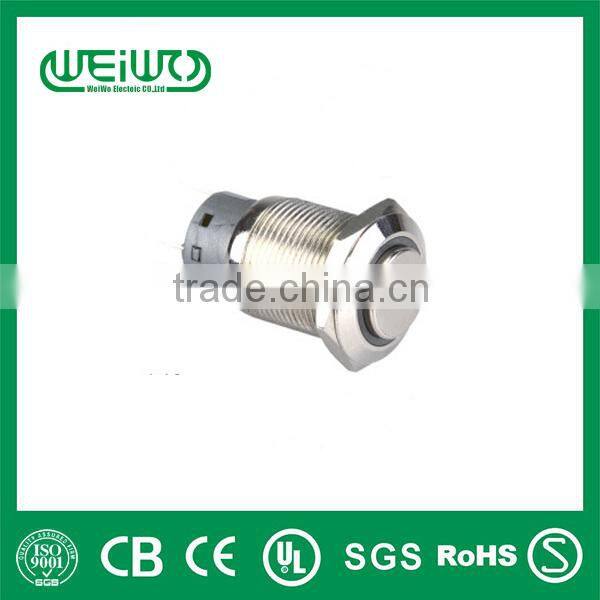

A19-HE-11D high metal electric signal lamp button switch
LED performance characteristics:
Degree of protection: IP40 Watertight/oiltight
Contanct configuration: Single pole, Double pole
Maximun voltage: 250V AC/DC
Thermal current: 3A
Minimun applicable load: 5V AC/DC,1MA
Contact material : Gold-clad silver
Terminal style : 110" Solder/Quick connect
Operatin humidity : -25 °C~+55 °C
Operating temperature : 45~85%RH
Insulation resistance : 100M Ω minimum(500V DC megger)
Vibration resistance : 10 to 55HZ, amplitude 1.2 mm p-p
Electrical life : 100,000 operations minimum (at full rated load)
Machanical life : Maintained -- 1,000,000 operations minimum
Momentary -- 1,000,000 operations minimum
Selector/Keylock -- 250,000 operations minimum
Dielectric strength : Switch unit -- 2,000V AC, 1min. between live/dead part and terminals of different poles;
1000V AC, 1minute between terminals of the same pole;
1500V AC, 1minute between contact and lamp terminals.
Illumination unit : 2,000V AC, 1min. between live part/ground
Soldering temperature : 20W/5 seconds or 260 °C/3 seconds

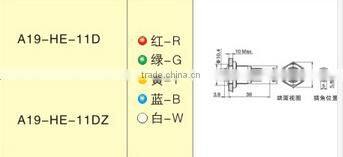

Drawing :

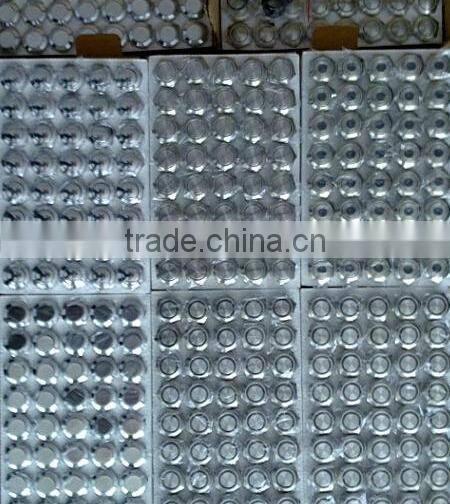

Exhibition :
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Free sample
11) Certificate: CE&RoHS&Others
Products:
MOQ: 1000 USD (by sea or by air) ,and mixed order is available,
Unlimited by Express (DHL,UPS,TNT...)
Payment : a.100% TT in advance .(Order less than 4000 USD)
b.30% TT in advance,70% TT before delivery
c.70% TT in advance,the balance against the copy of B/L at sight
d. Negotiable
Delivery time: 3-30 days after received receipt of deposit.
