WL128EP Series China Momentary Led Push Button Switch

WL128EP Series China Momentary Led Push Button Switch photo-1

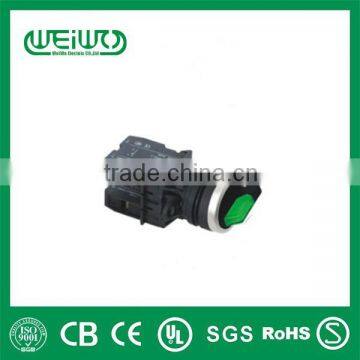

WL128EP Series China Momentary Led Push Button Switch photo-2

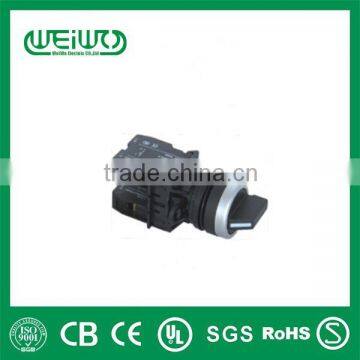

WL128EP Series China Momentary Led Push Button Switch photo-3
WL128EP Series China Momentary Led Push Button Switch photo-4
WL128EP Series China Momentary Led Push Button Switch photo-5
US$ 0.13 - 3.56 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WEIWO
Model Number:
WL128EP Series
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/ SHANGHAI/ SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name WEIWO
Model Number WL128EP Series
Protection Level IP65
Max. Voltage 250V AC/DC

WL128EP Series  china momentary led  push button switch



Product introduction:



  • Should button structure design match nation and Europen total body CE safety attestation request. According to nations IEC947 and En60947 and CCC nation the GB 14048.5-2001 produce examination.
  • Touch some switch has to surround to close type strucure, usage safety creibility. Connect line convenience. The structure's design is skilful reasonable. Connevt line screw not loose move to shed off to take to have from rise function a square I am then fast to install.



Hard heavy duty metals series:



Switch rating:                 AC-15                 DC-13                   220V/0.5A

                                     220V/6A             24V/6A                  440V/0.25A

                                     380V/4A             48V/3A

                                              660V/2A             110V/1A

Contact resistance:       <=550M Ω

Max.insulation voltage:      AC 2500V50HZ •1 min

Mechanical life:                   Transient dynamic type >= 100,0000

                                           The key button type >= 50,0000

                                           Rotary knob type >=50,0000

                                           Emergency stop button >= 50,0000

Electrical life:                    80000 (220V AC 6A)

Conventional freeair themal current:    1th   10A

Rated insulation voltage:     -25 ℃ ~+55













Drawing :

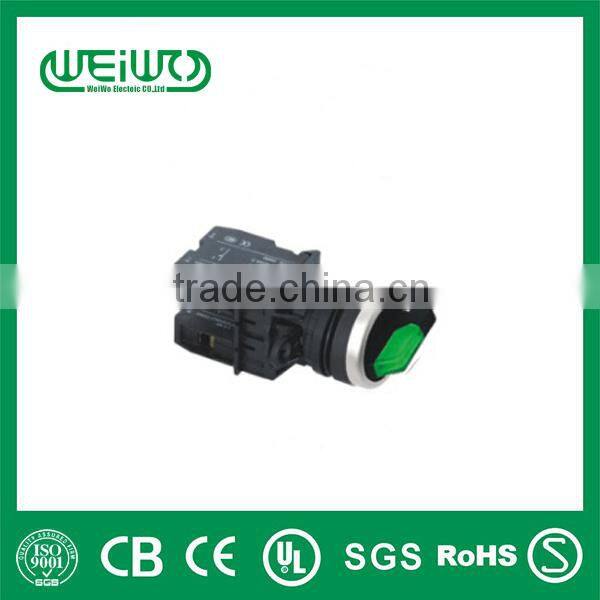

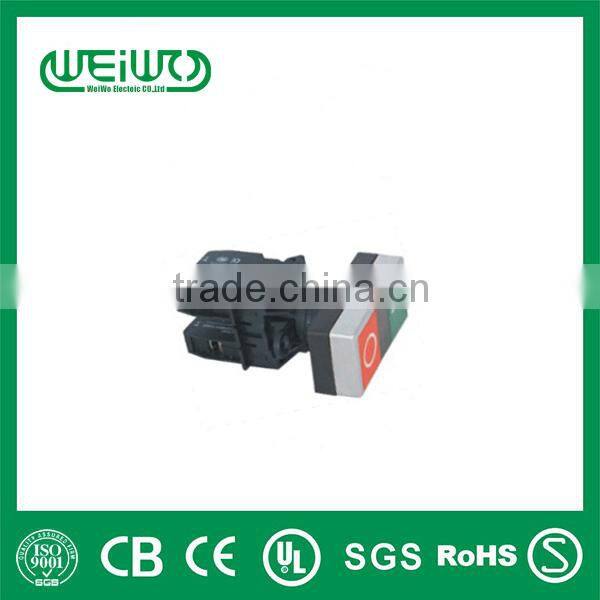

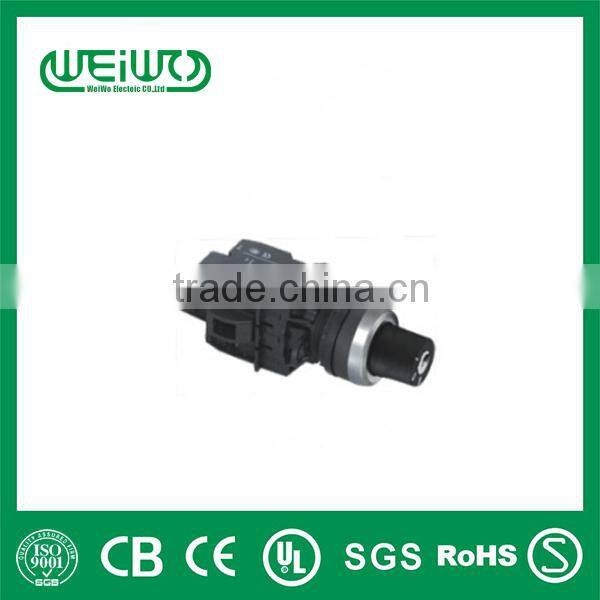

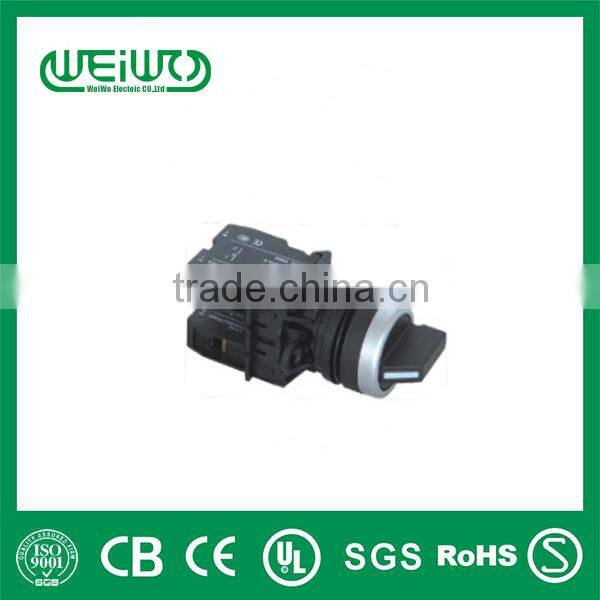

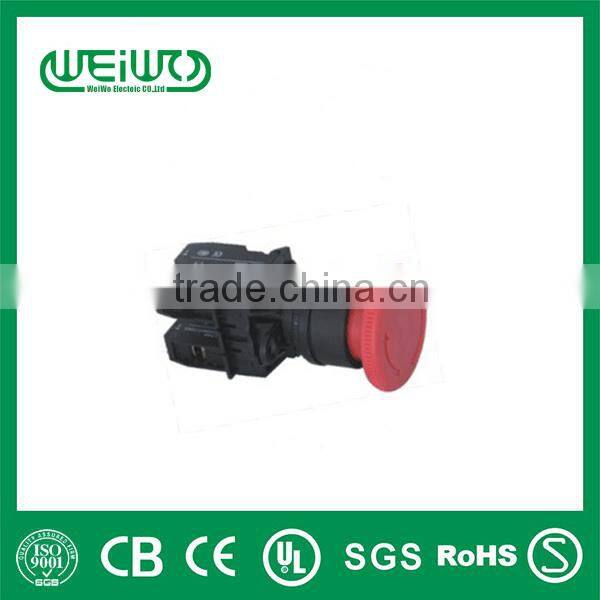

 WL128EP Series china momentary led push button switchWL128EP Series china momentary led push button switchWL128EP Series china momentary led push button switchWL128EP Series china momentary led push button switchWL128EP Series china momentary led push button switch













Exhibition :



1) High precision



2) Excellent inoxidability



3) Great ingredient accuracy and high intensity



4) High corrosion resistance



5) Our own mold workshop and injection molding workshop



6) OEM Service



7) Prompt Delivery



8) Small Order Accepet



9) Tolerance: ± 0.3mm



10) Free sample



11) Certificate: CE&RoHS&Others





MOQ:   1000 USD (by sea or by air) ,and mixed order is available,



               Unlimited by Express  (DHL,UPS,TNT...)



Payment :  a.100%  TT in advance .(Order less than 4000 USD)



                         b.30%  TT in advance,70% TT before delivery



                         c.70%  TT in advance,the balance against the copy of B/L at sight



                         d. Negotiable



Delivery time:    3-30  days  after received receipt of deposit.
