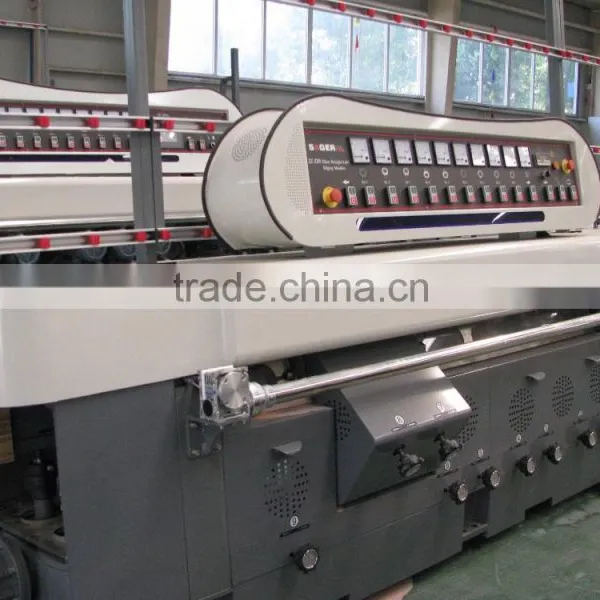

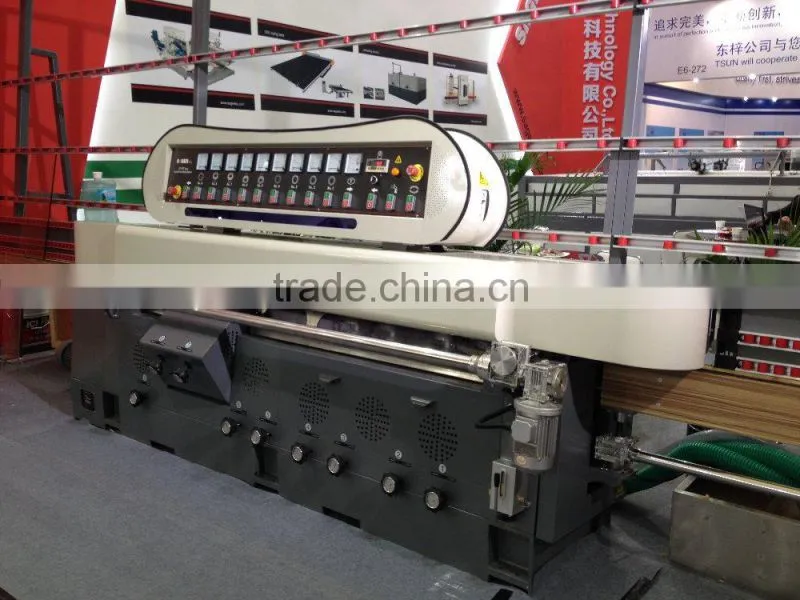

Professional for flat edging with 45°arrissing; Rough grinding, fine grinding and polishing can be finished by one pass, the processed edge as shiny & bright as glass surface.

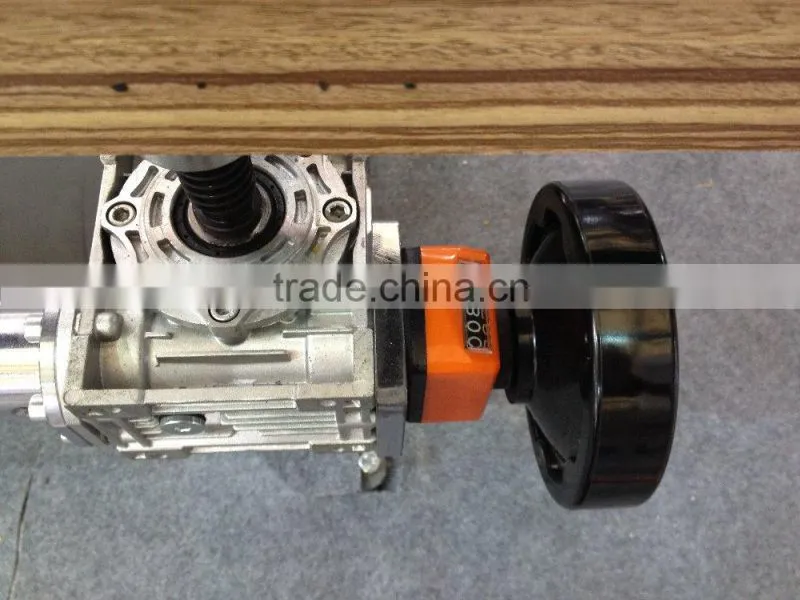

The input&output adopt Synchronous rise/lower, to make grinding-volume adjustment easy&convenient.

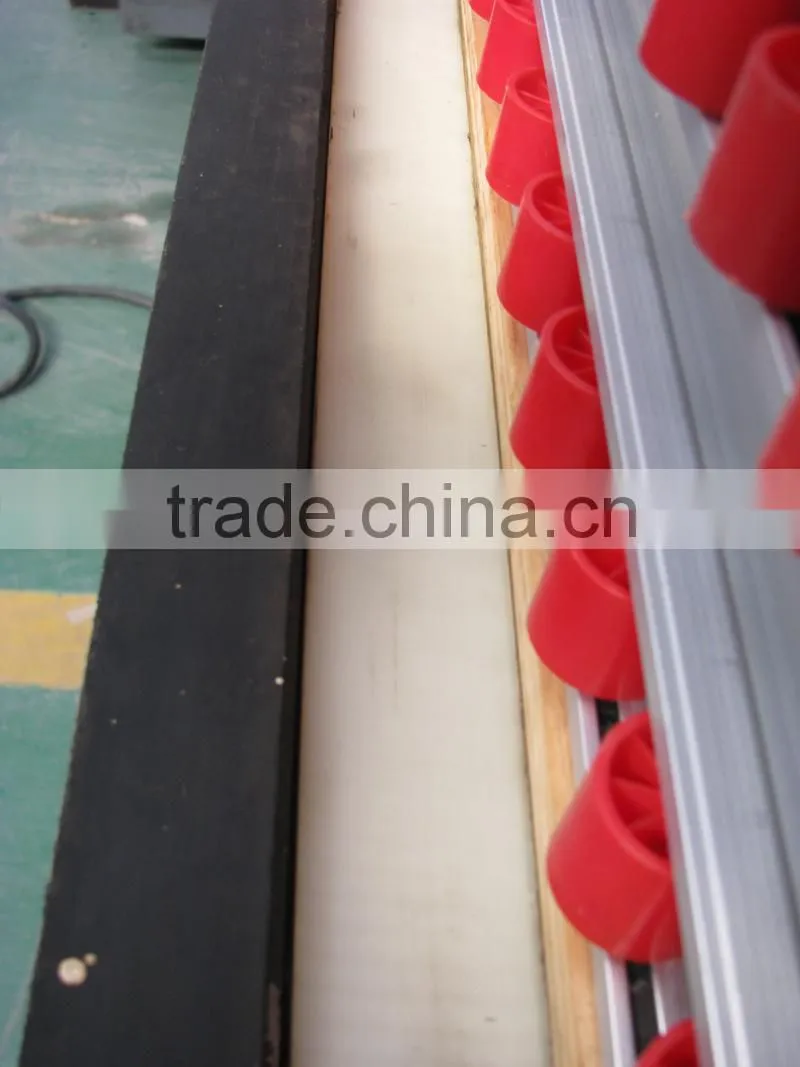

Input&output transmission adopts timing belts, which improve the stability of transmission.

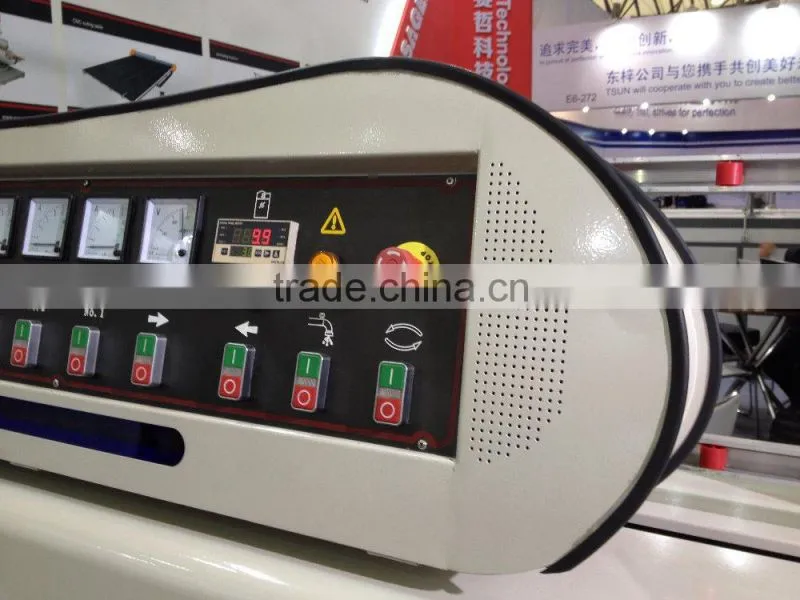

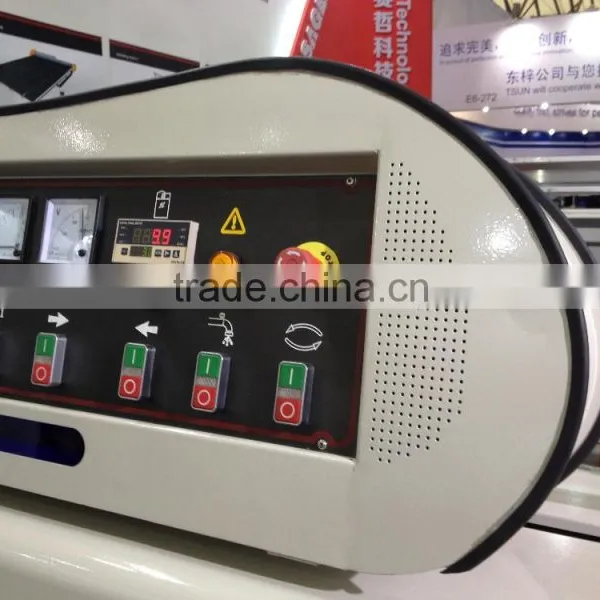

PLC control, all the parameters are set by touch screen.

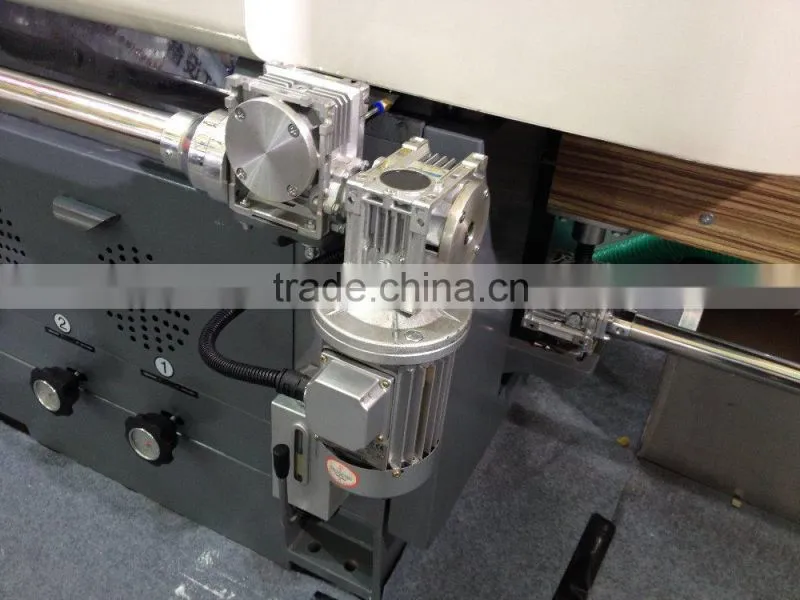

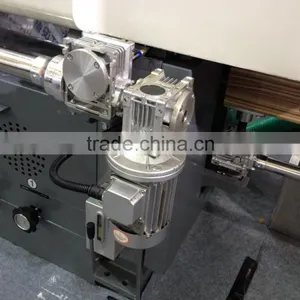

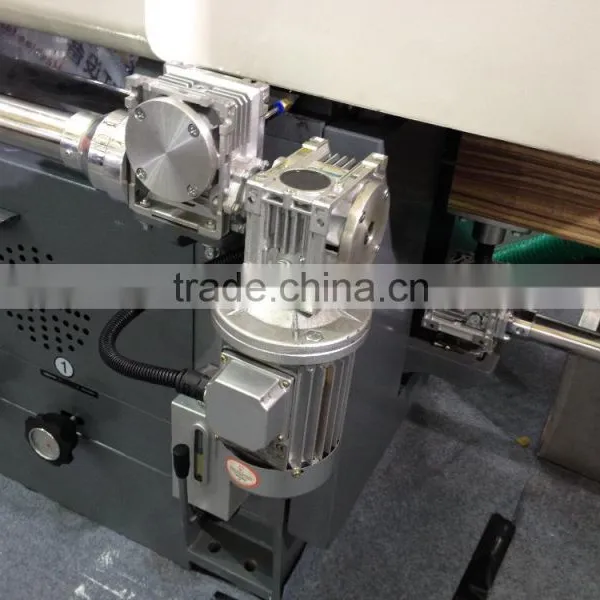

Variable frequency motor for driving, the speed can be adjusted on touch screen directly.

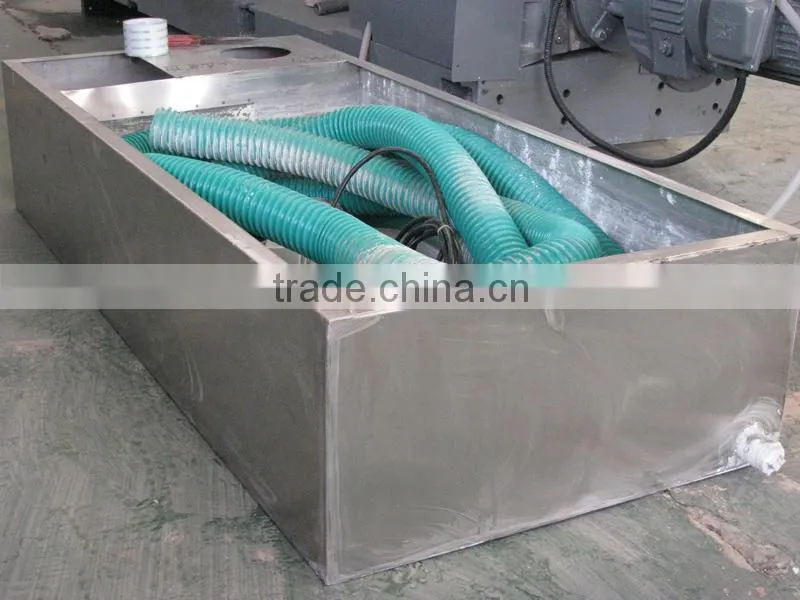

Schneider electronic; stainless steel water tank; independent polish tank with automatic stirrer for cerium.
The machine base, beams and base of spindle are made of excellent cast iron, all the cast and steel parts are treated by tempering, ensure the best performance and stability of
machines in different area of all over the world.
Model options
Model |
Min size |
Thickness |
Speed |
Power |
Spindles |
Weight |
Dimension(mm) |
SZ-ZB12 |
80*80 |
3-25mm |
0.6-7m/m |
28kw |
12 |
3900KG |
8200*1000*2500 |
SZ-ZB11 |
80*80 |
3-25mm |
0.6-6m/m |
26kw |
11 |
3600KG |
7800*1000*2500 |
SZ-ZB10 |
80*80 |
3-25mm |
0.6-5.5m/m |
23kw |
10 |
3400KG |
7700*1000*2500 |
SZ-ZB9 |
80*80 |
3-25mm |
0.6-5.5m/m |
19.8kw |
9 |
3000KG |
7400*1000*2500 |
SZ-ZB8 |
80*80 |
3-25mm |
0.6-5.5m/m |
17.5kw |
8 |
2800KG |
7200*1000*2500 |
SZ-ZB4 |
80*80 |
3-25mm |
1.3-6m/m |
9.5kw |
4 |
2500KG |
5800*1400*2500 |
