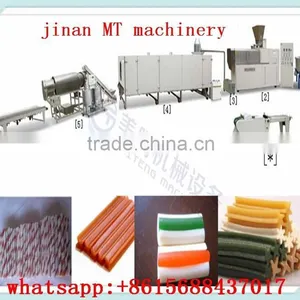

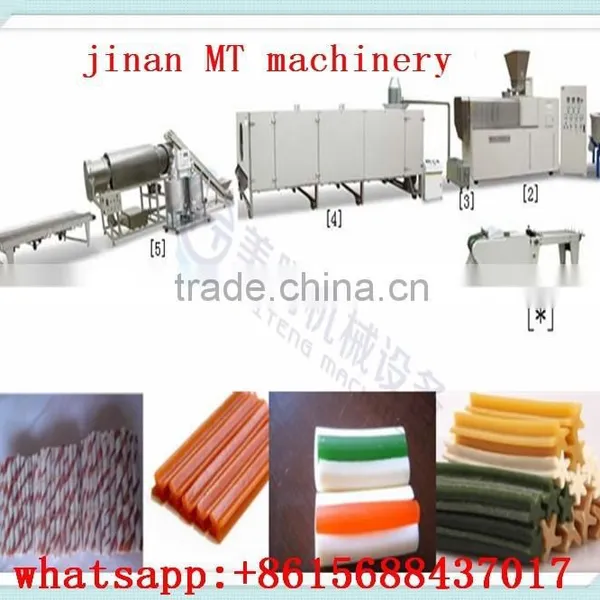

Pet Treats Processing Line
1. Description of pet chews machine:
Pet Treats Processing Line adopting the advanced frequency speed controlling technology can make the equipment transmission more stable and saving. The screw adopts the alloy steel; the screw life is much longer.The visible auto-temperature controlling system makes the temperature more direct viewing and the parameter more precise
2. Raw materials: adopts corn starch, potato starch as raw materials
3. Products:twist, double colors, core-filling and so on.
4. Capacity: 100-120kg/h(single color)200-240kg/h(double color)
5. Flow chart:
Mixing system---Extrusion system----Drying system--- Packing system
Single color pet chews machine:
Mixer--screw conveyor--cooling conveyor--cutter--elevator---multi-layer dryer
Double color pet chews machine:
Mixer--screw conveyor--cooling conveyor--cutter--elevator---multi-layer dryer
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
8.Parameter:
| FLOUR MIXER | SCREW CONVEYOR | EXTRUDER | COOLING CONVEYOR | |
| Installed capacity | 4KVA | 1.1KVA | 47KVA | 0.37KVA |
| Power | 3KW | 0.5KW | 26KW | 0.3KW |
| Output | 150kg/h | 0-600kg/h | 100-120kg/h | 100-120kg/h |
9.Packaging &shipping
1. Packing: The product will be packed into wooden case, then into containers.
2. Transportation: According to what the buyer's requirement, we provide transport agent, buyer pay the transfer fee.
10.Production period
The machine will be delivered from factory during 20 working days after receive the buyer's advance payment.
11.Quality guarantee
The quality of equipment will be guaranteed for one year based on correct operation of buyer.
12.Testing & training
The plant layout design, assembling and installation, start-up and local team training will be free at no cost. But the buyer should be responsible for the round-air tickets, local transportation, accommodation, and US$30/day per person for the pocket money to our technicians.
13.Company Information
we MT machinery&equipment CO.,LTD is a manufactory professional do the corn flakes machinery processing line ,we have good engineer ,have many years installation experience ,can help our customer do the good quality product .
14.FAQ
we accept TT ,LC at sight payment term .
