china manufacturer supply glass edging and beveling machine
- 20 Set / Sets per Month
- Tianjin
Product Details
Condition: | New | Machine Type: | Glass Beveling Machine | Production Capacity: | 0.5-5m/min |
Place of Origin: | Beijing, China | Brand Name: | Sager | Model Number: | SZ-XB351 |
Voltage: | custom made | Power(W): | 22kw | Dimension(L*W*H): | 6500*1300*2500mm |
Weight: | 3000kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

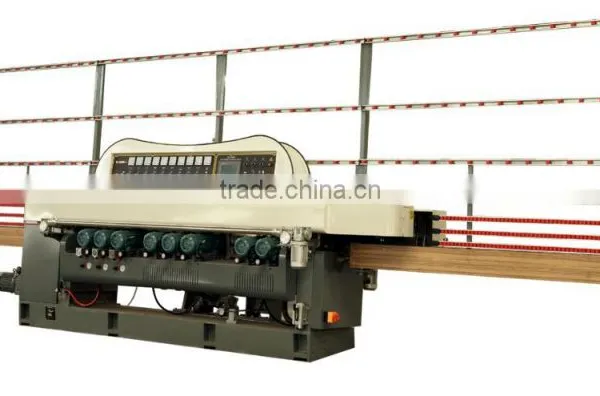

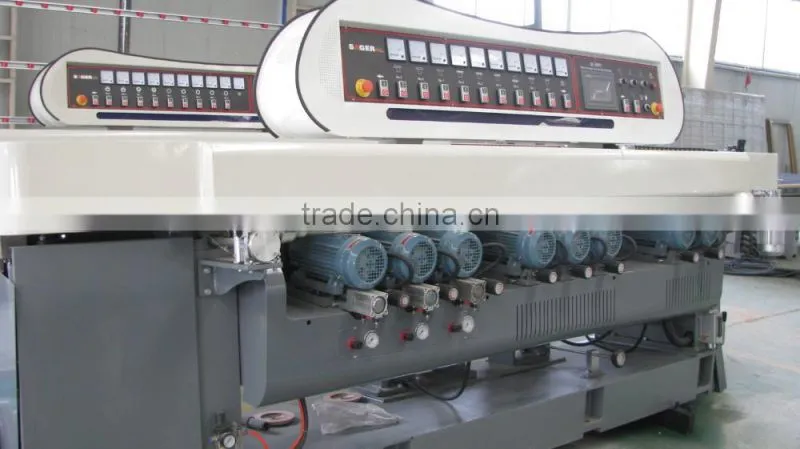

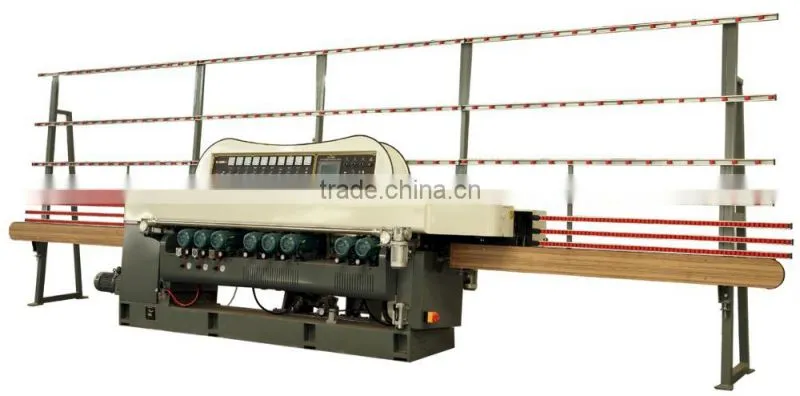

SZ-XB351 Glass beveling machine
Ⅰ Description & Advantages
1)professional for beveling various mirror and glass with polishing on the side edge.
2)The input&output adopt synchronous rise/lower,to make grinding-volume adjustment easy&convenient.
3) pneumatic polish at prompt,the processed edges as shiny as glass surface.

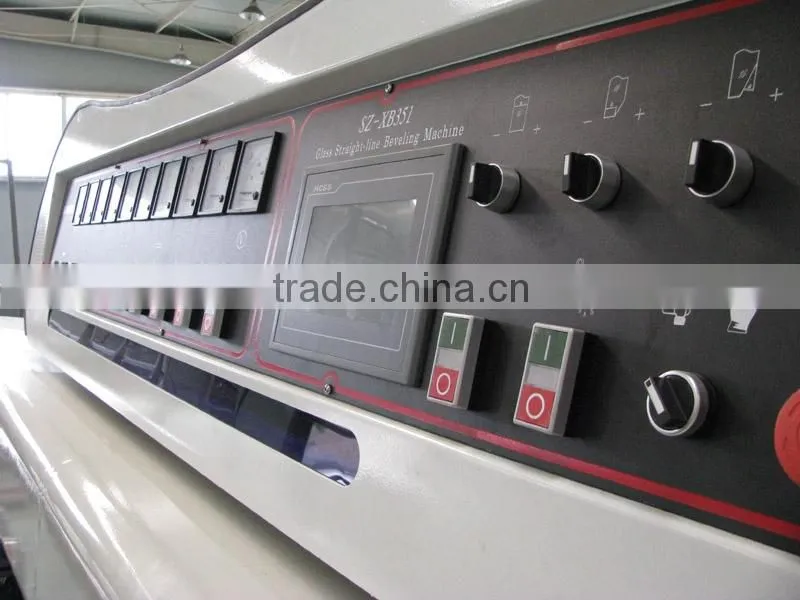

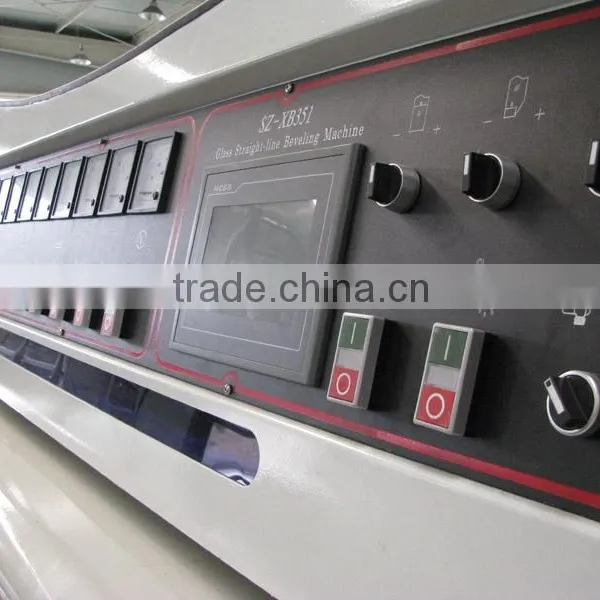

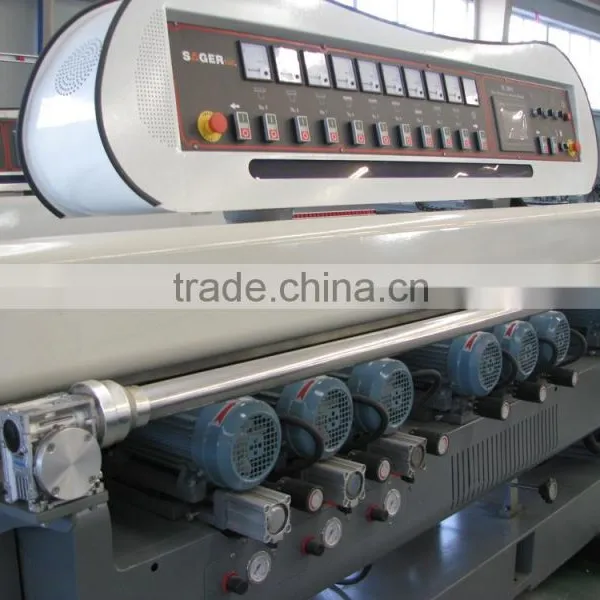

4) PLC control,all the parameters are set by touch screen.

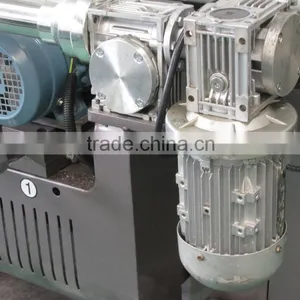

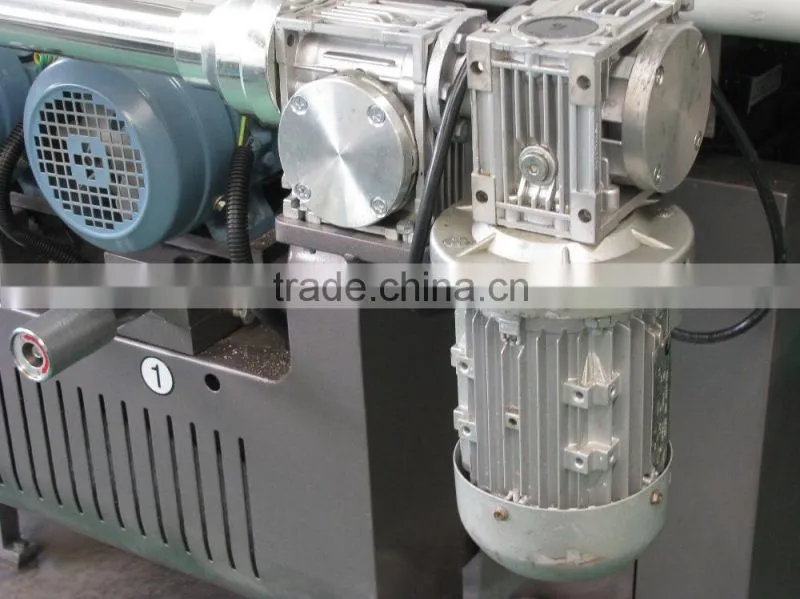

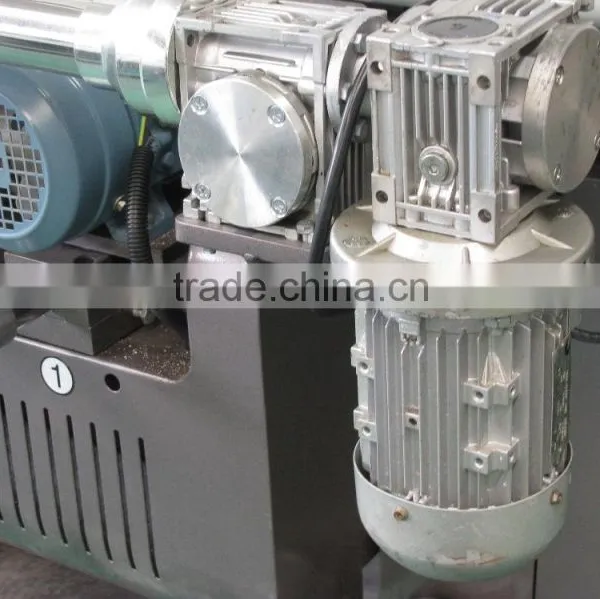

5) variable frequency motor for driving,the speed can be adjusted on touch screen directly.

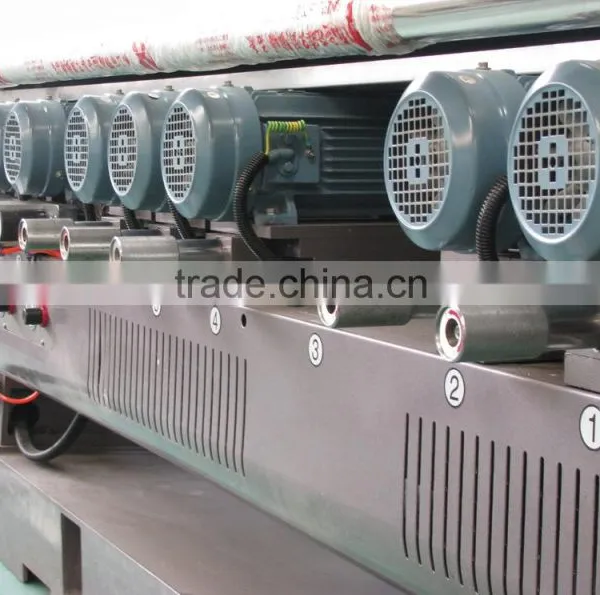

6) ABB spindles,schneider electronic;stainless water tank;independent polish tank with automatic stirrer for cerium.
7) It is easy to operate and has good performance.
Ⅱ Detailed Specification
Min. glass size: | 100*100mm |
Glass thickness: | 3-19mm |
Angle of arrising: | 0-25 |
Processing speed: | 0.5-5.5m/min |
Max.bevel: | 40 |
Installed power: | 22kw |
Voltage: | 380V 50HZ (other voltage is also available) |
Dimension: | 6500*1300*2500mm |
Weight: | 3000kg |
Ⅲ Reference Pictures
exhibition
factory
