pet food production line
Description
Pet food is plant or animal material intended for consumption by dogs or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
Main Features:
1. pet food extruder adopts frequency speed controlling with high automation and stable per-formation.
2.The dog food extruder screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.mr.peter offer you more details.
3.The forced lubrication system, so that it can guarantee the equipment transmission life longer
4.Auto-temperature control system; make the temperature controlling more direct viewing and the parameter more precise.
5.Self-cleaning, when stopping, it can be cleaned without disassembling
6.According to different screw design rate to Full different technology request.
7.This equipment has the wide material, muti-shape products and flexible collocations. We can produce the different products according to the different models.
Raw materials
adopts corn flour, bone meal, fish meal as raw materials
Products
different shapes are made by adjusting the dies from extruder
Capacity
150kg/h, 240kg/h, 500kg/h, 800kg/h, 1ton/h, 2t/h,3ton/h,5t/h

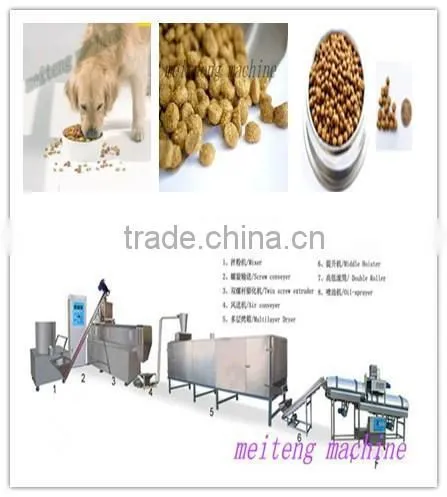

Flow Chart Of this plant
Mixer → Conveyor → Pre-conditioner → Extruder → air conveyor → Dryer → hoister →flavoring line → Packing
The pet food production line include:
1.Mixer 2.Screw 3.Double-screw extruder 4.Air conveyor 5.Dryer 6.Flavor
2. Dog food /animal food production line
Description
pet food machine uses kinds of grains powder as main materials such as soybean , fish powder, corn powder, meat powder,protein powder.
to make the pet food, like dog, cat, fish, bird food etc. with different shapes and taste by changing the dies, formulations.
The pet foods are made under high temperature condition, and popular to the pet food market.
Flow chart
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
Technical parameters:
Model |
Installed power |
Real power |
Output |
Dimension |
|
MT 65 |
70kw |
40kw |
100-150kg/h |
22000x1200x2200mm |
|
MT 70 |
90kw |
50kw |
200-240kg/h |
25000x1500x2200mm |
|
MT 85 |
120kw |
100kw |
400-500kg/h |
30000x3500x4300mm |
|
MT 90 |
135kw |
100kw |
800-1000kg/h |
30000x3500x4300mm |
|
MT 95 |
165kw |
115kw |
1000-2000kg/h |
30000x3500x4300mm |
Voltage
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...). Machines Materials
All the Animal food machines are made by stainless steel, this whole line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function
Packaging & Shipping
use wooden box for packing and shipping
Our Services
when our machinery arrived at your factory ,our engineer will going to your factory for instillation and teach .
Company Information
we MT machinery&equipment CO.,LTD is a manufactory professional do the corn flakes machinery processing line ,we have good engineer ,have many years installation experience ,can help our customer do the good quality product .
FAQ
we accept TT ,LC at sight payment term .
