PVC Plastic pipe machine price
Application:
PVC pipe is widely used in building water supply and drainage system, irrigation, electric conduit, air exhaust pipe and so on.
PVC Plastic pipe machine produces PVC pipe which diameter is from 16mm~630mm. It can produce pipe in different thickness by changing the type of machine and mould.
The production line is composed by Conical twin screw extruder, Pipe mould, Vacuum calibrator, Cooling tank, Printer, Haul-off machine, Cutter, Stacker, Belling machine and so on.
Features:
1. It adopts conical twin screw extruder for high extrusion pressure and good effect of plasticizing.
2. Reliable temperature control system ensures the high quality pipes.
3. Adopt PLC control for easy operation.
4. Low consumption, high output, stable running.
5. Auxiliary equipments also can be chosen: Pipe crusher, PVC milling machine, Mixer, Pulverizer etc.
Paramete of PVC Plastic pipe machine
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
Diameter 16-63 |
Diameter 16-110 |
Diameter 32-160 |
Diameter 63-250 |
Diameter 160-400 |
Diameter 315-630 |
Diameter 450-800 |
| Diameter of pipe(mn) | 16-63 | 16-110 | 32-160 | -250 | 160-400 | 315-630 | 450-800 |
| Claw number of haul off | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| Hauling force(KN) | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| Haul off speed(m/min) | 10 | 8 | 6 | 5 | 4 | 2 | 2 |
| Total power of down stream(KW) | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Extruder of PVC Plastic pipe machine
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw diameterz(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw speed(rpm) | 45.5 | 30 | 30 | 34.7 | 36.9 | 32.9 |
| Screw length(mm) | 989 | 1100 | 1200 | 1440 | 1800 | 2500 |
| Motor power(KW) | 15 | 18.5 | 22 | 37 | 55 | 110 |
| Heating power(KW) | 12 | 16 | 18 | 24 | 36 | 86 |
| Capacity(kg/h) | 40-60 | 60-100 | 80-140 | 160-300 | 220-450 | 400-600 |
| Weight(kg) | 2800 | 3200 | 3500 | 4000 | 5000 | 10000 |

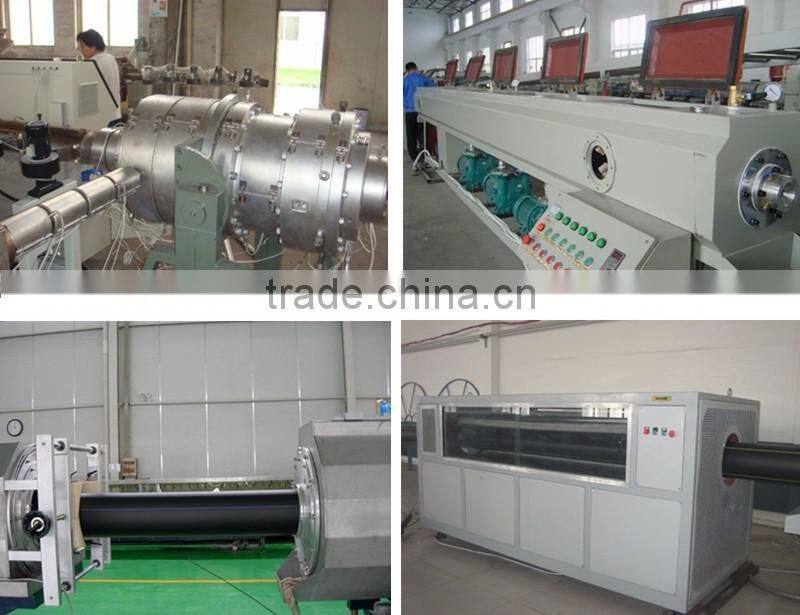

PVC Plastic pipe machine picture:

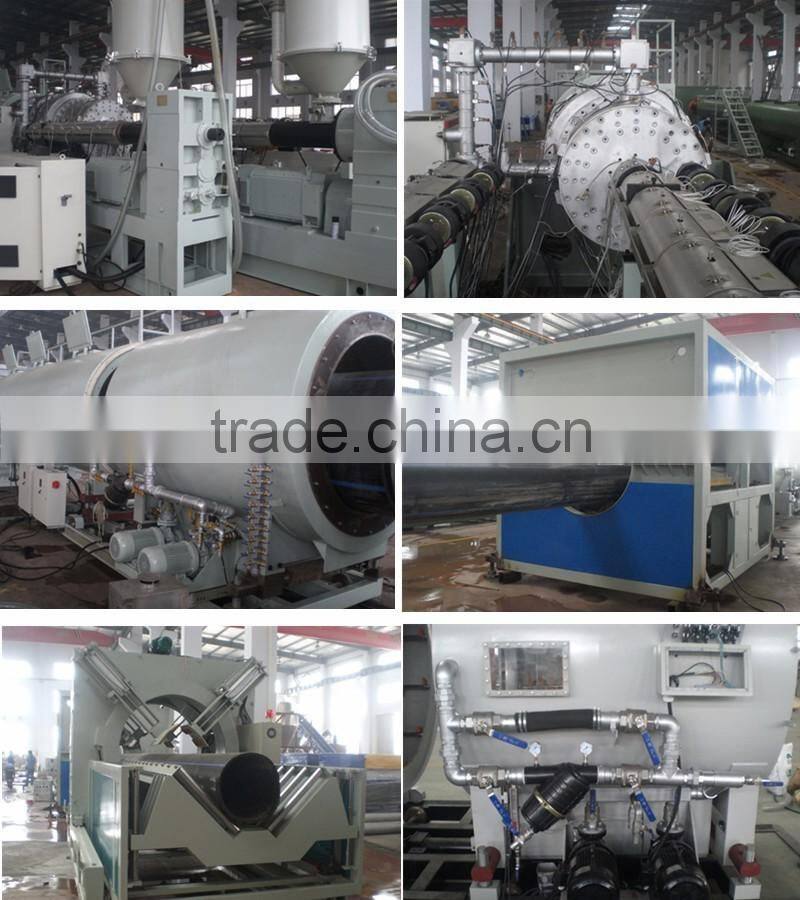

PE Plastic pipe machine pictures:
Certificate
For different range of plastic Pipe, the production line is different.
For more details, Welcome to contact us.
