Home > Products > glass cutting machine > Automatic Tempered Glass Cutting Table Machine
Automatic Tempered Glass Cutting Table Machine
- 1 Set / Sets per Month
- Tianjin Port
- T/T
Product Details
Condition: | New | Machine Type: | Glass Cutting Machine | Production Capacity: | 160m/min |
Brand Name: | SAGERTEC | Model Number: | ST37-26 | ||
Voltage: | 3 phases, 380v, 50Hz or as per your requirements | Power(W): | 10kw | Dimension(L*W*H): | 4250*2850*900mm |
Weight: | 2200kg | Certification: | CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

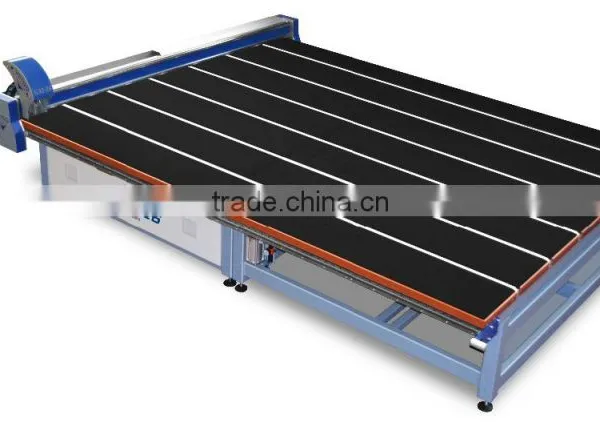

Automatic Tempered Glass Cutting Table Machine
Maximum size :3700 x 2600 mm
Maximum thickness: 2 - 19 mm
Cutting speed: 160 m/min
Cutting Tolerance: +/- 0.15 mm
Power:10kw
Weight:2200kg
Adjustment:890-960mm
Dimention:4250*2850*900mm
Softh Low-e removal system Optional Included
Glass sculpture film cutting-Vinil Optional Included
Label Printer on PC cabinet Optional Included
Sliding systems:
1.Sliding systems of the bridge are made with a pinion-rack system. The racks and the pinions are tempered and refaced.
They have a ± 0.02 mm tolerance with 1.20 mt (47.24 in) length. The teeth racks are turned towards low.
One pinion are placed on the two sides of the bridge (two in all), to keep always perpendicular the bridge to
the cutting table during the acceleration and deceleration phases.
2.On Two side of the table is applied one linear guide and one rack, to obtain a overall bridge stability during the cutting cycle.
Hydraulic tilting systems:
1.Hydraulic with 2 cylinders with anti-fall safety valves. A valve splits the oil flow up on the hydraulic power cabinet,
to guarantee a long duration of the simultaneousness of going up and down of the pistons.
This avoids shakes and vibrations of the work surface through the time.
Cutting bridge:
1.The cutting bridge is made in rigid Steel. The whole system is very stable and insensitive to temperature
changes, assuring a minimum wear and tear.
2.Cut trolley Made in aluminium. The cutting head is made with special machines with hundredth tolerances.
Going up and down system of the cutting head is guided by a system with re-circulation of ball-bearings,
to reduce the friction as much as possible and guarantee the cutting head reply to glass sinkings.
Glass sheet squaring:
1) The alignment of glass sheet is automatic trought laser 3Directions.
2) Work surface Made in very hard wood, covered with woollen felt of high density and compactness, 4 mm thick (0.157 in).
Laser scanning (Optional Included):
3) Laser System for copying of the shapes, of any material, with double control of the correct survey of the points.
Performance:
4) Maximum speed of the bridge and cutting head 160 m/min
5) Max. acceleration 0.8 sec. from 0 to max. speed
6) Max. deceleration 0.8 sec. From max. speed to 0
Accuracy:
7) Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in)
8) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting).
9) User interface:
10) On a Multitasking systems, control of three interpolated axles, easy-to-use,
with icons and buttons of the relevant command, with Computer WiFi and 21" Touch Screen.
11) Optimisation program:
12) Optimization software PerfectCut
13) Included a 250 parametric shapes library, import/export data.

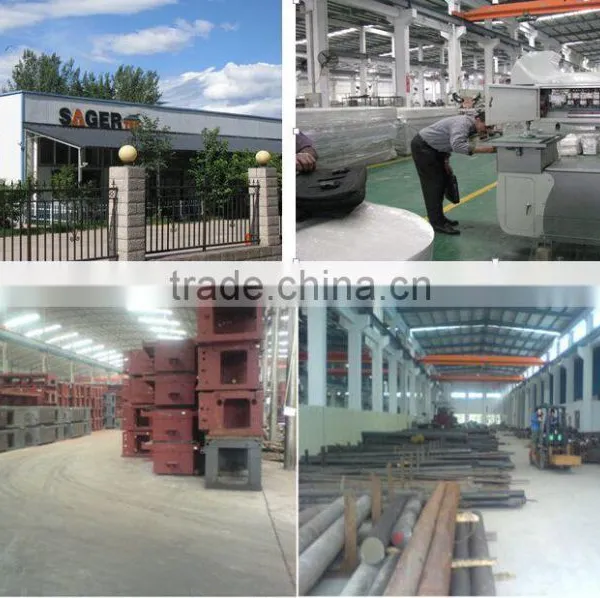

Established in 2008, Sager Tech.is a professional designer and manufacturer for machinery, which is
specialized in glass industry. We are located in Beijing, with convenient transportation access. All of our
machine comply with CE regulation and are greatly appreciated in a variety of different markets all over the world.
At initially, Sager was devoted to design and produce glass laminating equipment as long as provide
the solution to work for laminating glass. With a fast development, Sager was starting up the project
for new glass processing machine by optimized cooperation and source integration. Now, our products
range is increased, which include completed PVB-EVA laminating production line, laminating furnace
and material, all the type of grinding machine, washing machine, drilling machine as well as sandblasting machine.
As a result of our high quality products and outstanding customer service, we have gained a global sales
network reaching USA, Europe, Australia, South America etc.
Our business philosophy is TECHNOLOGY RENOVATION, COST CONTAINMENT, QUALITY CONTROL and SATISFACTORY AFTER-SALE SERVICE. Being provide qualified and advanced products for our clients in glass industry is our mission.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us.
We are looking forward to forming successful business relationships with clients around the world in the near future.
