High Pressure Agriculture Farm Using Diesel Irrigation Water Pumps
- 1000 Bag / Bags per Month
- Qingdao/Guangzhou
- T/T
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 24 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 12 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 16 In 1 Led Outdoor Lighting Street Light Lens
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 12 In 1 Led Outdoor Lighting Street Light Lens
- IP65 Waterproof 100W 150W 200W Split Solar Outdoor Street Light
- Hongzhu 50X50mm Outdoor Light Lens 5050 PC 8 In 1 Led Outdoor Lighting Street Light Lens
Product Details
Place of Origin: | China | Brand Name: | NORTHHUSBANDRY | Model Number: | Street Lights |
Power Supply: | Solar | Application: | Highway | Lampshade Material: | Toughened Glass |
Product Description

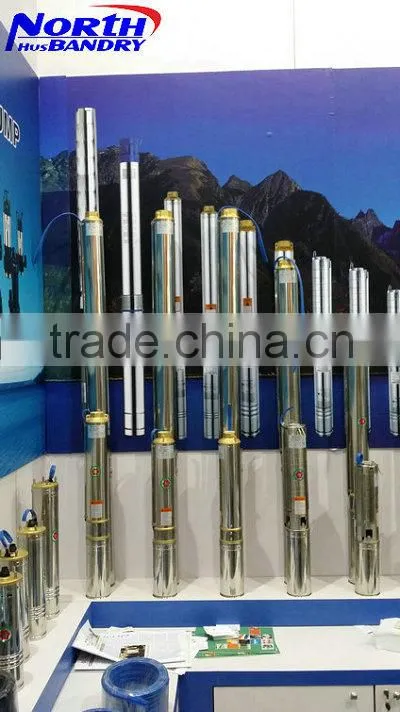

High Pressure Agriculture Farm Using Diesel Irrigation Water Pumps

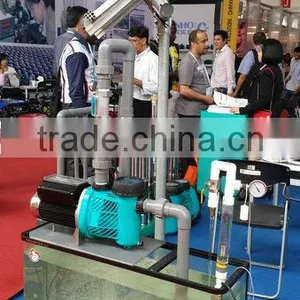

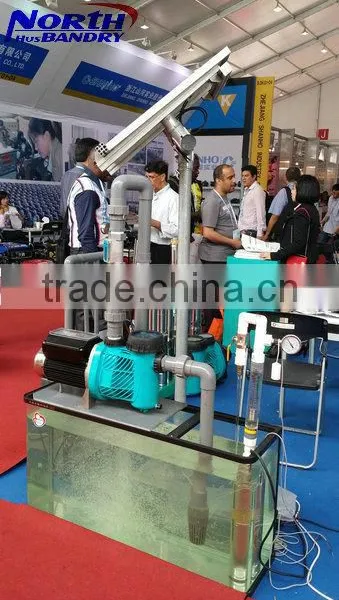

Welcome to Dubai poultry Livestock Show-S3F10 (2016 AGRE Me)
Agricultural water pump
AC water pump:
Power: 15kW
Voltage: 3-phase 380V AC, 50Hz

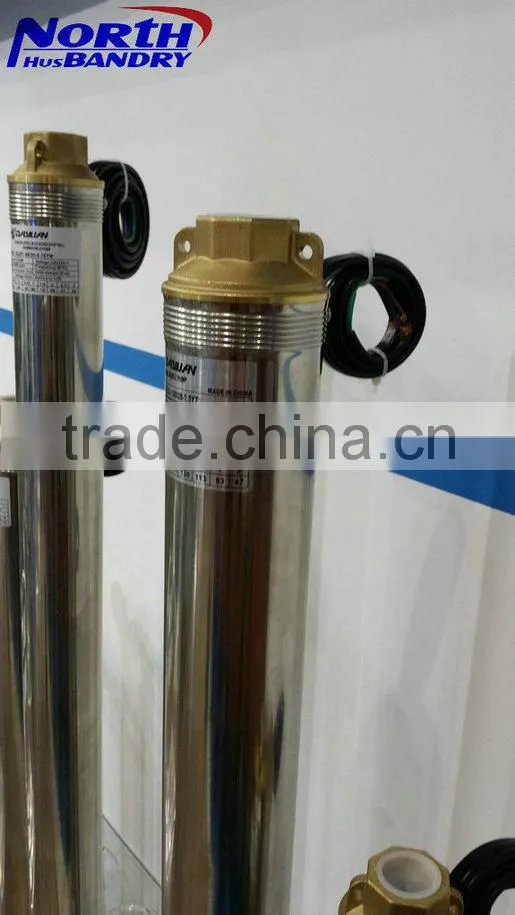

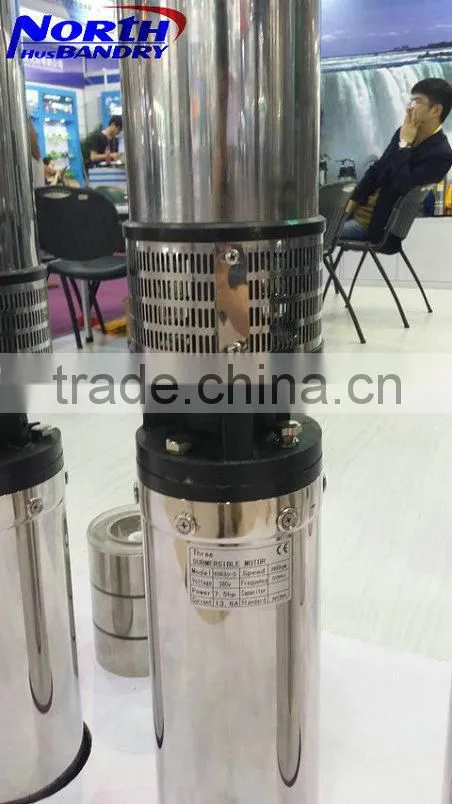

Type: multi-stage centrifugal submersible pump
Series: water cooling and reinforced motor suitable for solar power
Max flow: 70m3/hour
Max head: 276m
Outlet: 1.25/1.5/2/2.5/ 3/4 inches
NEMA standard: 96mm
Diving depth: ≤50m
Materials:
Water outlet: 304 stainless steel
Impeller: 304 stainless steel
Pump body: 304 stainless steel
Motor casing: 304 stainless steel
Motor shaft: 304 stainless steel
Screw: 304 stainless steel
Upper guide bearing, thrust bearing base: cast iron, can be updated to be stainless steel with extra cost if needed
Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
Max average daily water supply: 400m³@ 5.5KWh/m²/day
Warranty: 18 months, extend to 2-year warranty optional with extra cost
Advantages:up to 15yrs lifespan, working is reliable and stable
Controller and inverter:
Power: 22KW
Input voltage: 330-710V
Output voltage: AC, 3-phase 380V
MPPT voltage:450-600V
Max MPPT efficiency: ≥97%,soft start/stop
Warranty: 2-year, extend to 3-year warranty optional with extra cost
Protections:
Over current, voltage, speed, temperature
Reverse polarity
Dry water/phase failure protection
Advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop
Solar panel reference:
Power: mono/poly, totally about 21kW
Positive tolerance: +0/5W
Products warranty: 10 years
Performance warranty: 90%/10 years, 80%/25 years

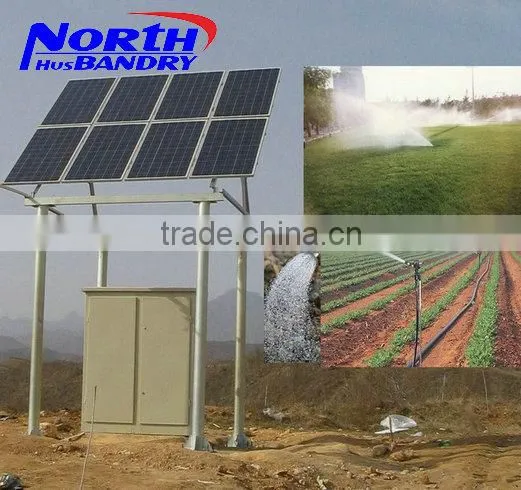

Mounting system:
Type: fixed mode/pillar manual tracking/slanting uniaxial tracking
Foundation: concrete pouring
Installation type: 6 pieces/array and vertical
Warranty: 5 years
Material: hot-dip galvanized
Combiner box: N/A

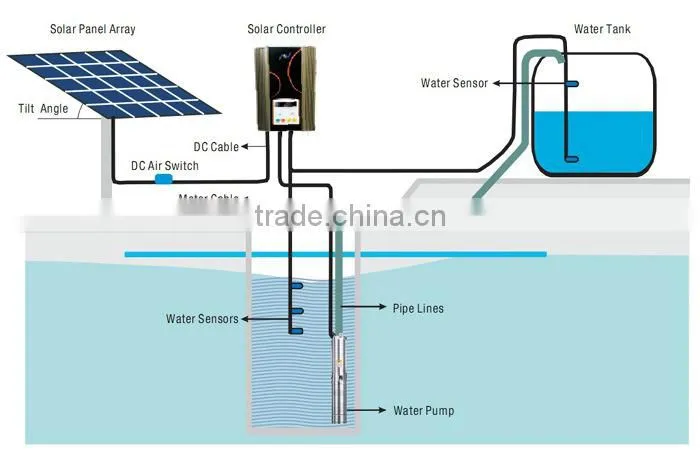

Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe
The quantity of accessory materials are based on actual design.
Applications:

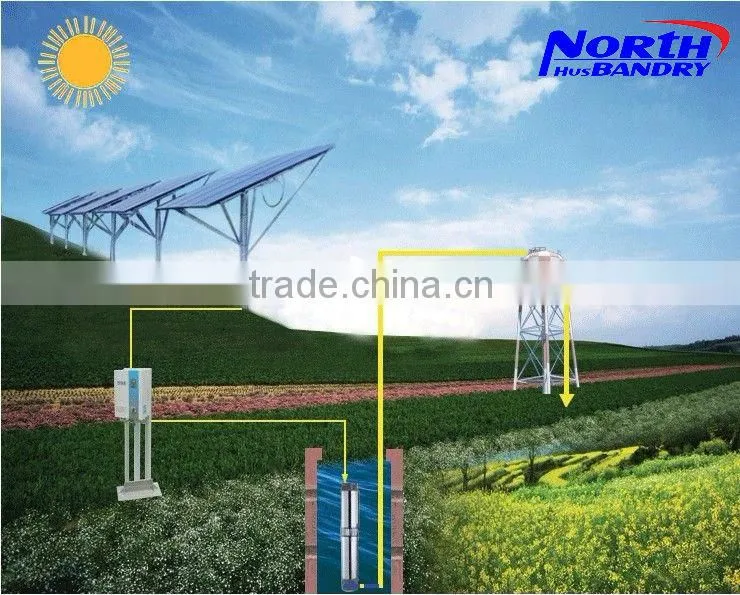

Ecological irrigation
Solar drought control
Solar living water supply

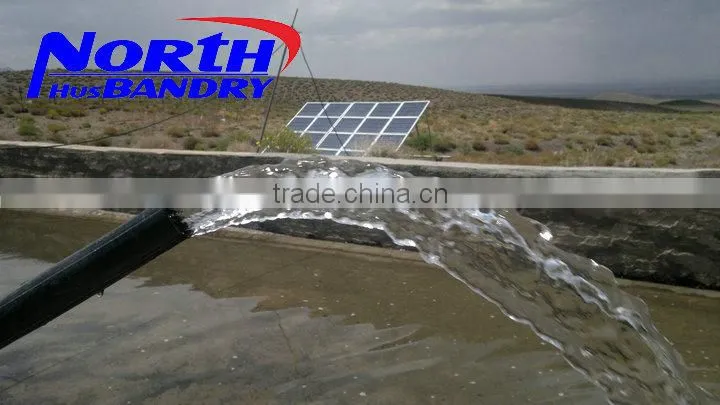

Agriculture irrigation
Solar desert control
Solar seawater desalination system
Solar city water landscape
Pasture irrigation
Environment and Ventilation
1. Evaporative Cooling Pad |
2. Centrifugal Shutter Exhaust Fan |
3. Drop Hammer Ventilation Fan |
4. Hanging Exhaust Fan |
5. Butterfly Cone Fan |
6. Coal Burning Steam Boiler Heater |
7. Fuel Oil Heater |
8. Environmental Control System |
Poultry Raising Equipment
9. Broiler Cage System |
10.Pan Feeding System |
11.Breeder Chain Feeding System |
12.Breeder Pan Feeding System |
13.Nipple Drinking System |
14.Pig Feeding System |
15.Foggy System |
16.Environmental Control System |
Solar Energy Power
17.Solar Street Lights |
18.Solar Insecticidal System |
19.Solar Photovoltaic Pump |
20.Automatic Control System |
Greenhouse Parts
21.Automatic Control System |
Water Treatment
22.Livestock and Poultry Farm |
Q: What voltages you can do , if you can make special voltages ?
A: Normal standard is 380V for 3phase, 220V for singple.The voltage and herz can be customized as your requirement.For example,400V,240V,60Hz.
Q: How long is the warranty?
A: One year. Brokens parts can be provided free of charge during this period.We use good materials and motors,the fans are hardly broken.
Q: What is the MOQ , can I order a sample for test?
A: MOQ is 10sets, it's for convienence to arrange products. If you need sample for test ,then order large quantity, 1 set for sample is ok,too.
Q: Are you real manufacturer or ..?
A: Yes, we are 100% original manufactuer of exhaust fan.Our factory located at Qingzhou city,Shandong province.Welcome to visit us.As a manufacturer, we have strict control of the material purchase and productions quality. Make sure the goods delivery to you are unwounded and perfect.
Q: How can I pay?
A: We accept TT(Telegraphic transfer) and L/C(Sight letter of credit).30% deposit is needed for TT payment.Balance against the copy of B/L(bill of lading)
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products , it's all by your request
