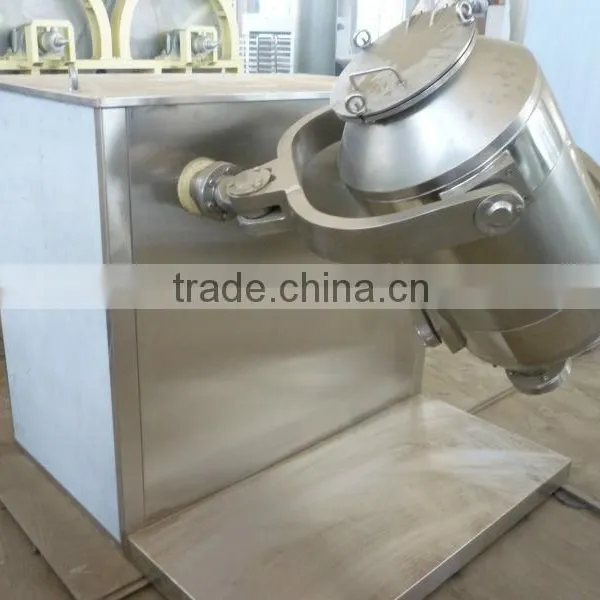

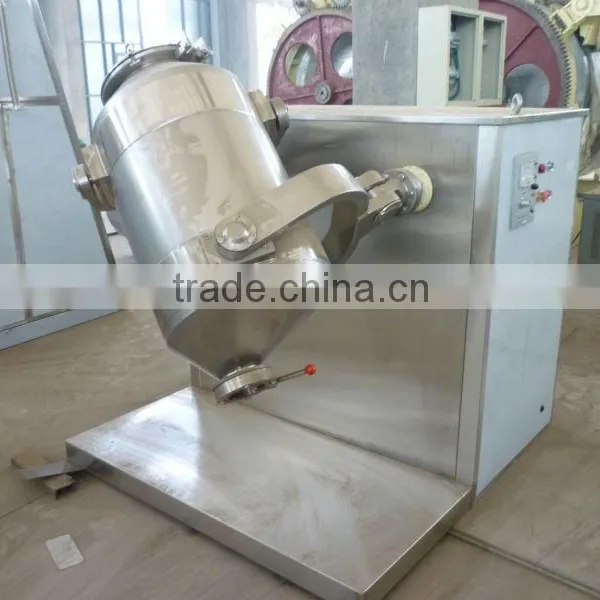

SYH Series 3 D Motion Mixer
WORKING PRINCIPLE
The mixer body will parallel moving, rotating, and rolling with the driving of main shaft, and the materials will reacts 3 D motions (circle, radial and axial direction) along the wall to realize the mutual flow, diffusion, accumulation and adulteration of multiple kinds of materials.
APPLICATION
- The mixing barrel of the machine moves in multi-direction to avoid centrifugal force, specific gravity segregation, and lamination. The mixing rate is up to 100% and it is the desired product in various mixers at present.
- The maximum material loading rate can be up to 90 %( 50% for common mixers).It is a high efficiency and rapid mixing mixer.
- The barrel uses the curve connection and fine polish treatment.
- The machine is widely used for high uniformity mixing of powder and granule materials in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, and nation defense industries, as well as for science and technology institutes.
TECHNICALPARAMETERS
Model |
SYH-5 |
SYH-15 |
SYH-50 |
SYH-100 |
SYH-200 |
SYH-400 |
SYH-600 |
SYH-800 |
SYH-1000 |
SYH-1200 |
SYH-1500 |
SYH-2000 |
Volume (L) |
5 |
15 |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
1500 |
2000 |
Max. Loading Volume(L) |
4.5 |
13.5 |
45 |
90 |
180 |
360 |
540 |
720 |
900 |
1080 |
1350 |
1800 |
|
Max. Loading Weight (kg) |
1.5-2.7 |
4-8.1 |
15-27 |
30-54 |
50-108 |
100-216 |
150-324 |
200-432 |
250-540 |
300-648 |
400-810 |
500-1080 |
Revolution (r/min) |
0-20 |
0-20 |
0-20 |
0-20 |
0-15 |
0-15 |
0-13 |
0-10 |
0-10 |
0-9 |
0-9 |
0-8 |
Power(kw) |
0.25 |
0.37 |
1.1 |
1.5 |
2.5 |
4 |
5.5 |
7.5 |
11 |
11 |
15 |
18.5 |

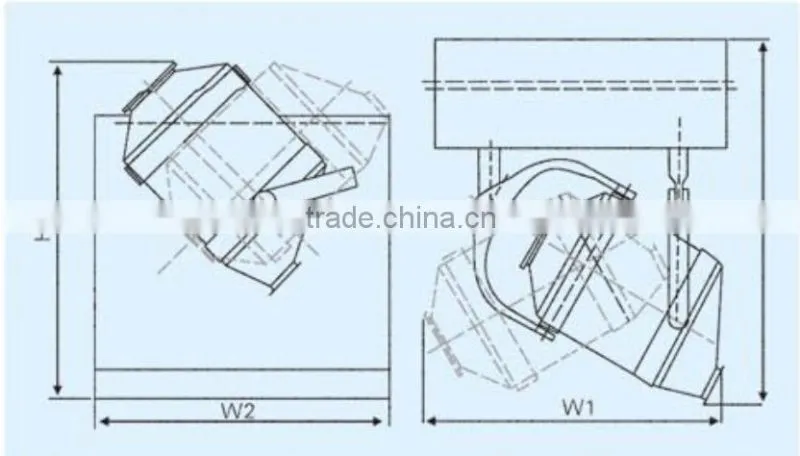

Overall Dimension(mm) |
600 |
800 ×1200 |
1150 ×1400 |
1250 ×1800 |
1450 ×2000 |
1650 ×2200 |
1850 ×2500 |
2100 ×2650 |
2150 ×2800 |
2000 ×3000 |
2300 ×3200 |
2500 ×3500 |
Weight(kg) |
100 |
200 |
300 |
800 |
1200 |
1200 |
1500 |
1700 |
1800 |
2000 |
2400 |
3000 |
Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.
