Specifications
coarse filter cotton for spray booth1,thickness :15-20mm
2,weight :180-200g/m2
3,stardand size :1*20m,2*20m
4,:white&bule

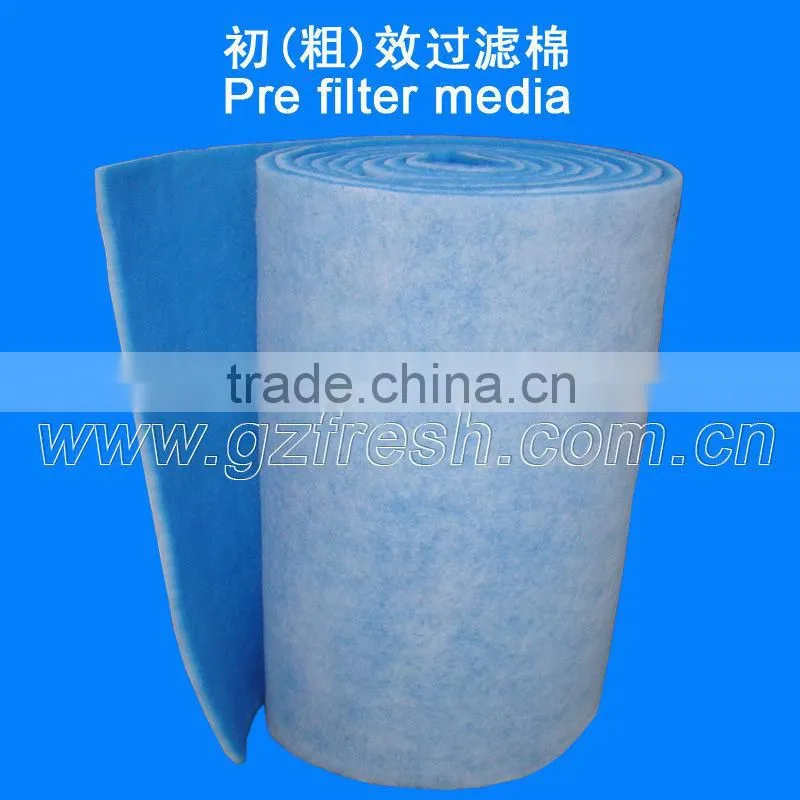

FRS-30 coarse filter cotton for spray booth (manufacture)
Feature
·Washable and reusable
·Low initial resistance
·Large dust holding capacity
·Flexible
·Economical and practical

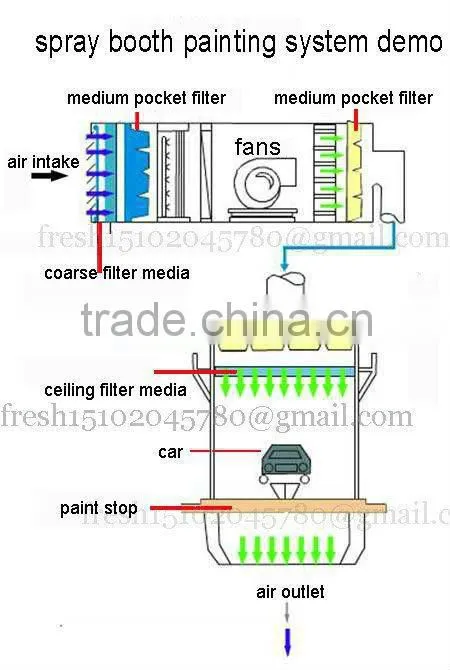

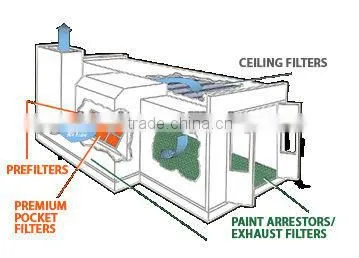

Application:
≥5μm, Filter dust , (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program
Data sheet
Type: supply pads or rolls size
Media: synthetic fiber with gradual density, inlet side is blue.
Washable: about 4-5 times
EN779 class: G3
Average arrestance:88%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 150Pa-250Pa
Max. Dust holding capacity: 520g/S.qm
Temperature resistance: 100°C
Specification
Type |
Dimensions |
Rated air velocity(m/s) |
Initial pressure drop (Pa) |
Rated air flow(m2/h) |
||
Length(m) |
Width(m) |
Thickness(mm) |
||||
Rolls |
20 |
1/2 |
15 ± 2 |
1.5 |
20 |
5400 |
Special sizes available upon request
production process

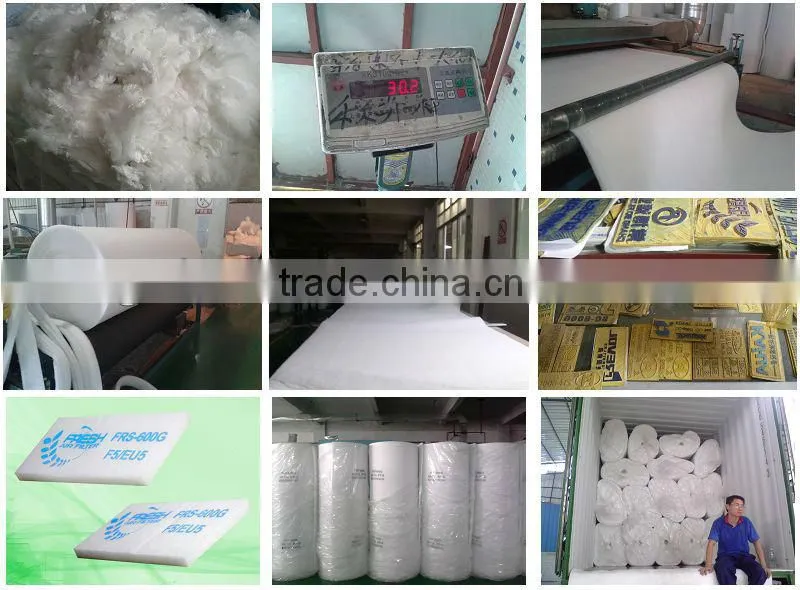

Our factory
