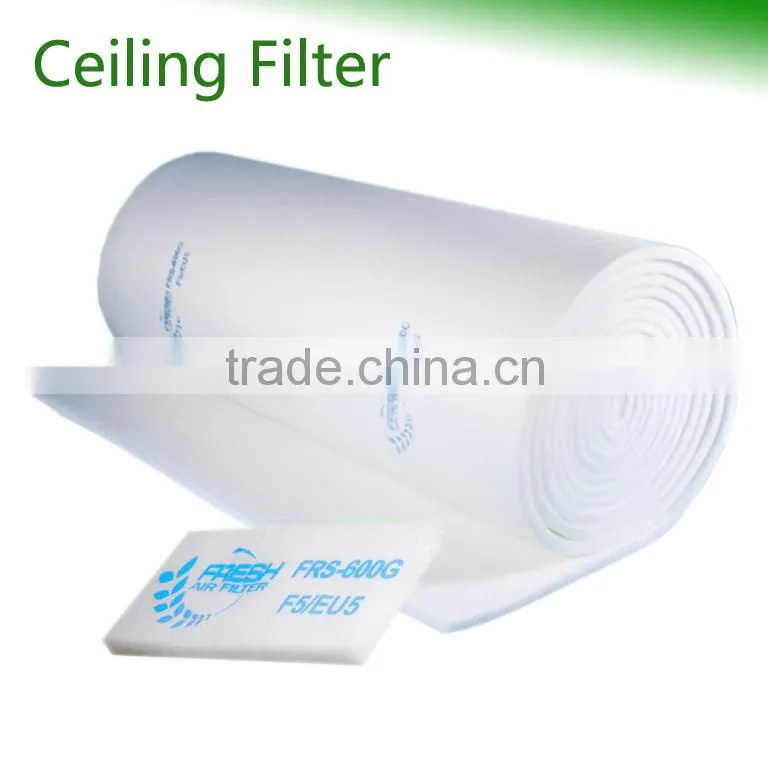

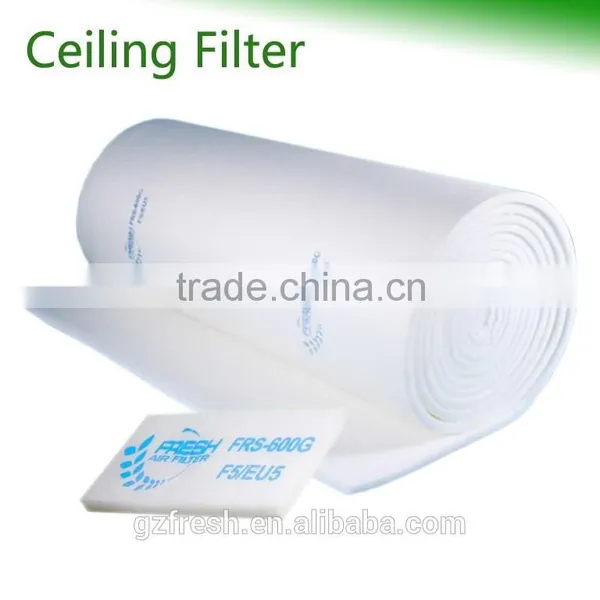

F5/EU5 600G Ceiling Filter Material (Guangzhou)
Specification:
Type |
Dimensions |
Rated air velocity(m/s) |
Initial pressure drop (Pa) |
Rated air flow(m2/h) |
||
Length(m) |
Width(m) |
Thickness(mm) |
||||
Rolls |
14/21 |
1.6/2 |
22 |
0.30 |
38 |
1080 |
Advantage:
·Low initial resistance
·Large dust holding capacity
·Flexible

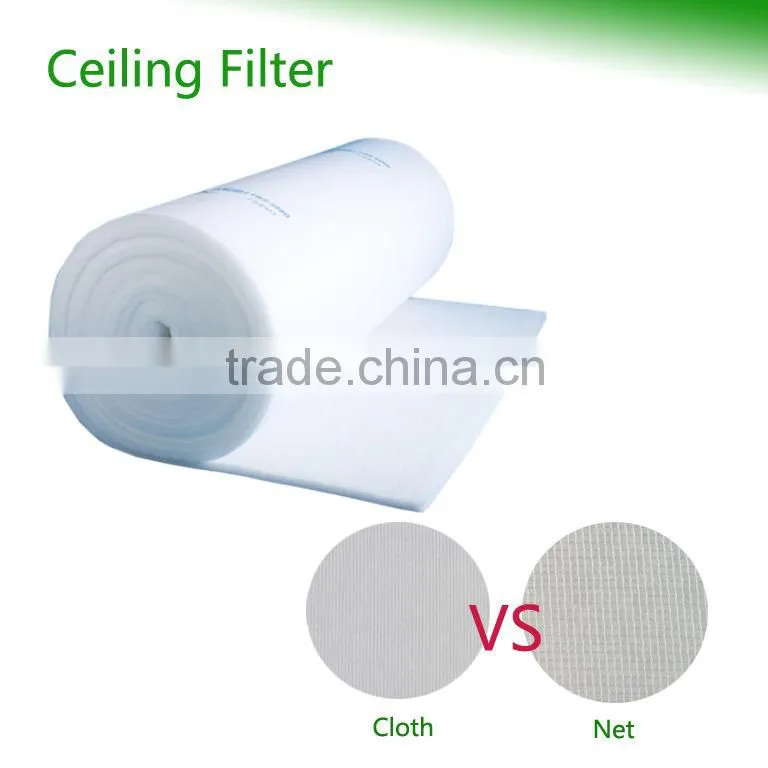

·Outlet side with net or cloth
Application: capturing to particles, especially for the top part of spray booth, prefiltration through air filter program, diffluent equally

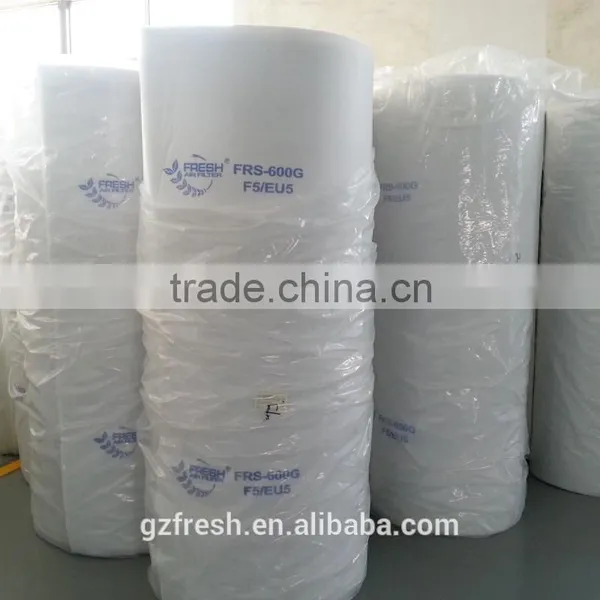

Type: supply pads or rolls size

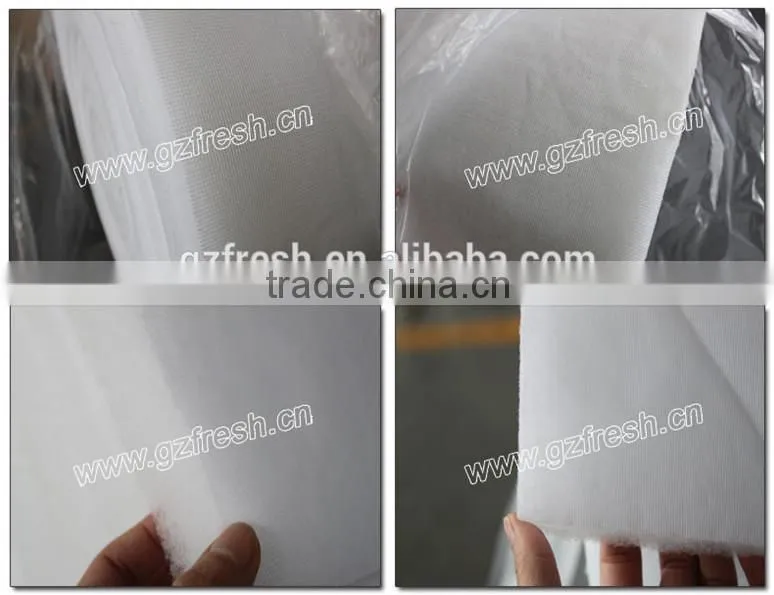

Media: synthetic fiber with gradual density, full imregnated with adhesive treatment
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400Pa
Temperature resistance: 100℃
Instant temperature: ≤120℃
Product Detail:
