Help CenterFRS-560g Synthetic Ceiling Filter (factory )
Related Products
-
FRS-600G FRESH EU5/F5 Spraybooth Ceiling Filters (chinese Factory )NegotiableMOQ: 336 Square Meters -
FRS-600G FRESH EU5/F5 Spray Booth Filters(factory)NegotiableMOQ: 336 Square Meters
-
FRESH F5 Air Filter Roll for Car Spraybooth (OEM Available)US$ 0.1 - 10MOQ: 500 Square Meters
-
FRESH Spray Booth Synthetic Ceiling Air Filter China ManufactureNegotiableMOQ: 20 Rolls
-
Thin Air Filter Material, Bulk Air Filter Material, Paint Spray Booth FilterNegotiableMOQ: 336 Square Meters

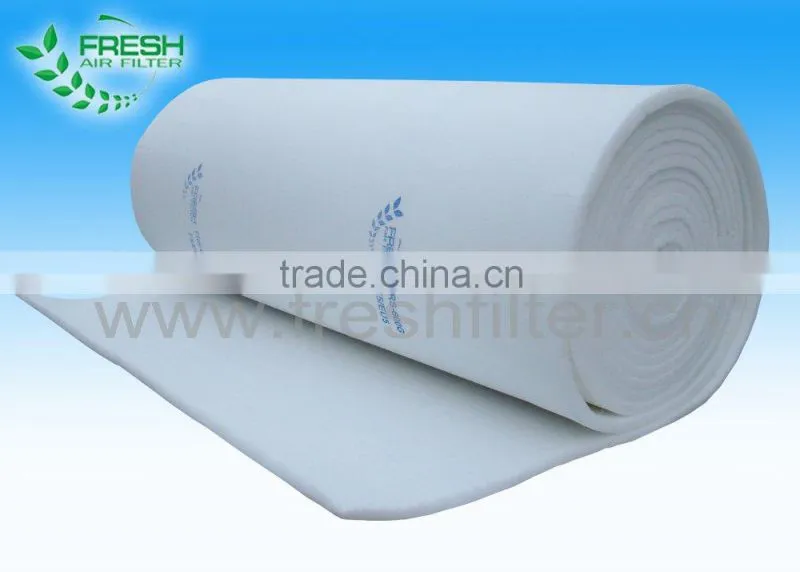

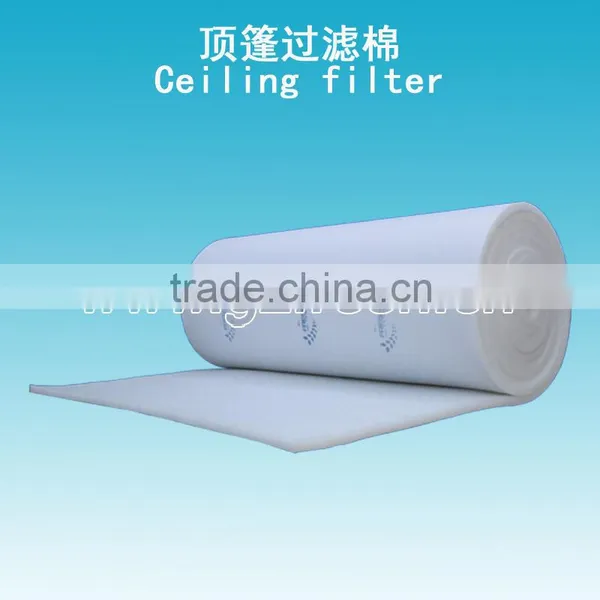

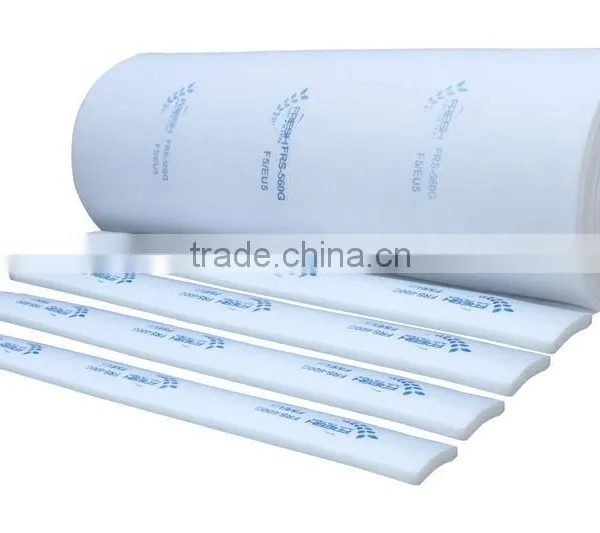

FRS-560g synthetic ceiling filter (manufacture) (Weight:400g/m2)
Application:
Capturing 1-10μm particles,especially for the top part of spray booth,

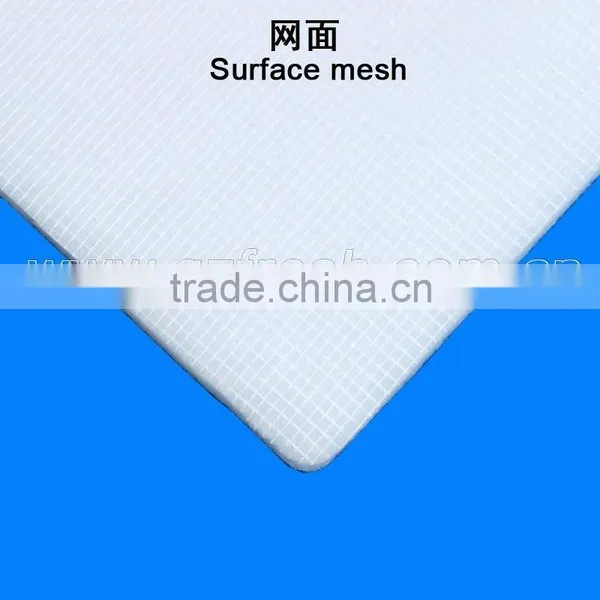

prefiltration mesh to reinforce through air filter system, diffluent equally

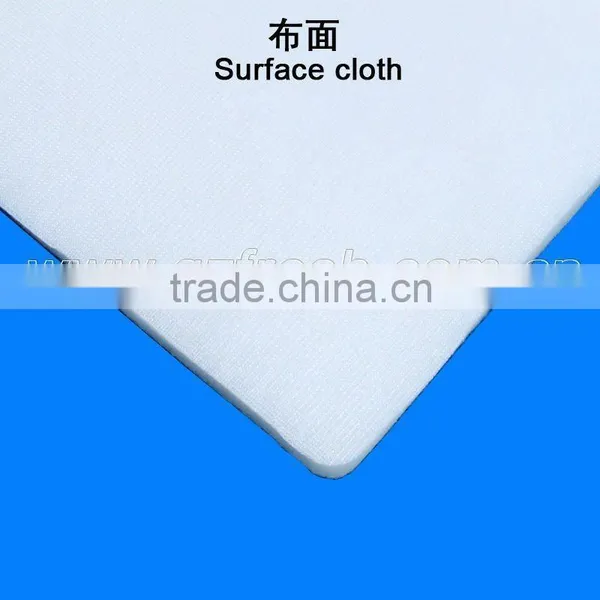

Media: synthetic fiber with progresive density,surface of inlet side with adhesive treatment
Parameters:
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400Pa
Max. Dust holding capacity: 450g/sqm
Temperature resistance: 100°C
Instant temperature: ≤120°C
Type |
Dimensions |
Rated air velocity(m/s) |
Initial pressure drop (Pa) |
Rated air flow(sqm/h) |
||
Length(m) |
Width(m) |
Thickness(mm) |
||||
Rolls |
14/21 |
1.6/2 |
22 |
0.30 |
38 |
1080 |
FRS-600G Ceiling filter,spray booth roll filter media(Weight:600g/m2)
Type |
Dimensions |
Rated air velocity(m/s) |
Initial pressure drop (Pa) |
Rated air flow(sqm/h) |
||
Length(m) |
Width(m) |
Thickness(mm) |
||||
Rolls |
14/21 |
1.6/2 |
22 |
0.25 |
40 |
900 |
Send Inquiry to This Supplier
