Specifications
1.Construction: Box Filter2.Filtration Grade: Hepa Filter
3.Efficiency: High efficiency
4.Outside size:610*610*280
Fan filter unit (FFU) China Supplier (Factory Price)
·High energy saving ability, with adjustable air speed, low operating cost
·Special air passage design, low noise, uniform air speed
·Light weight, easy to install

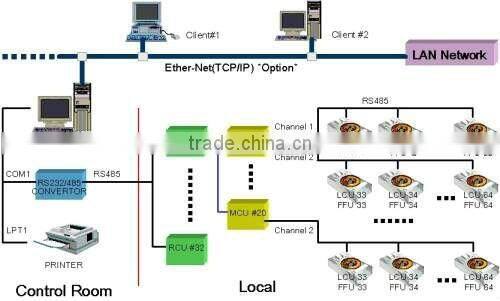

·Adopting Computer remote control system
model |
FFU-6060 |
FFU-5757 |
FFU-60121 |
FFU-57117 |
|
outside dimension |
608*608*320 |
578*578*320 |
608*1218*320 |
578*1178*320 |
|
body material |
Cold-rolled plate, galvanized plate, aluminum, sanding or mirror stainless steel (SUS304/430) |
||||
|
Primary filter
|
size |
600*600*69 |
570*570*69 |
600*1210*69 |
570*1170*69 |
media |
Ultra-fine glass fiber |
Ultra-fine glass fiber |
Ultra-fine glass fiber |
Ultra-fine glass fiber |
|
air flow |
650cq/h |
550cq/h |
1300cq/h |
1200cq/h |
|
Surface wind speed |
0.35-0.6m/s |
0.35-0.6m/s |
0.35-0.6m/s |
0.35-0.5m/s |
|
filter efficiency |
99.99%0.3μm |
99.99%0.3μm |
99.99%0.3μm |
99.99%0.3μm |
|
Initial pressure loss |
125pa |
125pa |
125pa |
125pa |
|
prefilter |
size |
390*390*21 |
390*390*21 |
490*490*21 |
490*490*21 |
EN799 |
G3 |
G3 |
G3 |
G3 |
|
Initial pressure loss |
40pa |
40pa |
40pa |
40pa |
|
fan model |
EBM |
EBM |
EBM |
EBM |
|
power supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
The outside static pressure |
50-100Pa |
||||
Output Power |
140/150W |
||||
Adjustment and control |
No level adjustment switch, plus the power instruction and fuse current protection device |
||||
noise |
<60Decibels |
||||
|
Alternatives
|
primary filter :ULPA filter |
||||
Material outside the body according to specific requirements or alternative work environment | |||||
Ec control system and control software | |||||
air Inlet connector | |||||
EN779 class of prefilter | |||||
